Digital time switch weekly cycle 2 channels Evolution EG203E
EAN-Nr.
3250612279920
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Complete your system
Optional accessories
-
Accessories/spare parts for time switches 1 products available
Technical characteristics
Frequency
-
Frequency50 - 60 Hz
Power
-
230 V incandescent and halogen lamp2,300 W
Functions
-
Power reserve in years5 y
-
With network synchronisationNo
-
With quartz synchronisationYes
-
Number of function channels2
Equipment
-
Accuracy per day1.50 s
-
With impulse programmeYes
-
Number of channels2
Connection
-
Type of contacts2x changeovers
-
Cross-section flexible conductor1 - 16 mm²
-
Cross-section rigid conductor1.5 - 10 mm²
Settings
-
Daily programmeNo
-
Weekly programmeYes
-
Annual programmeNo
Use conditions
-
Operating temperature-5 - 45 °C
Texts
-
Type of connectionWith screw terminals
-
FunctionKeylock by means of blocking key
Dimensions
-
Height85 mm
-
Width35 mm
-
Depth64 mm
Capacity
-
Number of modules2
Main electrical attributes
-
Minimum interval between 2 switching times1 min
Downloads
-

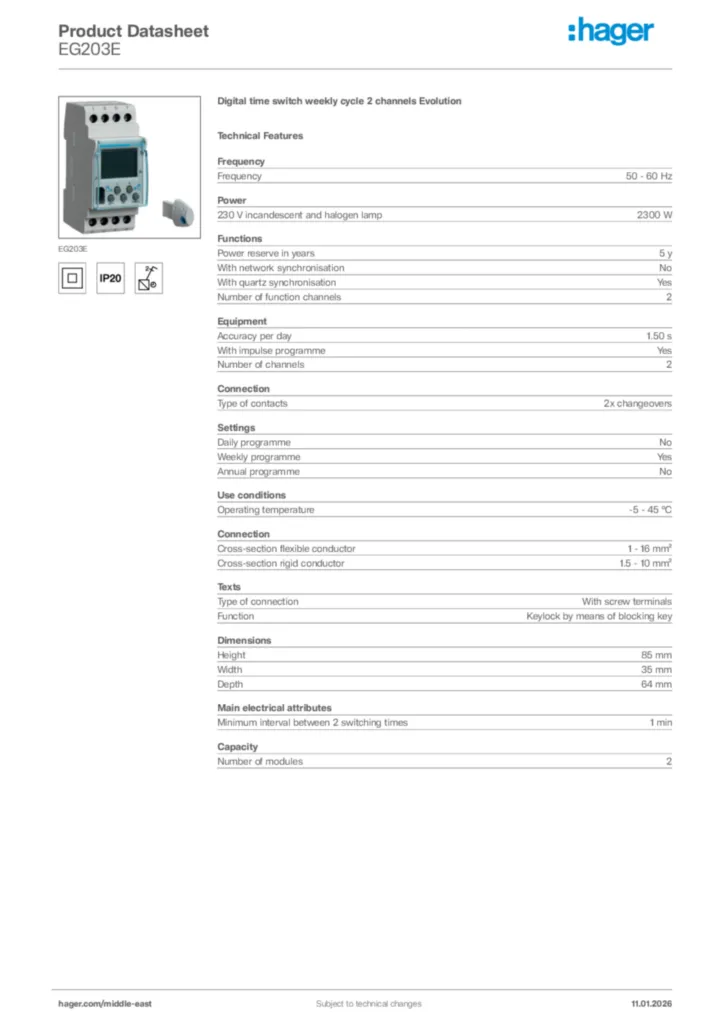

Product datasheet
Hager Product data sheet EG203E
Digital time switch weekly cycle 2 channels Evolution
PDF -
Installation manual
Installation manual en-GB, fr-FR 2020-01-01
PDF868,53 kB -
Tool
Windows software for EG003 V 2.0.2
Tool International 2023-10-30
EXE40,25 MB -

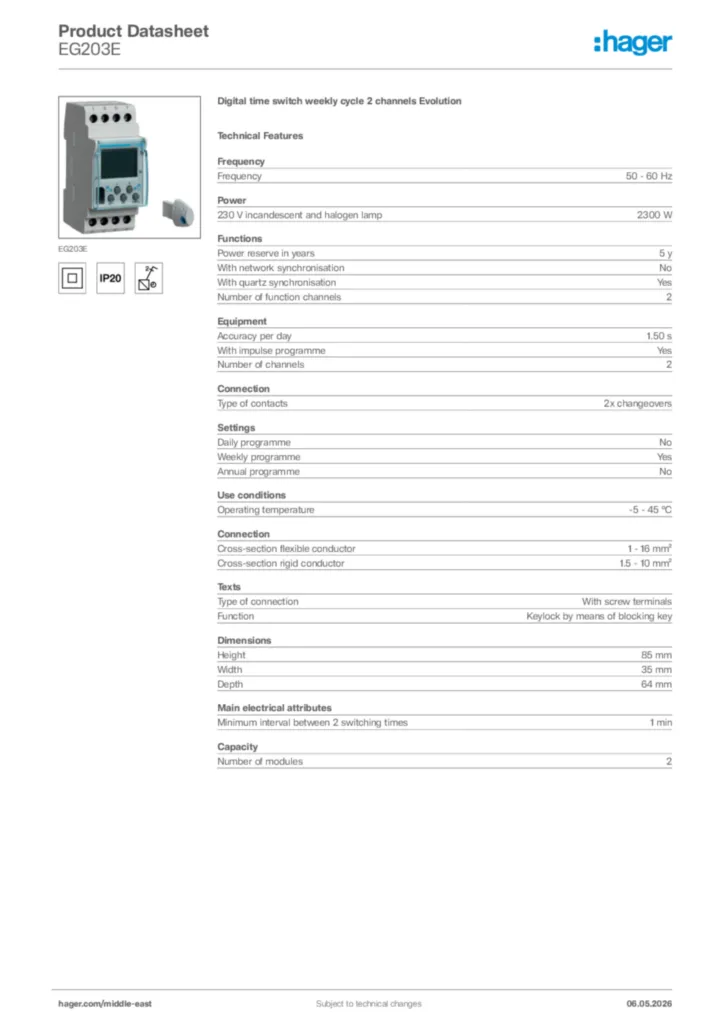

Product data sheet
UK_MD_TDS_TimeSwitches.pdf
Technical data sheet including characteristics for time switches.
PDF74,88 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2019-11-26
PDF110,33 kB
