Daily time switch 1 channel, digital, 1 module EG010
EAN-Nr.
3250612270101
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Voltage
-
Rated operational voltage Ue230 - 230 V
Frequency
-
Frequency50 - 50 Hz
Power
-
230 V incandescent and halogen lamp1,000 W
Functions
-
Power reserve in years3 y
-
With network synchronisationNo
-
With quartz synchronisationYes
-
Number of function channels1
Equipment
-
Accuracy per day60 s
-
With impulse programmeNo
-
Number of channels1
Connection
-
Type of contacts1x changeover
-
Cross-section flexible conductor1 - 4 mm²
-
Cross-section rigid conductor1 - 4 mm²
Settings
-
Daily programmeYes
-
Weekly programmeNo
-
Annual programmeNo
Use conditions
-
Operating temperature-10 - 50 °C
Texts
-
Type of connectionWith screw terminals
Dimensions
-
Height92 mm
-
Width18 mm
-
Depth64 mm
Capacity
-
Number of modules1
Main electrical attributes
-
Minimum interval between 2 switching times1 min
Downloads
-
Product datasheet

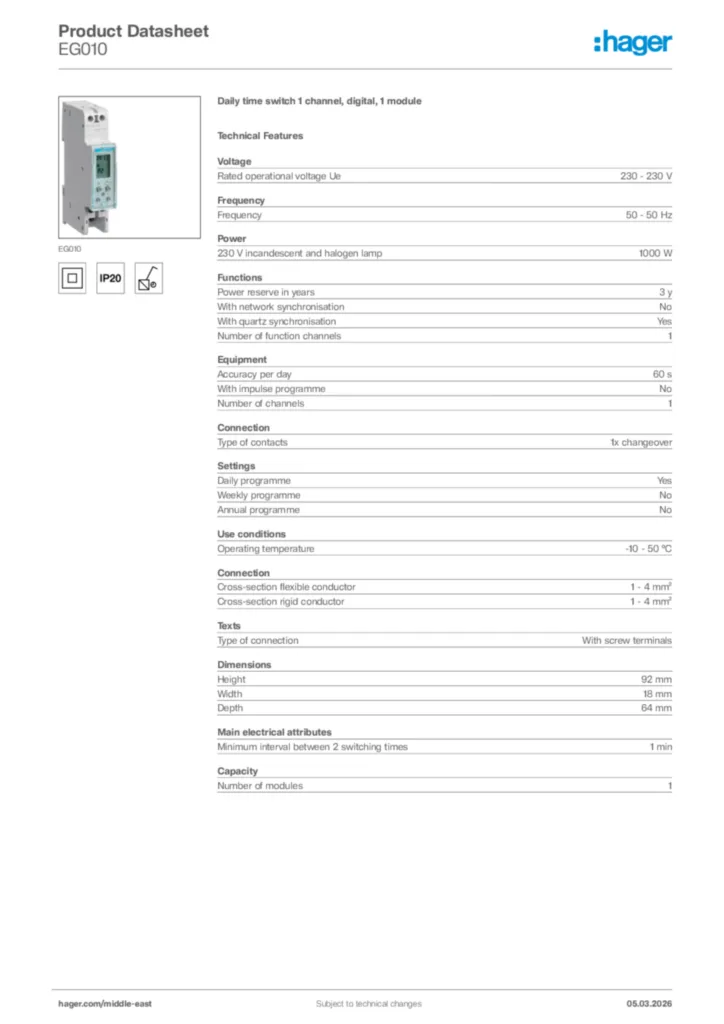

Hager Product data sheet EG010
Daily time switch 1 channel, digital, 1 module
PDF -
Installation manual
Installation manual en-GB, de-DE 2020-01-01
PDF1,27 MB
Programmateur 1 voie EG 010
Installation manual en-GB, fr-FR, de-DE, nl-NL 2020-01-01
PDF586,98 kB -
Product data sheet
UK_MD_TDS_EG010.pdf
Technical data sheet including characteristics for a EG010 Digital Time Switch.
PDF66,44 kB
UK_MD_TDS_TimeSwitches.pdf
Technical data sheet including characteristics for time switches.
PDF74,88 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2019-12-17
PDF109,56 kB
More documentation
