IP55 Motion Detector Comfort 220/360° White EE870
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for movement sensor 1 products available
Technical characteristics
Detection
-
Detection angle220 - 360
-
Type of sensorMovement detector
-
Detection angle horizontal360 - 360
Settings
-
Time delay5 S - 30 Min
-
Response sensitivity adjustableYes
-
Switch off delay time0
-
Switch on delay time0
Lighting
-
Response brightness adjustable5 - 1,000 lx
-
LED lamp power400 W
-
Photocell sensitivity5 - 1,000 lx
Connection
-
Connector/plug typePrism clamp
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Width91 mm
-
Built-in depth0
-
Recommended installation height2.50 - 2.50 m
-
Installation height2 - 4 m
Use conditions
-
Operating temperature-20 - 55 °C
Materials
-
ColourWhite
-
MaterialPlastic
-
Surface finishMatt
Safety
-
Ingress Protection (IP) classIP55
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageYes
-
Ceiling mounting possibleYes
Texts
-
FunctionPresence simulation, Can be used as a single unit, main device or extension unit
-
Type of connectionWith screw terminals
Power supply
-
Supply voltage230 V AC
Reach distance
-
Max. transmission range frontally16 m
-
Max. transmission range sideways10 m
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

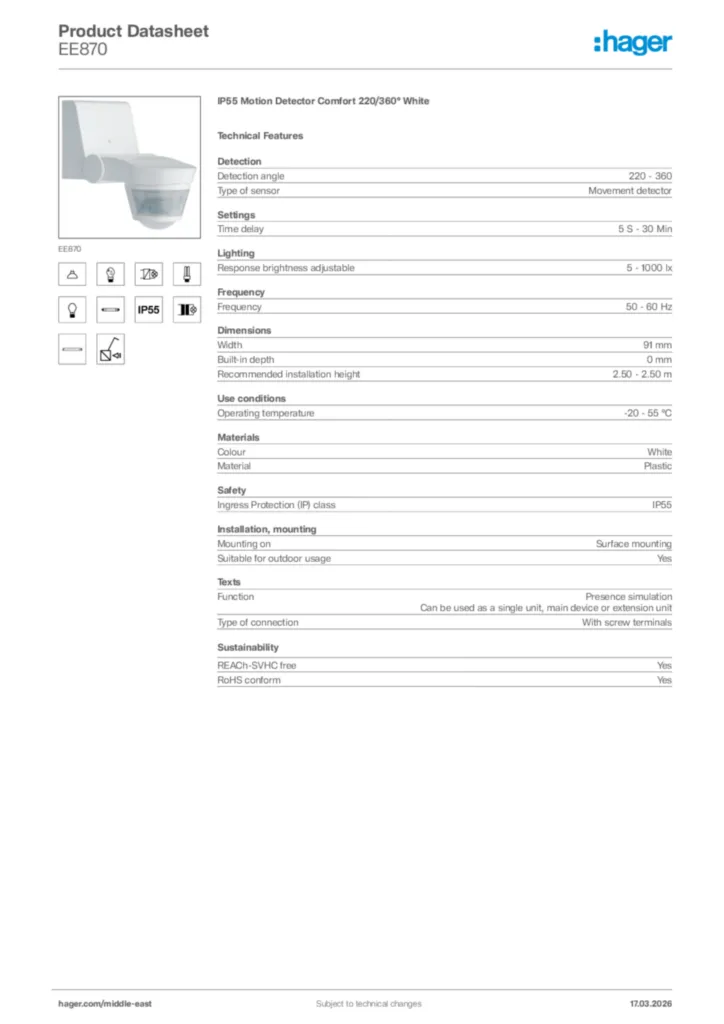

Product datasheet
Hager Product data sheet EE870
IP55 Motion Detector Comfort 220/360° White
PDF -
Installation manual
Détecteur de mouvement confort 220° 360°
Installation manual en-GB, nl-NL 2013-12-20
PDF2,98 MB
Installation manual en-GB, es-ES, fr-FR, de-DE, nl-NL, nn-NO, pt-PT, sv-SE 2017-03-14
PDF1,77 MB -
Product data sheet
Technical data sheet for motion detector comfort 220º/360º
Product data sheet en-GB 2016-10-03
PDF426,11 kB -
Declaration of conformity
*
Declaration of conformity International 2022-06-30
PDF154,33 kB
