    EAN
    3250612258109
    Packaging
    1 Piece

    Presence detector 360°, 1 channel, wall mounted, white EE810

    Phase out product: please contact your electrical wholesaler for availability

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Presence detector 360°, 1 channel, wall mounted, white

    EE810

    • Accessories
    • Technical properties
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

    • Stair­case lighting timer 1 products available

    Complete your system

    • Stair­case lighting timer
    • EMN001

      Stair case time lag switch

      €0.00  / *

    Technical properties

    Detection
    • Detection angle
      360 - 360
    • Type of sensor
      Presence detector
    • Detection angle horizontal
      360 - 360
    Settings
    • Time delay
      1 - 30 Min
    • Response sensitivity adjustable
      Yes
    Lighting
    • Response brightness adjustable
      5 - 1,200 lx
    Connection
    • Connector/plug type
      Screw terminal
    Frequency
    • Frequency
      50 - 50 Hz
    Voltage
    • Rated operational voltage Ue
      230 - 230 V
    Dimensions
    • Width
      100 mm
    • Recommended installation height
      2.5 - 3.5 m
    • Installation height
      2 - 4 m
    Power
    • 230 V incandescent and halogen lamp
      2,300 W
    Use conditions
    • Operating temperature
      0 - 45 °C
    Materials
    • Colour
      White
    • RAL code
      9010
    • Material
      Plastic
    • Surface finish
      Matt
    Safety
    • Ingress Protection (IP) class
      IP41
    Equipment
    • C load
      Yes
    Installation, mounting
    • Mounting on
      Surface mounting
    • Ceiling mounting possible
      No
    Texts
    • Function
      With communication between individual units connected in parallel (controller system formation)
    • Operating mode
      With 2 operating modes: presence detector or ceiling controller
    • Installation mode
      For ceiling mounting (also on a 60 wall box)
    Power supply
    • Supply voltage
      230 V
    Reach distance
    • Max. transmission range frontally
      7 m
    • Max. transmission range sideways
      13 m

    Downloads

    • Image EE810  | Hager

      Product Image EE810

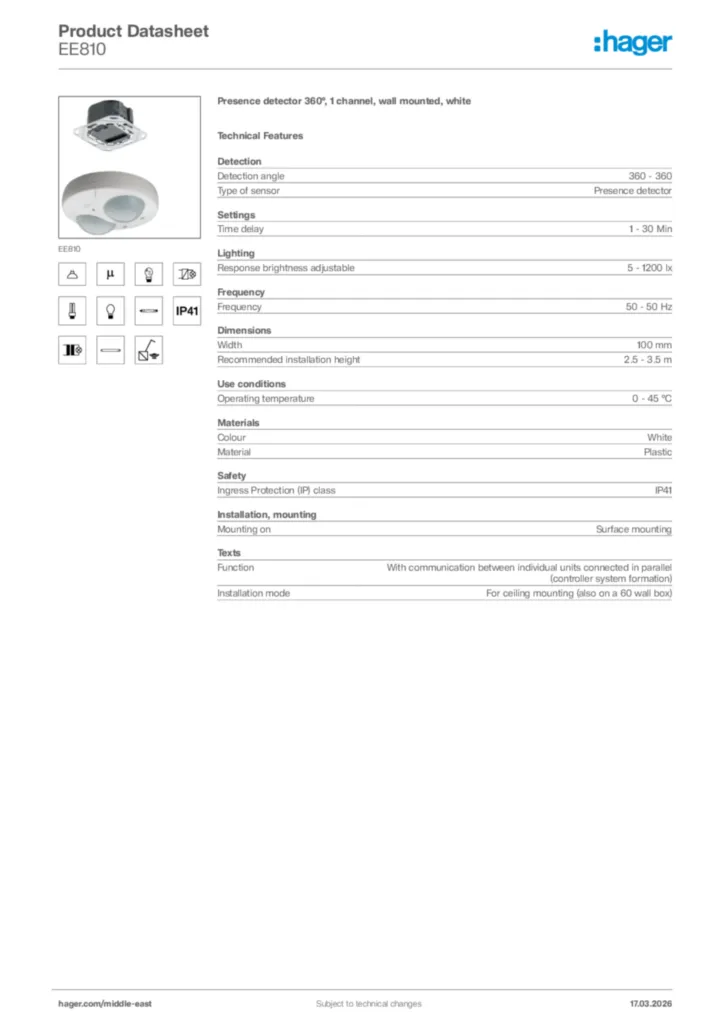

    • Product datasheet

      Image Hager Product data sheet EE810  | Hager

      Hager Product data sheet EE810

      Presence detector 360°, 1 channel, wall mounted, white

      PDF
    • Installation manual

      Image Annexe Detecteur de presence 360 deg EE810, 52366, EE811,52367 EE812, 52368  | Hager

      Annexe Detecteur de presence 360 deg EE810, 52366, EE811,52367 EE812, 52368

      Installation manual en-GB, es-ES, fr-FR, de-DE, nl-NL, nn-NO, pt-PT, sv-SE 2020-01-01

      PDF
      1,03 MB
      Image Installation manual en-GB, fr-FR, de-DE, nl-NL 2018-04-17  | Hager

      Installation manual en-GB, fr-FR, de-DE, nl-NL 2018-04-17

      PDF
      1,72 MB
    • Product data sheet

      Image Technical data sheet for EE810 single channel dual head occupancy sensor  | Hager

      Technical data sheet for EE810 single channel dual head occupancy sensor

      Product data sheet en-GB 2016-10-03

      PDF
      303,21 kB
