EAN-Nr.

3250612251810

Packaging

1 piece

Astronomical Timeswitch 2 Channel EE181

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical characteristics
Documentations

Download the sheet

Technical characteristics

Rated operational voltage Ue

230 - 230 V

Frequency

50 - 60 Hz

230 V incandescent and halogen lamp

2,300 W

Max. load fluorescent lamp in series

1,000 W
Max. load fluorescent lamp parallel compensated

400 VA

Power reserve in years

5 y
With network synchronisation

No
With quartz synchronisation

Yes
Number of function channels

2

Accuracy per day

1.5 s
With impulse programme

No
Number of channels

2

Type of contacts

1x changeover
Cross-section flexible conductor

1.5 - 6 mm²
Cross-section rigid conductor

1.5 - 10 mm²

Daily programme

Yes
Weekly programme

Yes
Annual programme

No

Operating temperature

-10 - +55 °C

Type of connection

With screw terminals
Function

Keylock by means of blocking key

Height

85 mm
Width

3.50 mm
Depth

64 mm

Number of modules

2

Minimum interval between 2 switching times

1 min

Downloads

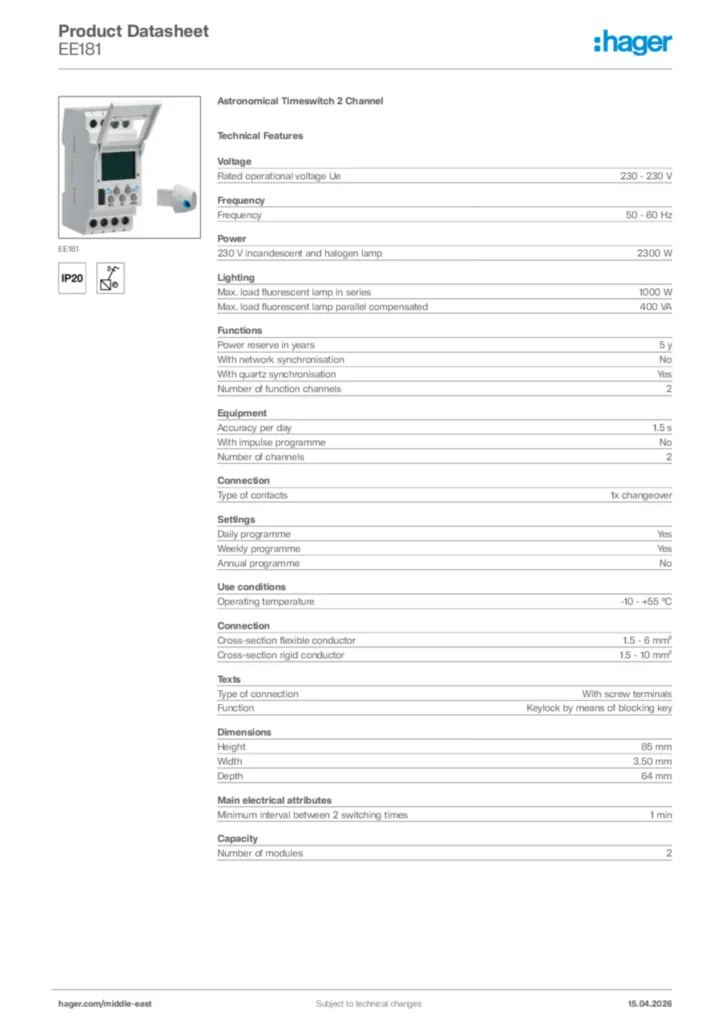

Product Image EE181
Product datasheet

Hager Product data sheet EE181

Astronomical Timeswitch 2 Channel

PDF
Installation manual

Notice EE180-EE181 FR-GB

Installation manual en-GB, fr-FR 2020-01-01

PDF

463,74 kB
Product data sheet

UK_MD_TDS_AstonomicalSwitch.pdf

Technical data sheet including characteristics for Astronomical Time Switches.

PDF

139,44 kB
Declaration of conformity

Declaration

Declaration of conformity International 2019-11-26

PDF

110,33 kB
