EAN-Nr.

3250612231409

Packaging

1 piece

3 Phase kWhmeter direct 125A 6M S0 MID ECP310D

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Documentations

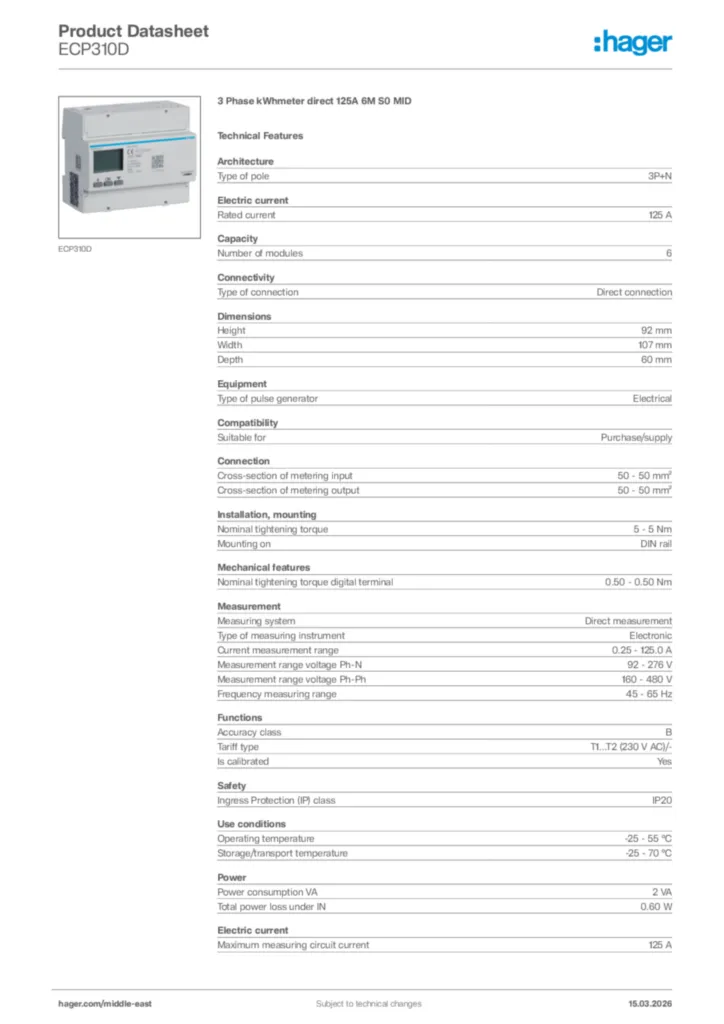

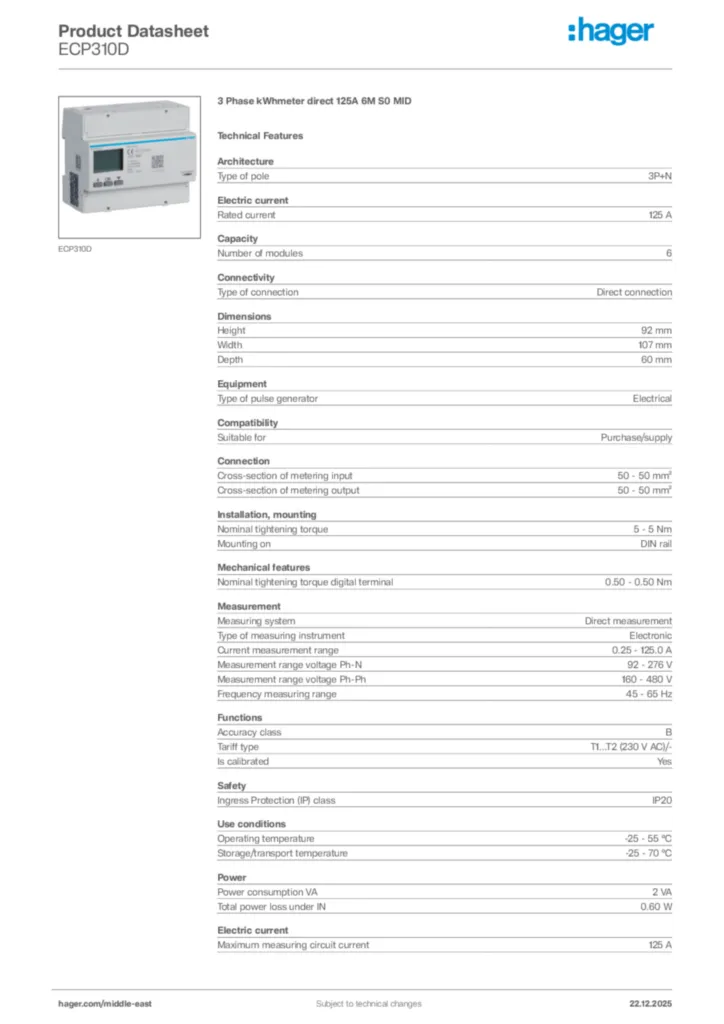

Technical characteristics

Type of pole

3P+N

Rated current

125 A
Maximum measuring circuit current

125 A

Number of modules

6

Type of connection

Direct connection

Height

92 mm
Width

107 mm
Depth

60 mm

Type of pulse generator

Electrical

Suitable for

Purchase/supply

Cross-section of metering input

50 - 50 mm²
Cross-section of metering output

50 - 50 mm²

Nominal tightening torque

5 - 5 Nm
Mounting on

DIN rail

Nominal tightening torque digital terminal

0.50 - 0.50 Nm

Measuring system

Direct measurement
Type of measuring instrument

Electronic
Current measurement range

0.25 - 125.0 A
Measurement range voltage Ph-N

92 - 276 V
Measurement range voltage Ph-Ph

160 - 480 V
Frequency measuring range

45 - 65 Hz

Accuracy class

B
Tariff type

T1...T2 (230 V AC)/-
Is calibrated

Yes

Ingress Protection (IP) class

IP20

Operating temperature

-25 - 55 °C
Storage/transport temperature

-25 - 70 °C

Power consumption VA

2 VA
Total power loss under IN

0.60 W

Frequency

50 - 50 Hz

Downloads

Product Image ECP310D
Instruction manual

Instruction manual International 2024-02-21

PDF

311,47 kB
Manual

Installer leaflet ECP310D

Manual de-DE, en-GB 2024-01-29

PDF

3,30 MB

Installer leaflet ECP310D

Manual pl-PL, ar 2024-01-31

PDF

3,41 MB
Declaration of conformity

EU Declaration of Conformity

Declaration of conformity en-GB 2024-04-15

PDF

461,68 kB

More documentation
