3 Phase kWhmeter via CT 1A or 5A 4M MBUS MID ECM300C
EAN-Nr.
3250612231324
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 1 products available
Technical characteristics
Architecture
-
Bus systemM-BUS
-
Type of pole3P+N
Electric current
-
Rated current5 A
-
Maximum measuring circuit current6 A
Capacity
-
Number of modules4
Dimensions
-
Height90 mm
-
Width72 mm
-
Depth60 mm
Equipment
-
Type of pulse generatorOptical
Compatibility
-
Suitable forPurchase/supply
Connection
-
Cross-section of metering input4 - 4 mm²
-
Cross-section of metering output4 - 4 mm²
-
Connector/plug type Bus systemBus connection terminal
Installation, mounting
-
Nominal tightening torque1 - 1 Nm
-
Mounting onDIN rail
Mechanical features
-
Nominal tightening torque digital terminal0.50 - 0.50 Nm
Measurement
-
Measuring systemMeasurement transformer
-
Type of measuring instrumentElectronic
-
Current measurement range0.01 - 6.0 A
-
Measurement range voltage Ph-N92 - 276 V
-
Measurement range voltage Ph-Ph160 - 480 V
-
Frequency measuring range45 - 65 Hz
Power supply
-
Number of phases for power supply4
Functions
-
Accuracy classB
-
Tariff typeT1...T2 (230V AC)/T1...T2 M-BUS
-
Is calibratedYes
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-25 - 55 °C
-
Storage/transport temperature-25 - 70 °C
Power
-
Power consumption VA2 VA
-
Total power loss under IN0.60 W
Frequency
-
Frequency50 - 50 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

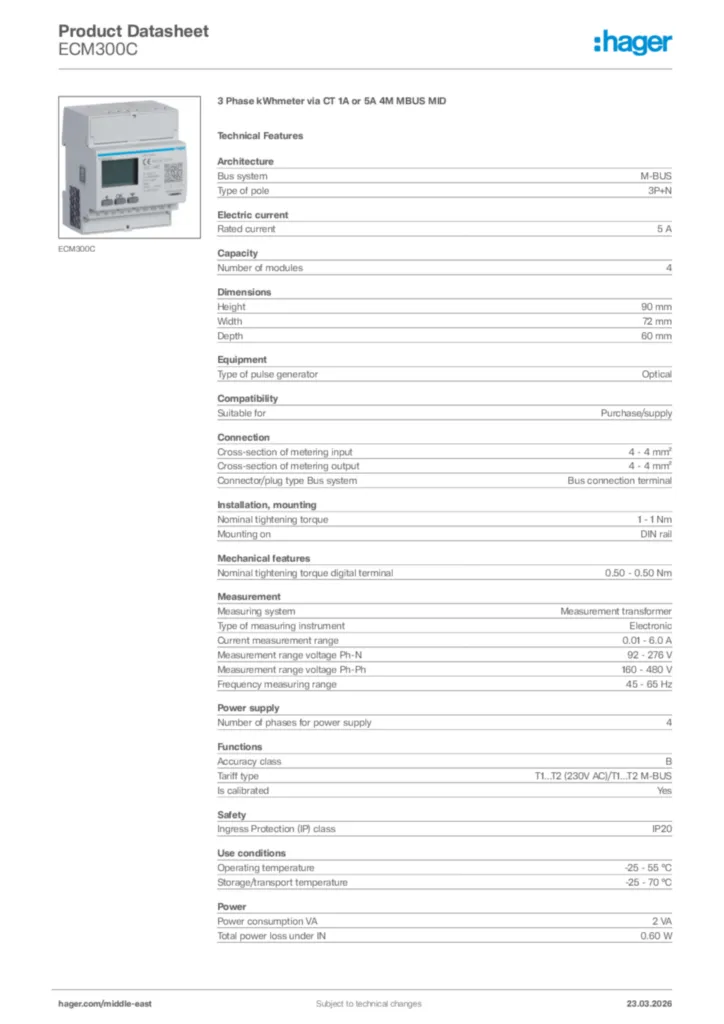

Product datasheet
