Auxiliary contact for RCCB 2(1C+1O) 6A 240V AC CZ001
EAN-Nr.
3250611860013
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 18 products available
Referenced by
-
CD440BRCCB 4P 40A 30mA AC Class
-
CD281ZRCCB 2P 80A 30mA AC Class
-
CD285ZRCCB 2P 100A 30mA AC Class
-
CD480SRCCB 4P 80A 30mA AC Class 60Hz
-

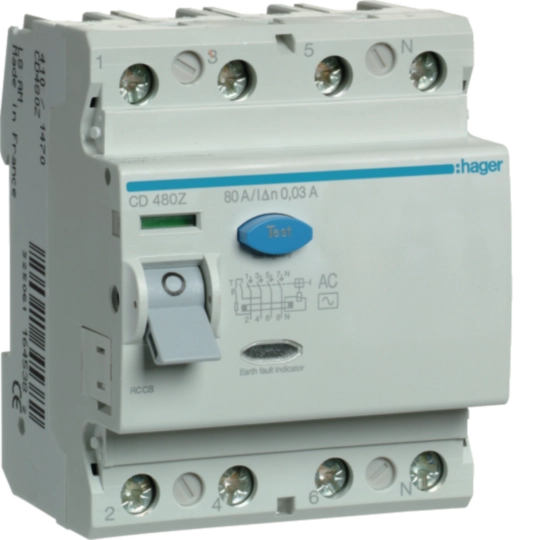

CD480ZRCCB 4P 80A 30mA AC Class
-
CD484S
RCCB 4P 100A 30mA AC Class 60Hz
-
CD485ZRCCB 4P 100A 30mA AC Class
-

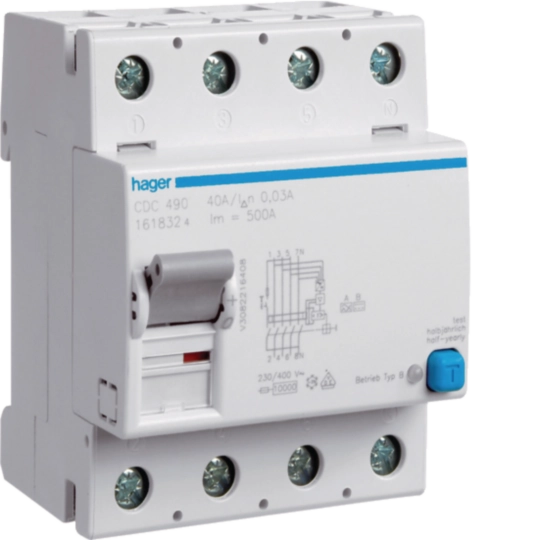

CDC490RCCB 4P 125A 30mA AC Class
-
CE281ZRCCB 2P 80A 100mA AC Class
-
CE285ZRCCB 2P 100A 100mA AC Class
-
CE481ZRCCB 4P 80A 100mA AC Class
-
CE485ZRCCB 4P 100A 100mA AC Class
-
CF280S
RCCB 2P 80A 300mA AC Class 60Hz
-

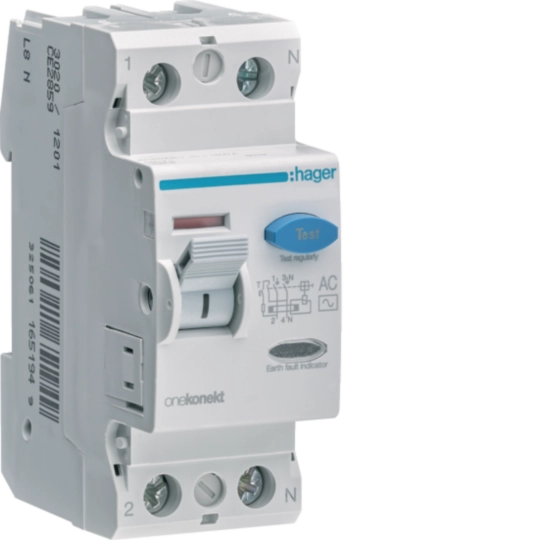

CF281ZRCCB 2P 80A 300mA AC Class
-
CF284S
RCCB 2P 100A 300mA AC Class 60Hz
-
CF285ZRCCB 2P 100A 300mA AC Class
-

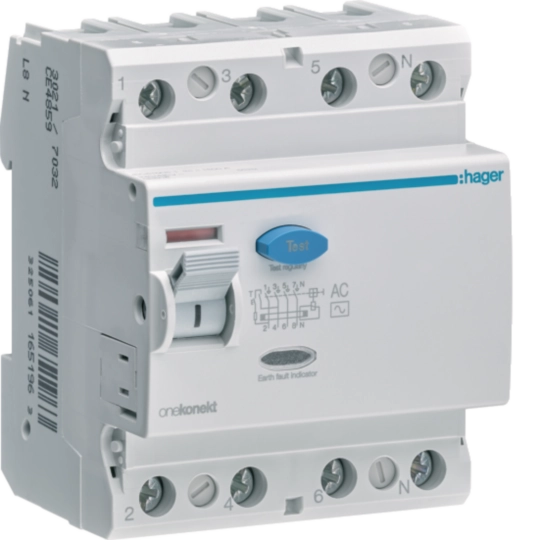

CF481ZRCCB 4P 80A 300mA AC Class
-
CF485ZRCCB 4P 100A 300mA AC Class
Technical characteristics
Electric current
-
Rated current6 A
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeClick mounting
Capacity
-
Number of modules1
Connection
-
Cross-section flexible conductor4 mm²
-
Cross-section rigid conductor6 mm²
Voltage
-
Rated insulation voltage Ui500 V
-
Type voltage supplyAC
Frequency
-
Frequency50 - 50 Hz
Endurance
-
Number of mechanical operations12,000
-
Electric endurance in number of cycles6,000
Use conditions
-
Operating temperature-25 - 60 °C
-
Storage/transport temperature-40 - 80 °C
Power
-
Total power loss under IN0.10 W
Dimensions
-
Width18 mm
Equipment
-
Number of INV contacts0
-
Number of NC contacts1
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

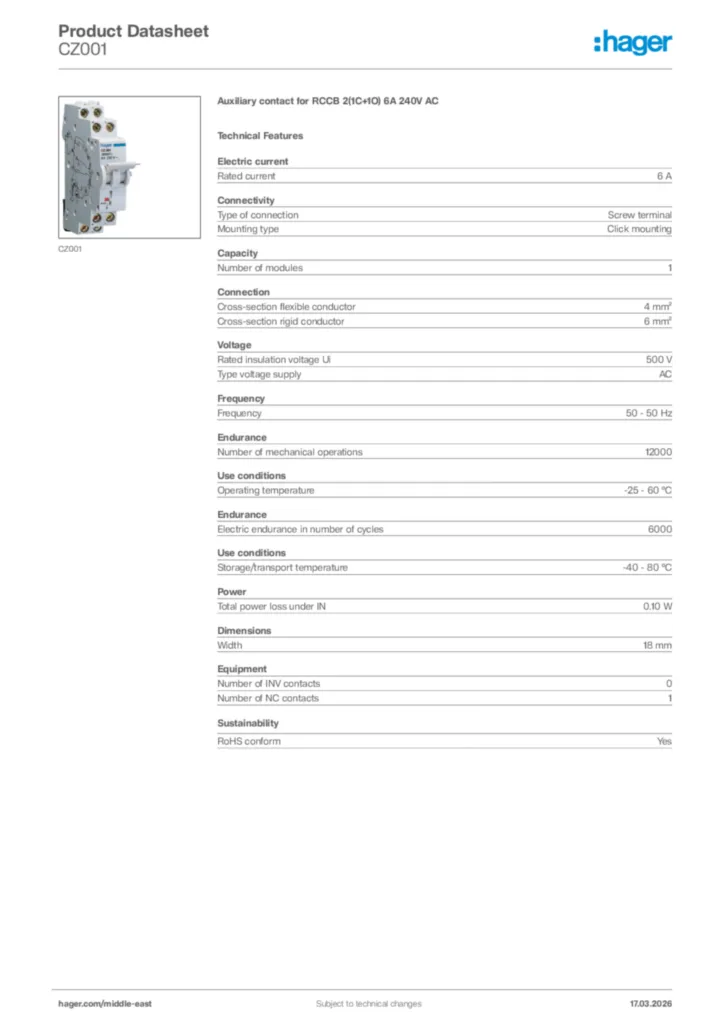

Hager Product data sheet CZ001
Auxiliary contact for RCCB 2(1C+1O) 6A 240V AC
PDF -
Installation manual
Notice Auxiliaire de signalisation MZ202
Installation manual cs-CZ, en-GB, es-ES, fr-FR, de-DE, it-IT, pt-PT 2015-04-07
PDF698,03 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-04-26
PDF182,48 kB
Declaration
Declaration of conformity International 2022-04-26
PDF223,50 kB
More documentation
