RCCB 4P 63A 300mA AC Class S CP464J
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available
Technical characteristics
Architecture
-
Type of pole3P+N
Electric current
-
Rated current63 A
-
Rated residual operating current Idn300 mA
-
Breaking and opening capacity Idm1.50 kA
-
Rated conditional short-circuit current Inc according to EN61008-16 kA
-
Rated current -25°C63 A
-
Rated current at -20°C63 A
-
Rated current -15°C63 A
-
Rated current -10°C63 A
-
Rated current -5°C63 A
-
Rated current at 0°C63 A
-
Rated current 5°C63 A
-
Rated current 10°C63 A
-
Rated current 15°C63 A
-
Rated current at 20°C63 A
-
Rated current 25°C63 A
-
Rated current 30°C63 A
-
Rated current 35°C63 A
-
Rated current at 40°C63 A
-
Rated current at 45°C60 A
-
Rated current at 50°C58 A
-
Rated current 55°C55 A
-
Rated current 60°C51 A
-
Rated current 65°C48 A
-
Rated current 70°C45 A
Installation, mounting
-
Nominal tightening torque top terminal2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.80 - 2.80 Nm
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect
-
Nominal tightening torque2.80 - 2.80 Nm
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4,000 V
-
Max. operating voltage440 V
Frequency
-
Frequency50 - 50 Hz
Capacity
-
Number of modules4
Compatibility
-
Suitable for DIN RailYes
Safety
-
Ingress Protection (IP) classIP20
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 25 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 16 mm²
-
Cross-section flexible conductor16 mm²
-
Cross-section rigid conductor25 mm²
Power
-
Total power loss under IN18.50 W
Use conditions
-
Max. Altitude2,000 m
Endurance
-
Electric endurance in number of cycles2,000
-
Number of mechanical operations4,000
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width70 mm
-
Depth70 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

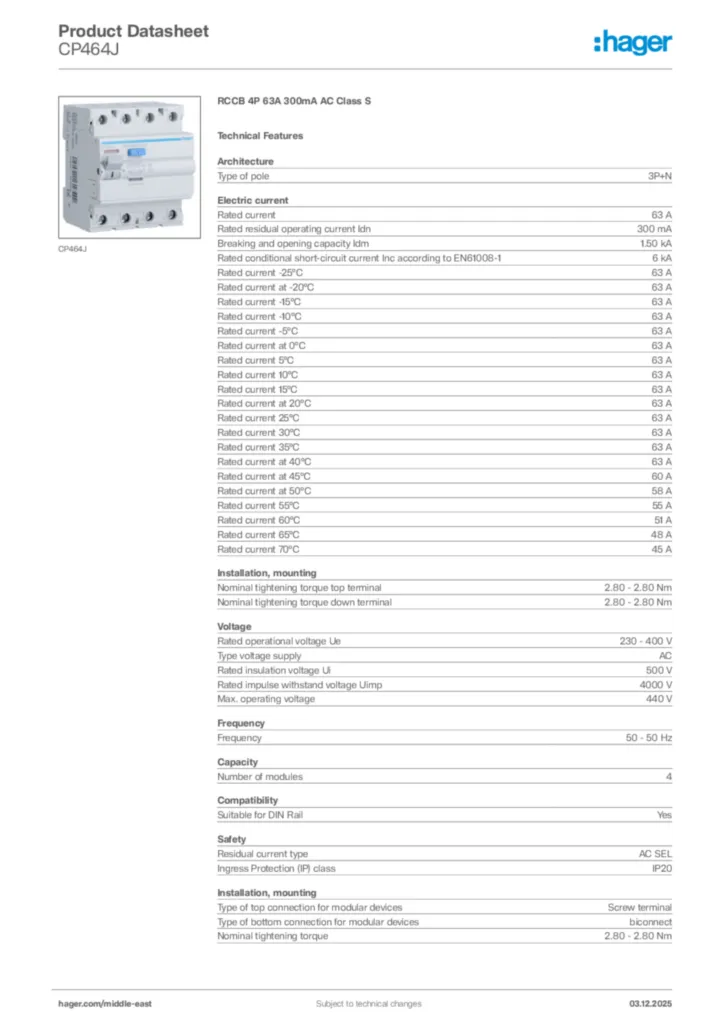

Hager Product data sheet CP464J
