RCCB 4P 40A 300mA B Class CFB440F

Name: CFB440F
Brand: Hager
SKU: CFB440F

EAN-Nr.

3250611618300

Packaging

1 piece

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Environmental value
Documentations

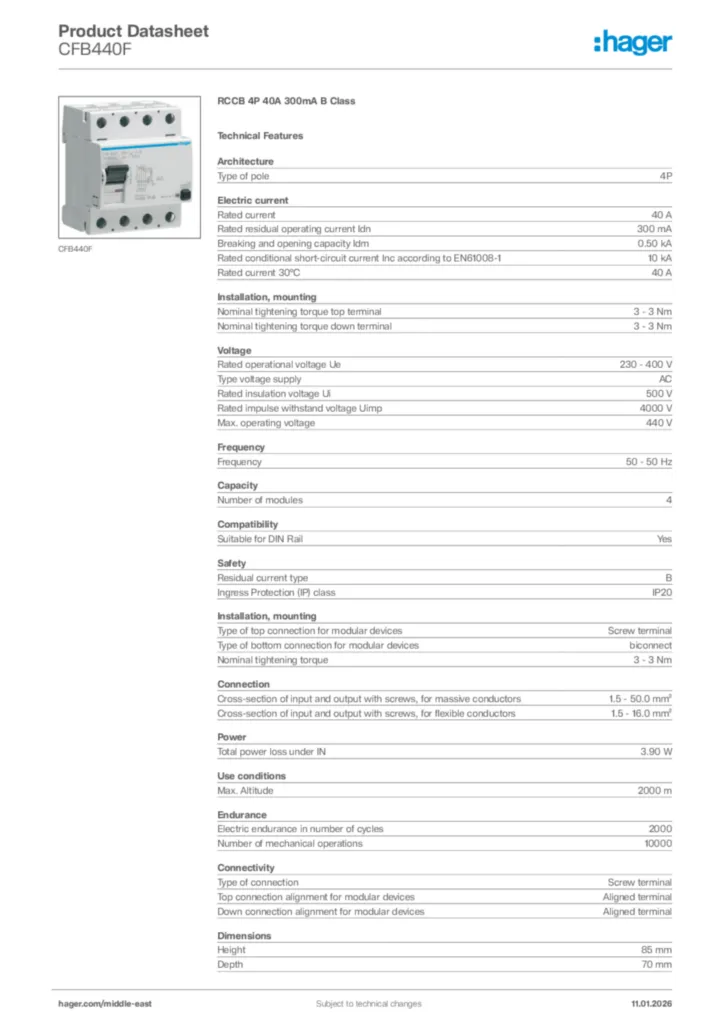

Download the sheet

Technical characteristics

Type of pole

4P

Rated current

40 A
Rated residual operating current Idn

300 mA
Breaking and opening capacity Idm

0.50 kA
Rated conditional short-circuit current Inc according to EN61008-1

10 kA
Rated current 30°C

40 A

Nominal tightening torque top terminal

3 - 3 Nm
Nominal tightening torque down terminal

3 - 3 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect
Nominal tightening torque

3 - 3 Nm

Rated operational voltage Ue

230 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

440 V

Frequency

50 - 50 Hz

Number of modules

4

Suitable for DIN Rail

Yes

Residual current type

B
Ingress Protection (IP) class

IP20

Cross-section of input and output with screws, for massive conductors

1.5 - 50.0 mm²
Cross-section of input and output with screws, for flexible conductors

1.5 - 16.0 mm²

Total power loss under IN

3.90 W

Max. Altitude

2,000 m

Electric endurance in number of cycles

2,000
Number of mechanical operations

10,000

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

85 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
