Alu-trunking base 65x100, anodised BRAP651001ELN
EAN-Nr.
4012740887717
Packaging
8 Meters
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cover for wall duct/installation column 1 products available -
Junction box for wall duct 2 products available -
Coupler for wall duct 1 products available -
End piece for wall duct 1 products available -
Partition for wall duct 1 products available
Complete your system

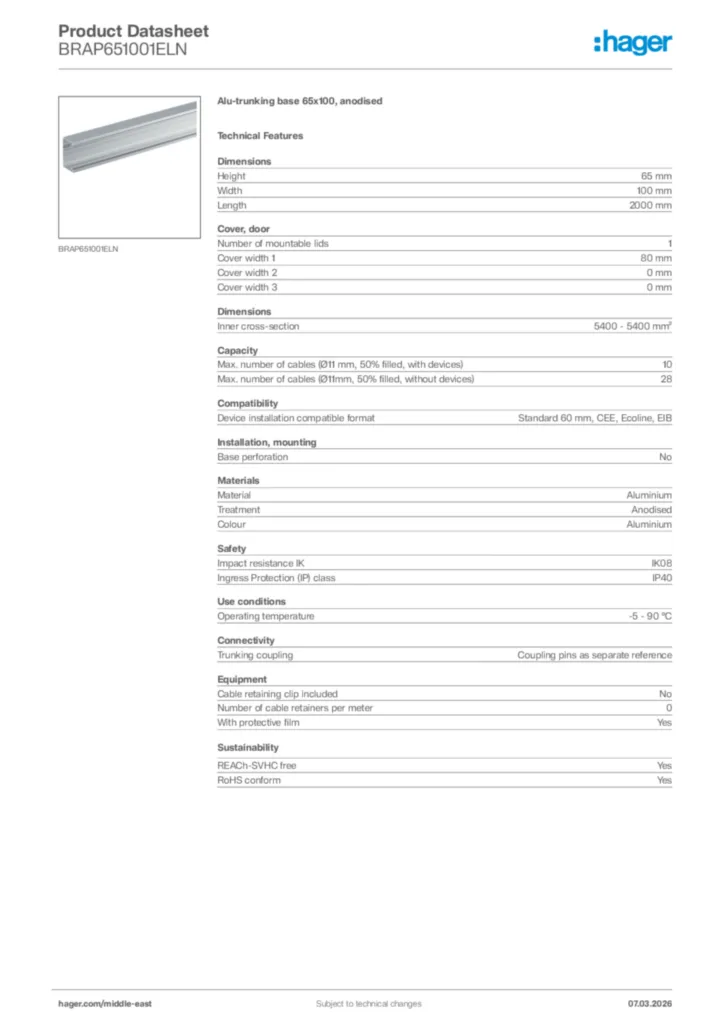

Technical characteristics
Dimensions
-
Height65 mm
-
Width100 mm
-
Length2,000 mm
-
Inner cross-section5,400 - 5,400 mm²
Cover, door
-
Number of mountable lids1
-
Cover width 180 mm
-
Cover width 20
-
Cover width 30
Capacity
-
Max. number of cables (Ø11 mm, 50% filled, with devices)10
-
Max. number of cables (Ø11mm, 50% filled, without devices)28
Compatibility
-
Device installation compatible formatStandard 60 mm, CEE, Ecoline, EIB
Installation, mounting
-
Base perforationNo
Materials
-
MaterialAluminium
-
TreatmentAnodised
-
ColourAluminium
Safety
-
Impact resistance IKIK08
-
Ingress Protection (IP) classIP40
Use conditions
-
Operating temperature-5 - 90 °C
Connectivity
-
Trunking couplingCoupling pins as separate reference
Equipment
-
Cable retaining clip includedNo
-
Number of cable retainers per meter0
-
With protective filmYes
