    EAN-Nr.
    3250611364511
    Packaging
    1 piece
    • Add-on blocks for MCB and multipolar

    Earth leakage add-on block 4P 25A 300mA AC Class BF426N

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Earth leakage add-on block 4P 25A 300mA AC Class

    BF426N

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Compatible products

    • Referenced by 27 products available

    Referenced by

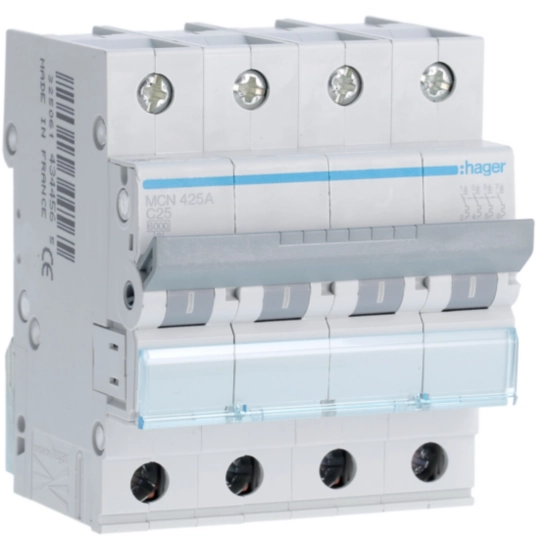

    • MCN425

      MCB 4P 6kA C-25A 4M
      0.00 €  / *
    • NRN420

      MCB 4P 25kA C-20A 4M
      0.00 €  / *
    • MCN463A

      MCB 4P 6kA C-63A 4M
      0.00 €  / *
    • NCN402A

      MCB 4P 10kA/15kA C-2A 4M
      0.00 €  / *
    • NRN406

      MCB 4P 25kA C-6A 4M
      0.00 €  / *
    • NCN420A

      MCB 4P 10kA/15kA C-20A 4M
      0.00 €  / *
    • NCN410A

      MCB 4P 10kA/15kA C-10A 4M
      0.00 €  / *
    • NCN425A

      MCB 4P 10kA/15kA C-25A 4M
      0.00 €  / *
    • NCN416A

      MCB 4P 10kA/15kA C-16A 4M
      0.00 €  / *
    • NRN416

      MCB 4P 25kA C-16A 4M
      0.00 €  / *
    • NRN410

      MCB 4P 25kA C-10A 4M
      0.00 €  / *
    • NRN425

      MCB 4P 25kA C-25A 4M
      0.00 €  / *
    • MCN406

      MCB 4P 6kA C-6A 4M
      0.00 €  / *
    • MCN410

      MCB 4P 6kA C-10A 4M
      0.00 €  / *
    • MCN420

      MCB 4P 6kA C-20A 4M
      0.00 €  / *
    • MCN440A

      MCB 4P 6kA C-40A 4M
      0.00 €  / *
    • MCN432A

      MCB 4P 6kA C-32A 4M
      0.00 €  / *
    • MCN450A

      MCB 4P 6kA C-50A 4M
      0.00 €  / *
    • MCN404

      MCB 4P 6kA C-4A 4M
      0.00 €  / *
    • MCN416

      MCB 4P 6kA C-16A 4M
      0.00 €  / *

    Technical characteristics

    Architecture
    • Neutral position
      Right
    • Number of poles
      4
    Capacity
    • Number of modules
      2
    Voltage
    • Rated operational voltage Ue
      230 - 400 V
    • Rated insulation voltage Ui
      500 V
    • Rated impulse withstand voltage Uimp
      4,000 V
    Frequency
    • Frequency
      50 - 50 Hz
    Electric current
    • Rated residual operating current Idn
      300 mA
    • Rated current
      25 A
    Connectivity
    • Down connection alignment for modular devices
      Aligned terminal
    Installation, mounting
    • Nominal tightening torque
      2.20 - 2.20 Nm
    • Nominal tightening torque down terminal
      2.20 - 2.20 Nm
    Dimensions
    • Height
      70 mm
    • Width
      44 mm
    • Depth
      83 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration BF426N
    PDF
    Hager RoHS report BF426N
    PDF

    Downloads

    • Image BF426N | Hager

      Product Image BF426N

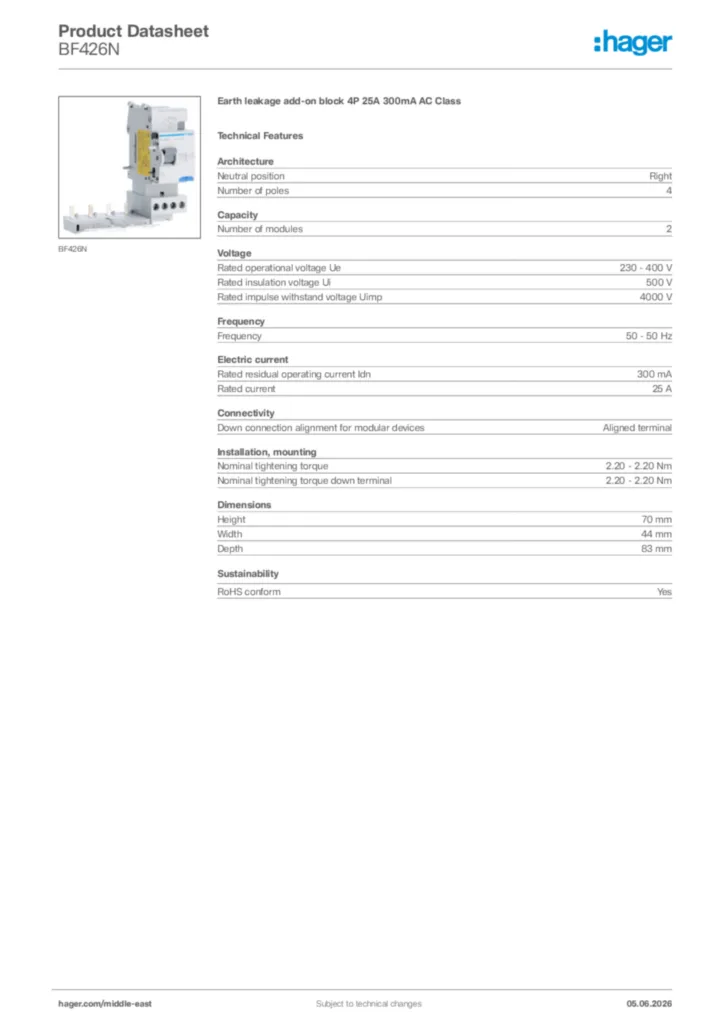

    • Product datasheet

      Image Hager Product data sheet BF426N | Hager

      Hager Product data sheet BF426N

      Earth leakage add-on block 4P 25A 300mA AC Class

      PDF

    • Installation manual

      Image Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29 | Hager

      Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29

      PDF
      1,61 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-11-10

      PDF
      920,46 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-12-07

      PDF
      1,14 MB
      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2024-11-12

      PDF
      452,70 kB
