    Earth leakage add-on-block 3P 63A 300mA A Class 1mod BF163T

    No longer available

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Earth leakage add-on-block 3P 63A 300mA A Class 1mod

    BF163T

    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Technical characteristics

    Voltage
    • Rated operational voltage Ue
      240 - 415 V
    • Rated insulation voltage Ui
      500 V
    • Rated impulse withstand voltage Uimp
      4,000 V
    Frequency
    • Frequency
      50 - 50 Hz
    Electric current
    • Rated residual operating current Idn
      300 mA
    • Rated current IN
      63 A
    Architecture
    • Number of poles
      3
    • Neutral position
      Right
    Capacity
    • Number of modules
      1
    Connectivity
    • Type of connection
      Screw terminal
    Dimensions
    • Height
      121 mm
    • Width
      70.80 mm
    • Depth
      69.10 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    REACH declaration BF163T
    PDF
    RoHS report BF163T
    PDF

    Downloads

    • Image BF163T | Hager

      Product Image BF163T

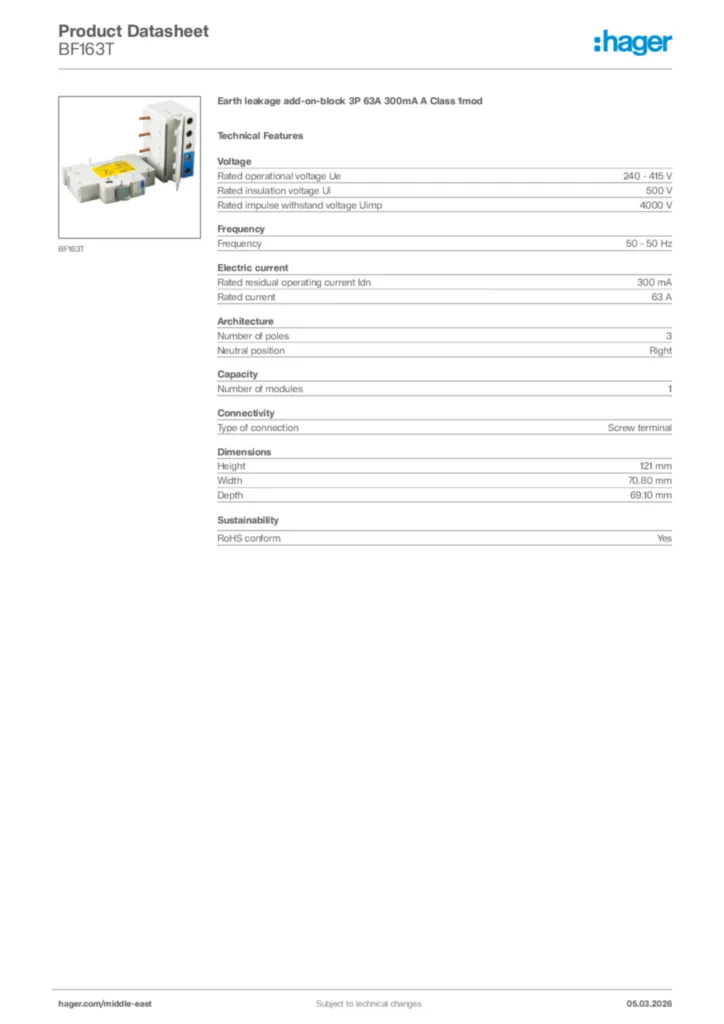

    • Product datasheet

      Image Hager Product data sheet BF163T | Hager

      Hager Product data sheet BF163T

      Earth leakage add-on-block 3P 63A 300mA A Class 1mod

      PDF

    • Installation manual

      Image Notice bloc diff Australie Up to 63 A | Hager

      Notice bloc diff Australie Up to 63 A

      Installation manual en-GB 2020-01-01

      PDF
      4,53 MB

    • Declaration of conformity

      Image Declaration of conformity en-US 2026-07-14 | Hager

      Declaration of conformity en-US 2026-07-14

      PDF
      250,40 kB
