Earth leakage add-on-block 3P 63A 100mA A Class 1mod BE163T
EAN-Nr.
3250611344889
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Voltage
-
Rated operational voltage Ue240 - 415 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4,000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn100 mA
-
Rated current63 A
Architecture
-
Number of poles3
-
Neutral positionRight
Capacity
-
Number of modules1
Connectivity
-
Type of connectionScrew terminal
Dimensions
-
Height121 mm
-
Width70.80 mm
-
Depth69.10 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

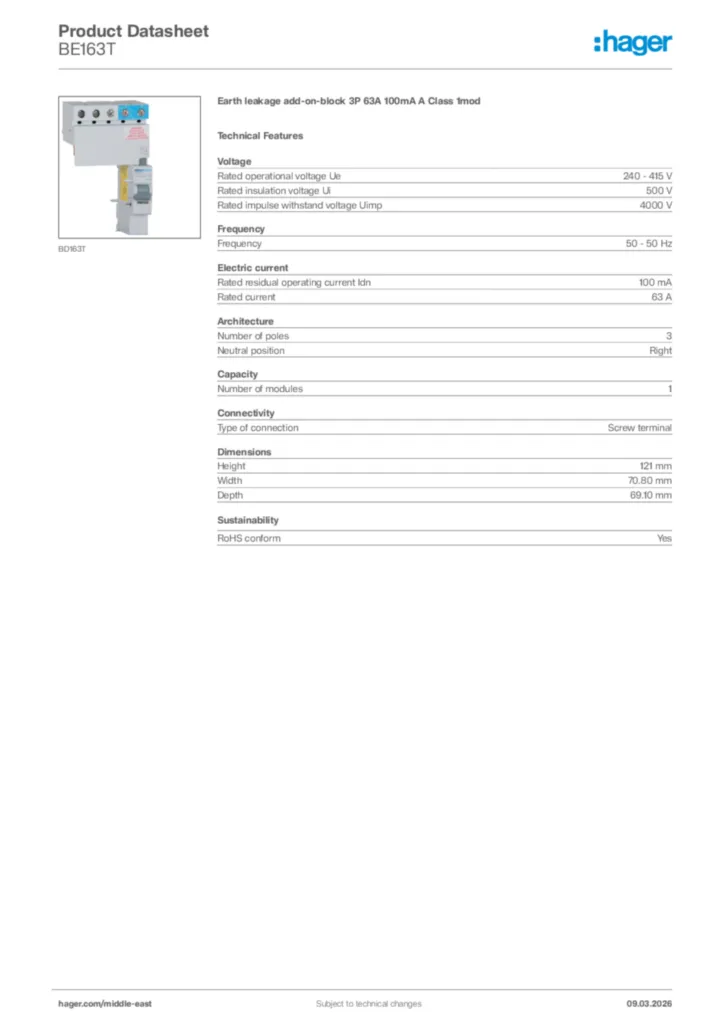

Product datasheet
Hager Product data sheet BE163T
Earth leakage add-on-block 3P 63A 100mA A Class 1mod
PDF -
Installation manual
Notice bloc diff Australie Up to 63 A
Installation manual en-GB 2020-01-01
PDF4,53 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2019-01-10
PDF87,63 kB
