    • BA7A40025
    EAN
    4012740198875
    Packaging
    48 Meters
    • Slotted cable trunking plastic

    Slotted panel trunking made of PVC BA7A 40x25mm grey BA7A40025

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Slotted panel trunking made of PVC BA7A 40x25mm grey

    BA7A40025

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Dimensions
    • Height
      40 mm
    • Width
      25 mm
    • Length
      2,000 mm
    • Slit width
      6 mm
    • Slot width
      6.50 mm
    • Inner cross-section
      605 - 605 mm²
    Equipment
    • Cover in scope of delivery
      Yes
    Materials
    • Material
      Polyvinylchloride (PVC)
    • Colour
      Stone grey
    • RAL code
      7030
    Functions
    • Is self-extinguishing
      Yes
    Standards
    • Flammability class according UL94
      V0
    Safety
    • Fire resistance class
      M1
    Architecture
    • Flexible
      No
    Configuration
    • Side wall
      Slotted
    Connectivity
    • Mounting type
      Screw mounting
    Installation, mounting
    • Mounting on
      Mounting plate
    Electric current
    • Is current leak stable
      Yes

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP - Slotted cable trunking system BA7 and BA7A (English)
    PDF
    439,72 kB
    REACH declaration BA7A40025
    PDF
    RoHS report BA7A40025
    PDF

    Downloads

    • Image BA7A40025  | Hager

      Product Image BA7A40025

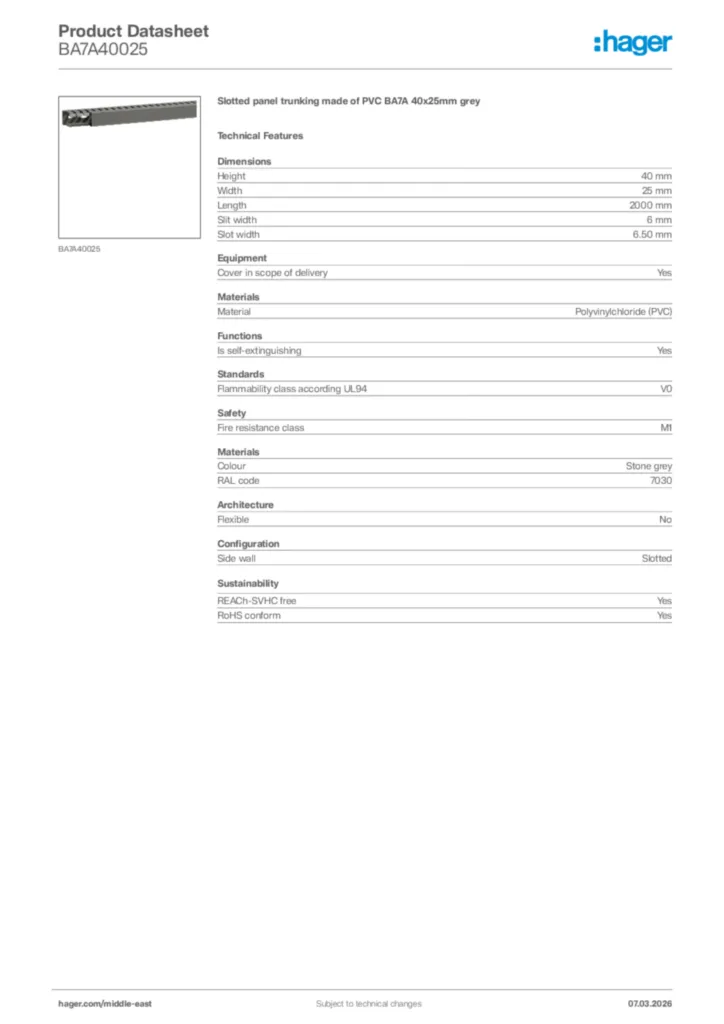

    • Product datasheet

      Image Hager Product data sheet BA7A40025  | Hager

      Hager Product data sheet BA7A40025

      Slotted panel trunking made of PVC BA7A 40x25mm grey

      PDF
    • STEP files

      Image Step Model BA7A40025  | Hager

      Step Model BA7A40025

      STEP files International 2026-04-15

      STP
      608,34 kB
    • Product data sheet

      Image Product sheet for slotted trunking system BA7A in German  | Hager

      Product sheet for slotted trunking system BA7A in German

      Product data sheet de-DE 2018-10-11

      PDF
      395,99 kB
    • Declaration of conformity

      Image Declaration of conformity en-GB 2026-08-07  | Hager

      Declaration of conformity en-GB 2026-08-07

      PDF
      295,76 kB
