RCBO 1P+N 6kA C-6A 100mA AC Class AE956B

No longer available

Technical characteristics
Environmental value
Documentations

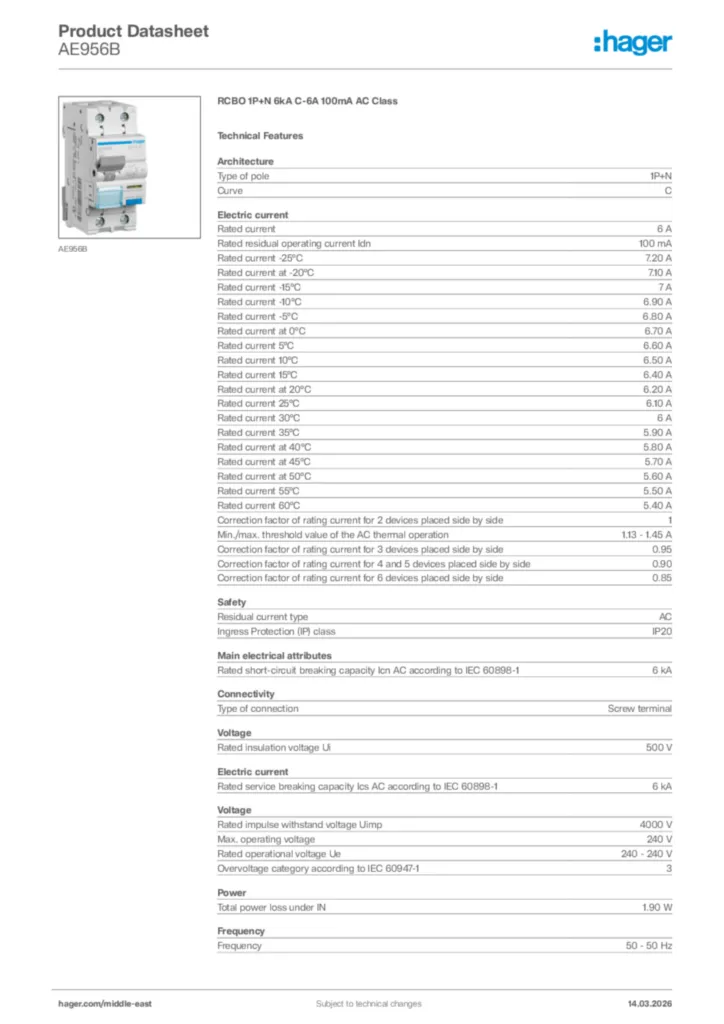

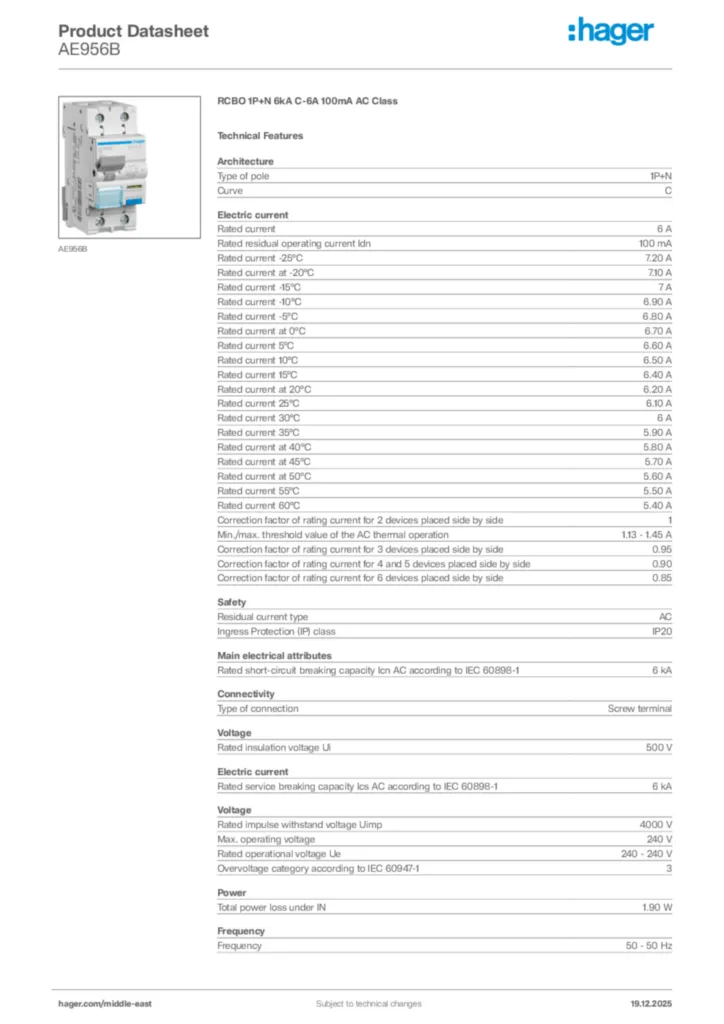

Download the sheet

Technical characteristics

Type of pole

1P+N

Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Type of connection

Screw terminal

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

240 V
Rated operational voltage Ue

240 - 240 V
Overvoltage category according to IEC 60947-1

3

Rated current

6 A
Rated residual operating current Idn

100 mA
Rated current -25°C

7.20 A
Rated current at -20°C

7.10 A
Rated current -15°C

7 A
Rated current -10°C

6.90 A
Rated current -5°C

6.80 A
Rated current at 0°C

6.70 A
Rated current 5°C

6.60 A
Rated current 10°C

6.50 A
Rated current 15°C

6.40 A
Rated current at 20°C

6.20 A
Rated current 25°C

6.10 A
Rated current 30°C

6 A
Rated current 35°C

5.90 A
Rated current at 40°C

5.80 A
Rated current at 45°C

5.70 A
Rated current at 50°C

5.60 A
Rated current 55°C

5.50 A
Rated current 60°C

5.40 A
Correction factor of rating current for 2 devices placed side by side

1
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A
Correction factor of rating current for 3 devices placed side by side

0.95
Correction factor of rating current for 4 and 5 devices placed side by side

0.90
Correction factor of rating current for 6 devices placed side by side

0.85
Rated service breaking capacity Ics AC according to IEC 60898-1

6 kA

Total power loss under IN

1.90 W

Frequency

50 - 50 Hz

Nominal tightening torque down terminal

2.10 - 2.10 Nm
Nominal tightening torque top terminal

2.10 - 2.10 Nm
Nominal tightening torque

2.10 - 2.10 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Max. Altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Air humidity protection

For all climates

Electric endurance in number of cycles

2,000
Number of mechanical operations

2,000

Cross-section rigid conductor

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Number of modules

2

Height

83 mm
Width

35 mm
Depth

68 mm
