RCBO 3 - 3 x 1P+N 6kA B-16A 30mA A QC/QBB ADZ316D

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Environmental value
Documentations

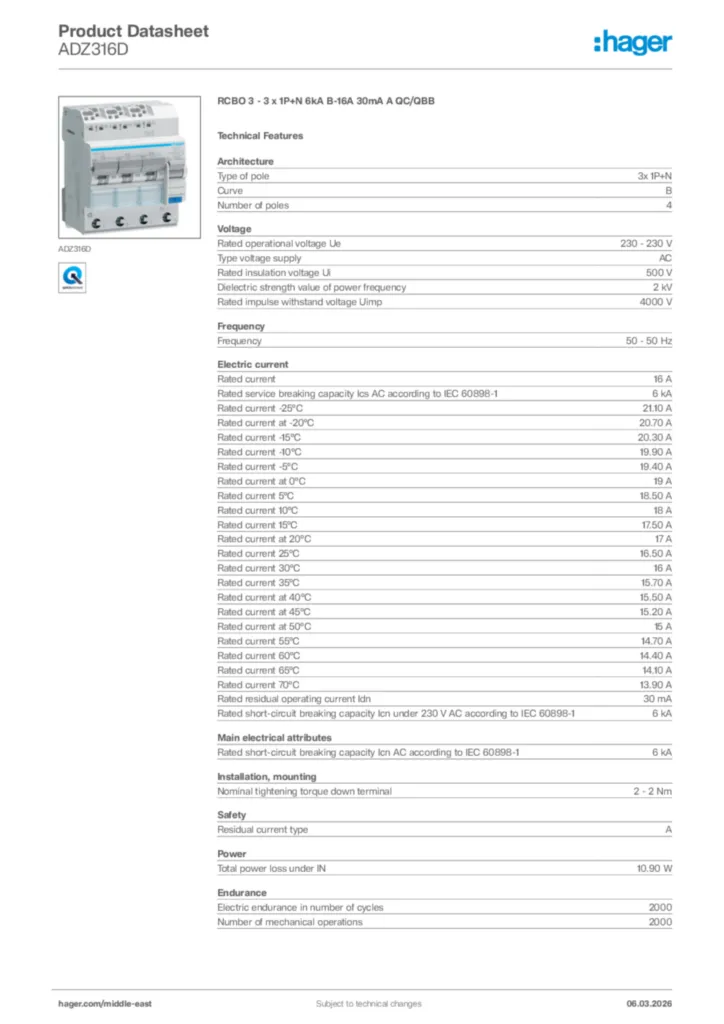

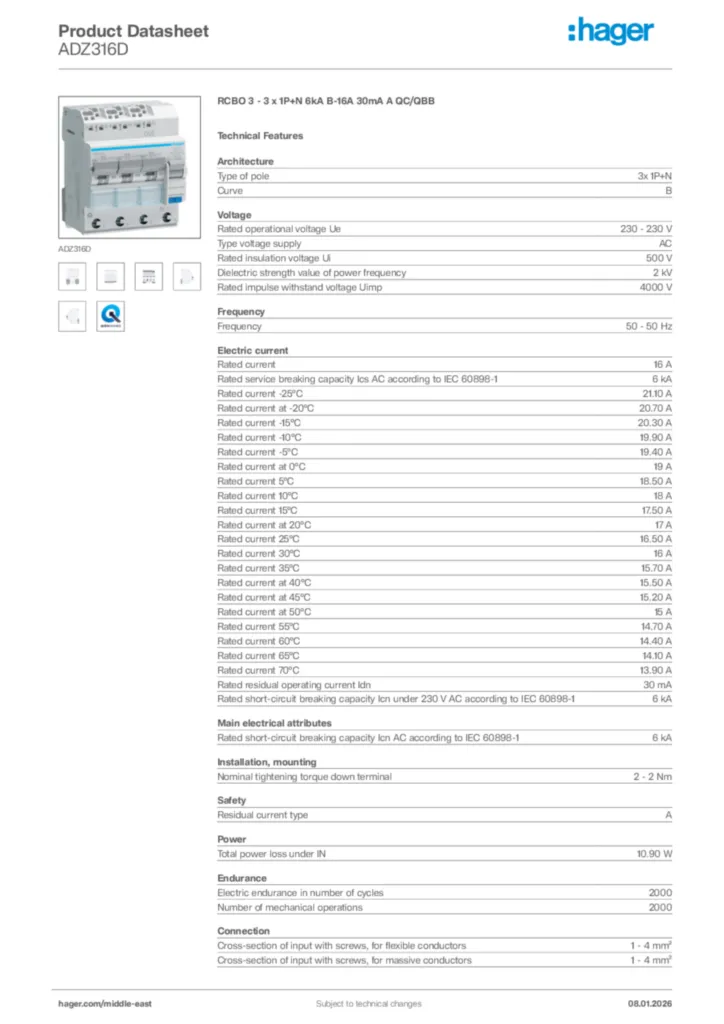

Download the sheet

Technical characteristics

Type of pole

3x 1P+N
Number of protected poles

3
Curve

B

Residual current type

A
Ingress Protection (IP) class

IP2X

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Rated operational voltage Ue

230 - 230 V
Overvoltage category according to IEC 60947-1

3
Type voltage supply

AC
Dielectric strength value of power frequency

2 kV

Rated current

16 A
Rated residual operating current Idn

30 mA
Rated current -25°C

21.10 A
Rated current at -20°C

20.70 A
Rated current -15°C

20.30 A
Rated current -10°C

19.90 A
Rated current -5°C

19.40 A
Rated current at 0°C

19 A
Rated current 5°C

18.50 A
Rated current 10°C

18 A
Rated current 15°C

17.50 A
Rated current at 20°C

17 A
Rated current 25°C

16.50 A
Rated current 30°C

16 A
Rated current 35°C

15.70 A
Rated current at 40°C

15.50 A
Correction factor of rating current for 2 devices placed side by side

0.80
Correction factor of rating current for 3 devices placed side by side

0.80
Correction factor of rating current for 4 and 5 devices placed side by side

0.70
Correction factor of rating current for 6 devices placed side by side

0.60
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A
Rated service breaking capacity Ics AC according to IEC 60898-1

6 kA

Total power loss under IN

10.90 W

Frequency

50 - 50 Hz

Nominal tightening torque down terminal

2 - 2 Nm
Nominal tightening torque

2 - 2 Nm
Type of bottom connection for modular devices

biconnect, quickbusbar
Type of top connection for modular devices

quickconnect

Max. altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C
Storage/transport temperature

-25 - 80 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2

Electric endurance in number of cycles

2,000
Number of mechanical operations

2,000

Cross-section of input with screws, for flexible conductors

1 - 4 mm²
Cross-section of input with screws, for massive conductors

1 - 4 mm²
Cross-section of output with screws, for massive conductors

1 - 16 mm²
Cross-section of output with screws, for flexible conductors

1 - 10 mm²

Number of modules

4

Height

86 mm
Width

71 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
