Rotary Potentiometer 1-10V with Setting Knob/Frame Soft Lock, Polar White Glossy 928912509
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Voltage
-
Operating voltage230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Connectivity
-
Dimming DALINo
Dimensions
-
Diameter axis4 mm
-
Built-in depth22 mm
-
Height59.50 mm
-
Width59.50 mm
-
Depth58 mm
Electric current
-
Control current50 - 50 mA
-
Switching current6 A
Materials
-
ColourPolar white
Texts
-
LightingE.g. for fluorescent lamps and LV halogen lamps
-
Type of connectionWith screw terminals
-
FuseShort-circuit and overload-proof (fine-wire fuse), With spare fuse
-
Related Systemsintegro
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

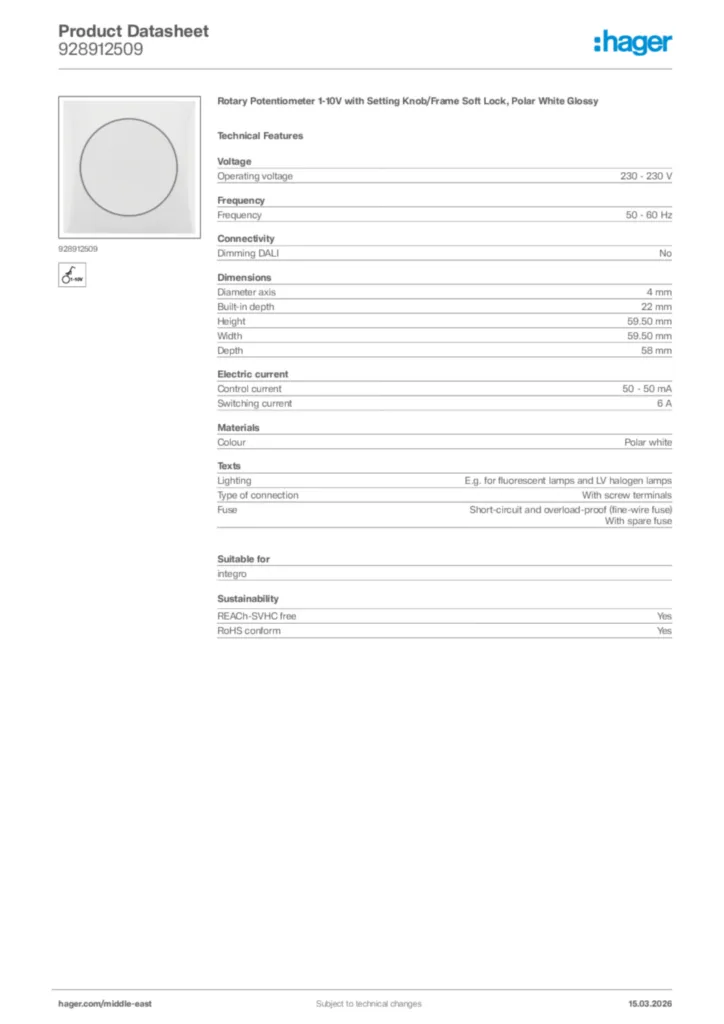

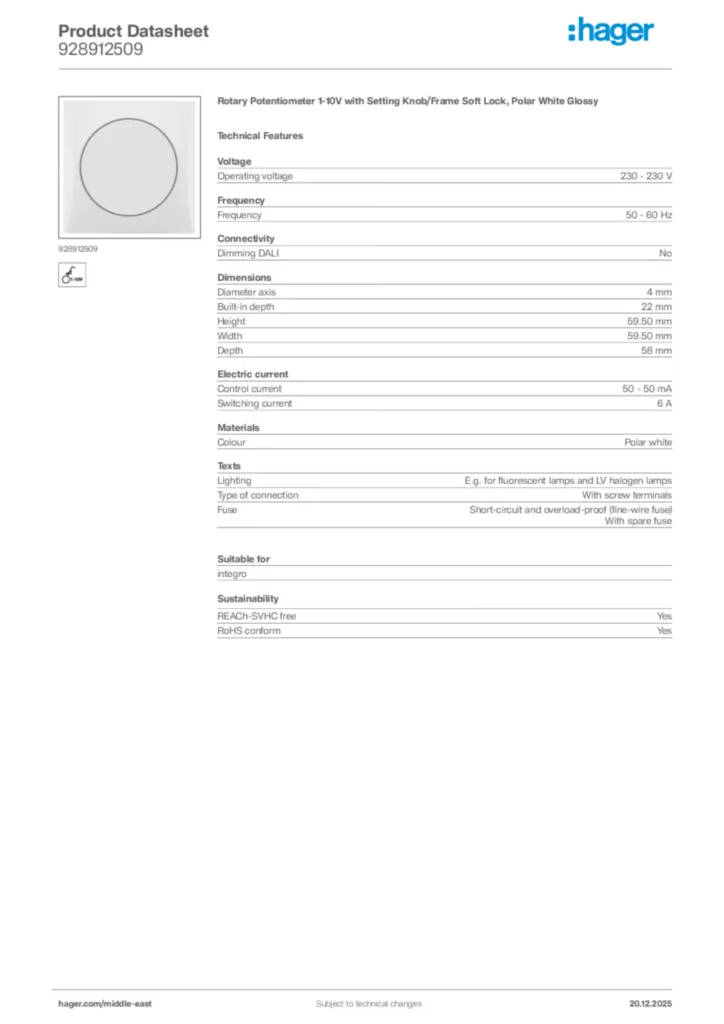

Hager Product data sheet 928912509
Rotary Potentiometer 1-10V with Setting Knob/Frame Soft Lock, Polar White Glossy
PDF -
Installation manual
Manual for 289110-289610-92891xx - Rotary potentiometer (EN, 2012-06)
Installation manual en-GB 2020-01-01
PDF373,59 kB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-06-11
PDF291,54 kB
Declaration of Conformity
Declaration of conformity International 2021-06-11
PDF289,67 kB
