KNX radio blind time switch quicklink Q.x alu velvety, lacquered 85745124
EAN-Nr.
4011334443711
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
No longer available
Complete your system
Technical characteristics
Settings
-
Supported configuration modequicklink
Connectivity
-
With bus system KNX radioYes
-
Radio protocolKNX Radio
Equipment
-
Number of channels2
-
Summer-/wintertime switchoverYes
Scope of delivery
-
Bus connection includedYes
Functions
-
Runtime2 min
-
Astro time shift2 h
-
Battery backup8 h
-
Power reserve in years0
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
ColourAluminium
Texts
-
FunctionEasy additional functions: +6 scenes, 1 up/down operating mode, Configurable transmission and/or reception behaviour, With keylock, Party function, no execution of automatic, radio and extension unit commands (lock-out protection), Reset function (to factory setting)
-
ProtectionWith dismantling protection
Capacity
-
Number of modules0
Dimensions
-
Height58.40 mm
-
Width58.40 mm
-
Depth30 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

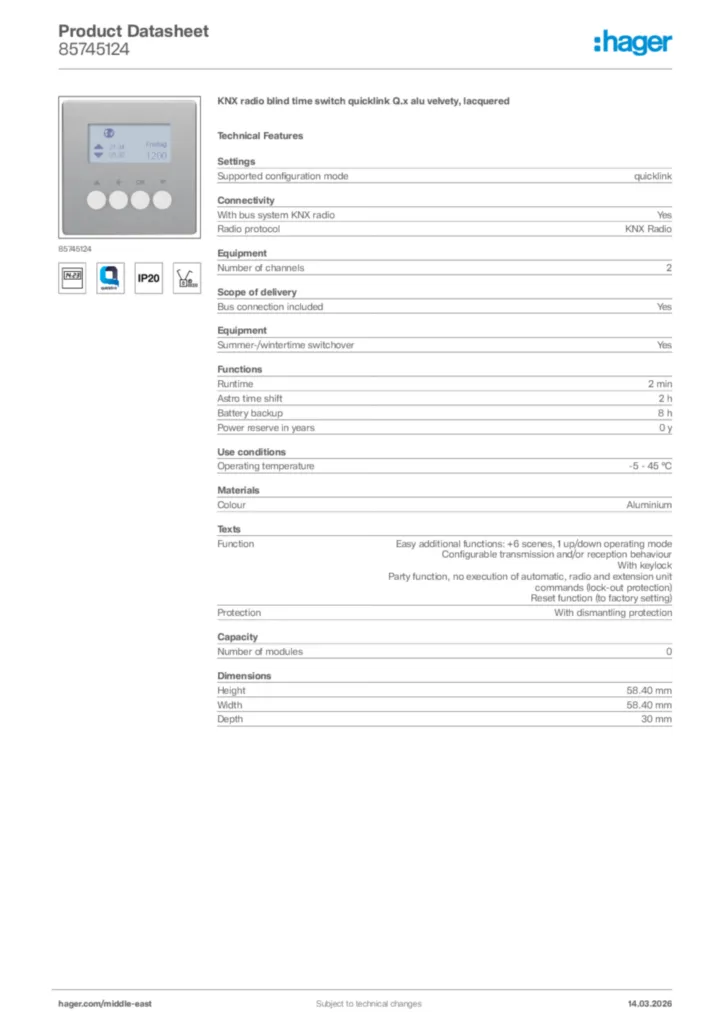

Product datasheet
Hager Product data sheet 85745124
KNX radio blind time switch quicklink Q.x alu velvety, lacquered
PDF -
Installation manual
Installation manual en-GB 2022-05-23
PDF1,26 MB -
KNX product database
ETS4-ETS5 (vers. 1.1.1) - KNX Database for KNX radio shutter timer quicklink
KNX product database International 2020-01-01
KNXPROD15,64 MB
KNX Database (from ETS3) for 857451xx - KNX radio blind time switch quicklink (V100)
KNX product database International 2020-01-01
VD518,69 MB
KNX Database (from ETS4) for 857451xx - KNX radio blind time switch quicklink (V100)
KNX product database International 2020-01-01
KNXPROD15,64 MB -
Application Guide
Application description ETS for 857451xx - KNX radio blind time switch quicklink (EN, vers. 6T8013-52A)
Application Guide en-GB, pl-PL 2013-01-16
PDF2,26 MB
Application description ETS for 857451xx - KNX radio blind time switch quicklink (EN, vers. 6T8013-52B)
Application Guide en-GB, pl-PL 2012-09-13
PDF3,60 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF288,56 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF286,16 kB
More documentation
