Integro Insert-Power Socket Outlet 12V Polar White Glossy 845712509
EAN-Nr.
4011334322887
Packaging
200 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 44 products available
Referenced by
-
919882502Integro Flow-Frame, 1-Gang, Hinged Cover and Labelling Field Polar White Glossy
-
918272599Integro Flow-Frame with Imprint 'IP44' Polar White Glossy
-
919882505Integro Flow-Frame, 1-Gang, Hinged Cover and Labelling Field Anthracite Matt
-
918272597Integro Flow-Frame with Imprint 'IP44' Grey Glossy
-
918272568Integro Flow Frame with Imprint 'IP44' Chrome Matt Lacquered
-
918032509Integro Flow Frame, 1-Gang with Labelling Field, Polar White Glossy
-
918032507Integro Flow Frame, 1-Gang with Labelling Field, Grey Glossy
-
918032505Integro Flow Frame, 1-Gang with Labelling Field, Anthracite Matt
-
918032568Integro Flow Frame, 1-Gang with Labelling Field Chrome Matt Lacquered
-
918272591Integro Flow-Frame with Imprint 'IP44' Brown Matt
-
919882506Integro Flow-Frame, 1-Gang, Hinged Cover and Labelling Field Grey Glossy
-
918282568Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Chrome Matt Lacquered
-
918282591Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Brown Matt
-
918282595Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Anthracite Matt
-
918282597Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Grey Glossy
-
918282599Integro Flow-Frame 1-Gang with Hinged Cover, Imprint IP44, Polar White Glossy
-
918192524Integro Flow Frame, 3-Gang Stainless Steel Lacquered
-
918192568Integro Flow Frame, 3-Gang Chrome Matt Lacquered
-
918192511Integro Flow Frame, 3-Gang Brown Matt
-
918192510Integro Flow Frame, 3-Gang Black Glossy
Technical characteristics
Electric current
-
Rated current20 A
Voltage
-
Rated voltage12 V
-
Nominal voltage12-24 V
-
Output voltage12-24 V
Frequency
-
Frequency50 - 50 Hz
Power
-
Output power240 W
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishGlossy
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height55.50 mm
-
Width55.50 mm
-
Built-in depth flush-mounted boxes46 mm
Connection
-
Connector/plug typeRing lug
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting
Equipment
-
Rotated central insertNo
-
With hinged lidNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related Systemsintegro
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

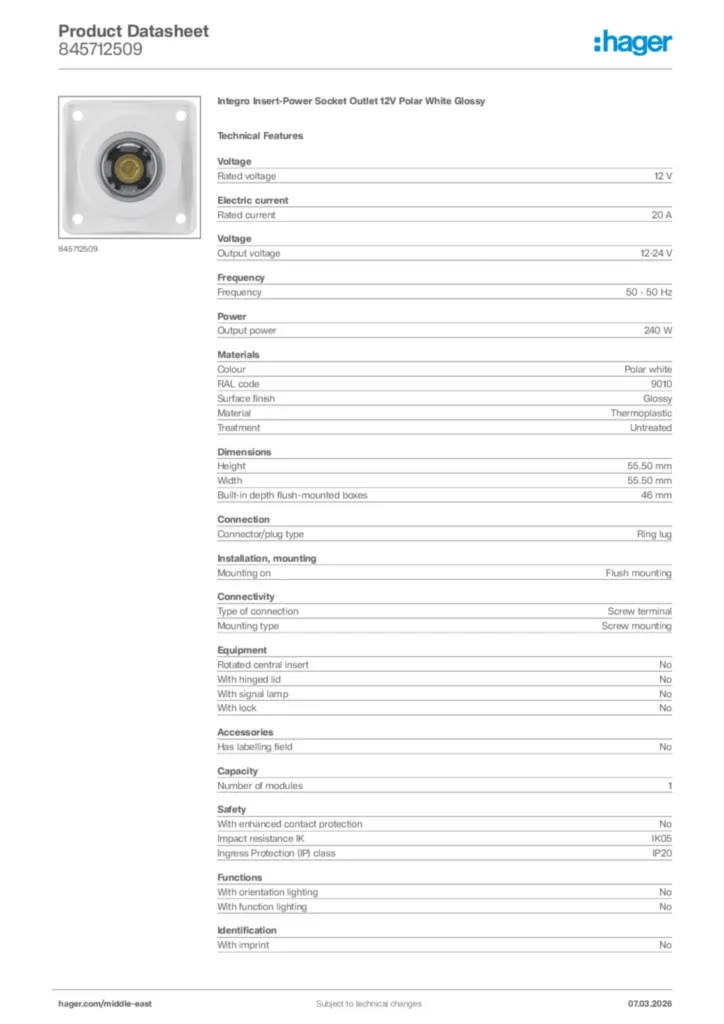

Product datasheet
Hager Product data sheet 845712509
Integro Insert-Power Socket Outlet 12V Polar White Glossy
PDF -
Declaration of conformity
EU Declaration of Conformity
dc24-1028
PDF264,71 kB
More documentation
