S.x KNX (TP+EASY) Movement detector module 2,20m 80262280
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Technical characteristics
Dimensions
-
Recommended installation height2.20 - 2.20 m
Settings
-
Supported configuration modeETS, easy
-
Minimal duty cycle10 s
Functions
-
Maximal duty cycle30 min
Connectivity
-
With bus system KNX radioNo
Voltage
-
Operating voltage over bus21 - 32 V
Scope of delivery
-
Bus connection includedYes
Electric current
-
Bus current consumption data transfer10 mA
Lighting
-
Response brightness adjustable5 - 1,000 lx
Detection
-
Detection angle adjustable45 - 90 °
-
Detection angle horizontal90 - 180
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
MaterialMetal, Plastic
Texts
-
Push buttonWith button for automatic/permanent ON/permanent OFF
-
Operating modeWith 3 operating modes: automatic/permanent ON/permanent OFF
-
FunctionPresence simulation, With party function
-
Installation modeWith spreader claws, With dismantling protection
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

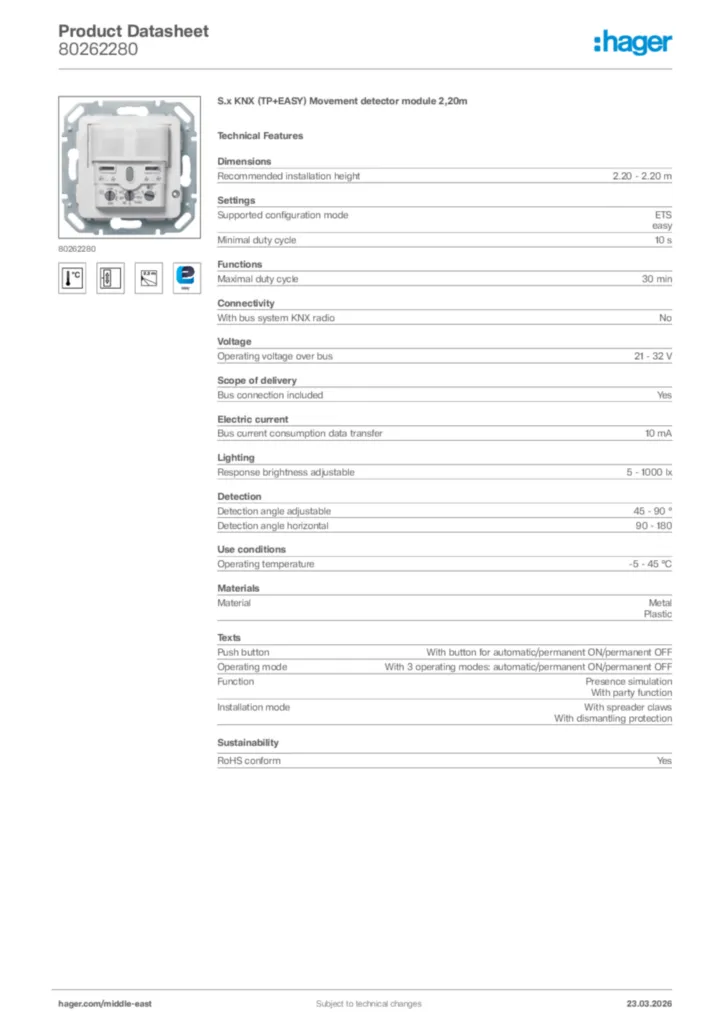

Hager Product data sheet 80262280
S.x KNX (TP+EASY) Movement detector module 2,20m
PDF -
Installation manual
Installation manual en-GB, tr-TR 2021-10-04
PDF1,28 MB -
KNX product database
ETS4-ETS5 (vers. 1.1) - KNX Database for KNX Motion detector with BCU
KNX product database International 2020-01-01
KNXPROD254,40 kB
ETS Database for 80262xxx
KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2023-08-25
KNXPROD254,40 kB -
Application Guide
Application description ETS for 802621xx-802622xx - Motion detector with bus coupling unit (EN, 2016-08), easy link
Application Guide en-GB, pl-PL 2016-08-04
PDF2,34 MB
Application description ETS for KNX Motion detector (EN, 2016-02)
Application Guide International 2016-02-09
PDF2,90 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-07-30
PDF257,09 kB
