IP-Control 75710004
EAN-Nr.
4011334318859
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
No longer available
Technical characteristics
Equipment
-
Web serverYes
Voltage
-
Operating voltage30 - 30 V
-
Type voltage supplyDC
Connectivity
-
Type of interface bus system/media gatewayLAN-systems interface
Settings
-
Supported configuration modeETS
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature0 - 35 °C
Controls and indicators
-
With LED indicationYes
Dimensions
-
Width144 mm
-
Depth64.50 mm
-
Number of width units8
Connection
-
Connector/plug typeDRA (DIN-rail Adapter)
Texts
-
EncodingAdministration of 50 users for the control of access authorisation
-
VoltageOperation with non-choked output of KNX voltage supply possible (pay attention to current consumption)
-
Type of connectionWith screw terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

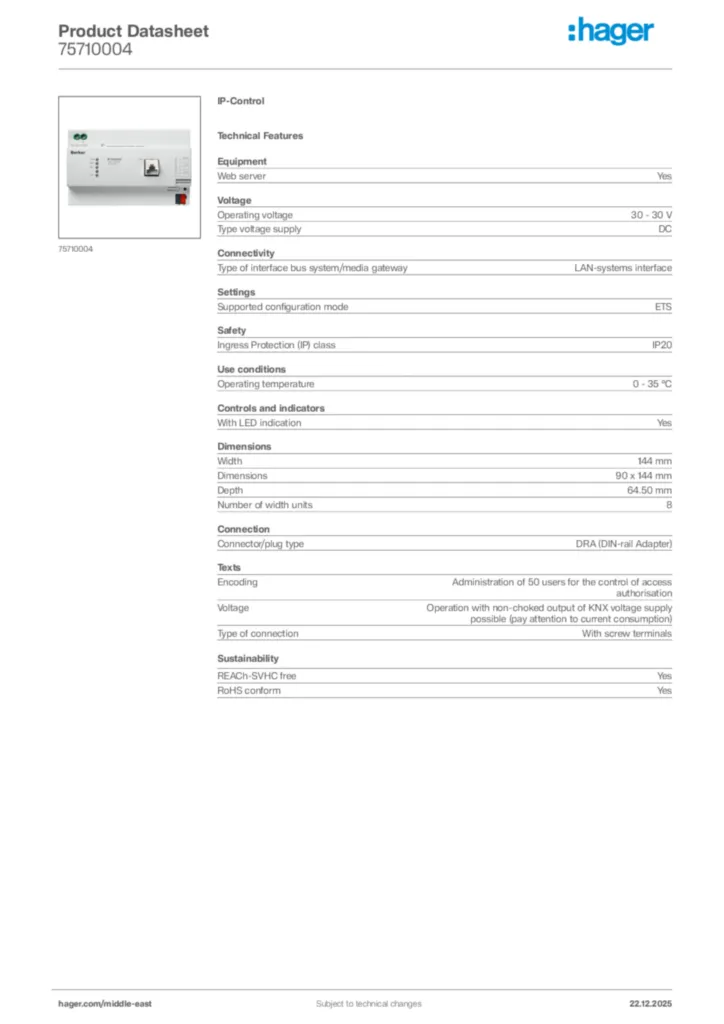

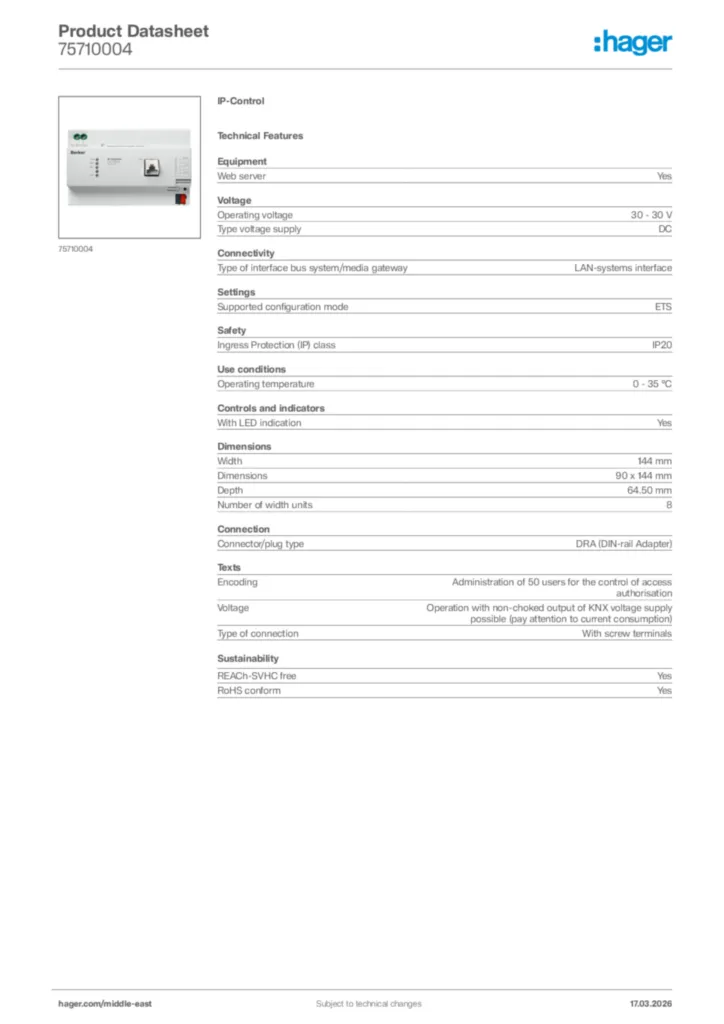

Product datasheet
Hager Product data sheet 75710004
IP-Control
PDF -
Tool
Discovery-Tool for IP-Control (java application, 2012-08)
Tool International 2023-10-30
ZIP243,32 kB
Discovery tool for IP control RMD - 75710004-75710036 (DE, 2012-08)
Tool de-DE 2023-10-30
ZIP243,26 kB
Editor themes for IP control RMD - 75710004-75710036, as from: 2014-04
Tool de-DE 2023-10-30
ZIP4,06 MB
Editor themes for IP control RMD - 75710004-75710036, as from: 2014-04
Tool de-DE 2023-10-30
ZIP2,08 MB
Firmware update for 75710004-75710036 - IP control RMD (DE, R4)
Tool de-DE 2023-10-30
ZIP14,41 MB
Firmware update for 75710004-75710036 - IP control RMD (EN, R7)
Tool en-GB, pl-PL 2023-10-30
ZIP35,50 MB
Firmware update for IP-Control from hardware version V5 (version R7, 2014-01)
Tool International 2023-10-30
ZIP35,58 MB
Masterproject for IP-Control (2011-09)
Tool International 2023-10-30
ZIP4,07 MB -
Application Guide
Application description ETS for 75710004-75710036 - IP control RMD (EN, 2012-01)
Application Guide en-GB, pl-PL 2011-09-22
PDF2,68 MB
Application description ETS for 75710004-75710036 - IP control RMD (EN, 2014-01)
Application Guide en-GB, pl-PL 2014-03-31
PDF36,20 kB
More documentation
