S.1/B.3/B.7 Push Button 2-gang, with Thermostat/Label, White/Polar White 75662780

EAN-Nr.
4011334283430
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

S.1/B.3/B.7 Push Button 2-gang, with Thermostat/Label, White/Polar White

75662780

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Must-have accessories

Previous
Previous
75040001
75040001
Bus coupling unit flush-mtd, KNX
Add to a list
Add to a list

Compatible products

  • Referenced by 152 products available

Referenced by

  • 10153004

    Frame 5gang, B.3, al./ant. matt, al. anodised
    0.00 €  / *
  • 10123025

    Frame 2gang, B.3, al. black/p. white matt, al. anodised
    0.00 €  / *
  • 10123046

    Frame 2gang, B.3, al. gold/p. white matt, al. anodised
    0.00 €  / *
  • 10123904

    Frame 2gang, B.3, al./p. white matt, al. anodised
    0.00 €  / *
  • 10133001

    Frame 3gang, B.3, al. brown/ant. matt, al. anodised
    0.00 €  / *
  • 10133004

    Frame 3gang, B.3, al./ant. matt, al. anodised
    0.00 €  / *
  • 10133005

    Frame 3gang, B.3, al. black/ant. matt, al. anodised
    0.00 €  / *
  • 10133016

    Frame 3gang, B.3, al. gold/ant. matt, al. anodised
    0.00 €  / *
  • 10133025

    Frame 3gang, B.3, al. black/p. white matt, al. anodised
    0.00 €  / *
  • 10133046

    Frame 3gang, B.3, al. gold/p. white matt, al. anodised
    0.00 €  / *
  • 10133904

    Frame 3gang, B.3, al./p. white matt, al. anodised
    0.00 €  / *
  • 10143001

    Frame 4gang, B.3, al. brown/ant. matt, al. anodised
    0.00 €  / *
  • 10143004

    Frame 4gang, B.3, al./ant. matt, al. anodised
    0.00 €  / *
  • 10143005

    Frame 4gang, B.3, al. black/ant. matt, al. anodised
    0.00 €  / *
  • 10143016

    Frame 4gang, B.3, al. gold/ant. matt, al. anodised
    0.00 €  / *
  • 10143025

    Frame 4gang, B.3, al. black/p. white matt, al. anodised
    0.00 €  / *
  • 10143046

    Frame 4gang, B.3, al. gold/p. white matt, al. anodised
    0.00 €  / *
  • 10143904

    Frame 4gang, B.3, al./p. white matt, al. anodised
    0.00 €  / *
  • 10153001

    Frame 5gang, B.3, al. brown/ant. matt, al. anodised
    0.00 €  / *
  • 10116914

    Frame 1gang, B.7, al./p. white matt, al. anodised
    0.00 €  / *

Technical characteristics

Installation, mounting
  • Mounting on
    Flush mounting
Use conditions
  • Operating temperature
    -5 - 45 °C
Functions
  • With room temperature controller
    Yes
Dimensions
  • Height
    55.30 mm
  • Width
    55.80 mm
  • Depth
    13.85 mm
Equipment
  • Number of actuation points
    6
Controls and indicators
  • With LED indication
    Yes
Materials
  • Colour
    White
  • RAL code
    1013
  • Material
    Thermoplastic
  • Surface finish
    Glossy
Accessories
  • Has labelling field
    Yes
Screen
  • With display
    Yes
Texts
  • Function
    For switch, push-button, dimmer, blind and thermostat functions, With valve protection function
  • Operating mode
    Controller operating modes: comfort, standby, night and frost/heat protection mode
  • Protection
    With dismantling protection
  • Temperature
    Temperature measurement via internal and/or external sensor with mean value formation

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

KNX push button 6 gang with LED gallery
PDF
10,73 MB
REACH declaration 75662780
PDF
RoHS report 75662780
PDF

Downloads

  • Image 75662780 | Hager

    Product Image 75662780

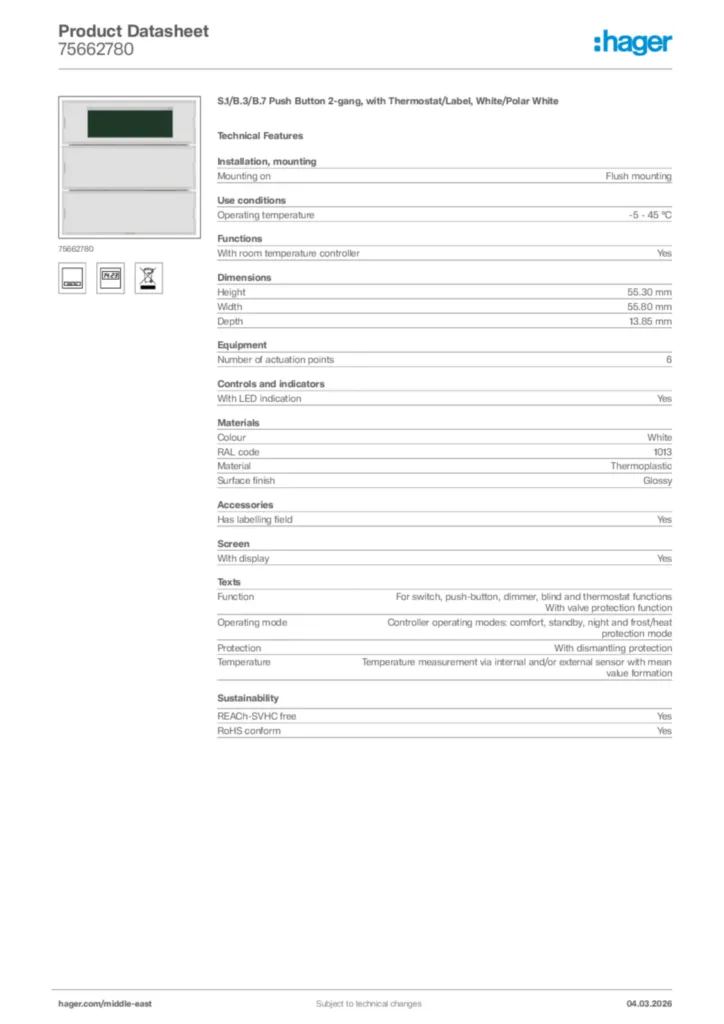

  • Product datasheet

    Image Hager Product data sheet 75662780 | Hager

    Hager Product data sheet 75662780

    S.1/B.3/B.7 Push Button 2-gang, with Thermostat/Label, White/Polar White

    PDF

  • Installation manual

    Image Manual for 756627xx-756637xx-756657xx - Push-button 2gang with thermostat (EN, 2021-12) | Hager

    Manual for 756627xx-756637xx-756657xx - Push-button 2gang with thermostat (EN, 2021-12)

    Installation manual en-GB 2022-09-12

    PDF
    1,35 MB

  • Tool

    Image Label templates (DesignPro 2000) for S.x/B.x touch sensors - 7516xx-7566xx, as from: 2013-01 | Hager

    Label templates (DesignPro 2000) for S.x/B.x touch sensors - 7516xx-7566xx, as from: 2013-01

    Tool de-DE 2023-10-30

    ZIP
    68,54 kB

  • KNX product database

    Image KNX plugin for 7566xx - Push-button with thermostat (V104) | Hager

    KNX plugin for 7566xx - Push-button with thermostat (V104)

    KNX product database International 2023-08-25

    EXE
    7,93 MB

  • Application Guide

    Image Application description ETS for 756627xx-756637xx-756657xx - Push-button with thermostat (EN, 2006-07) | Hager

    Application description ETS for 756627xx-756637xx-756657xx - Push-button with thermostat (EN, 2006-07)

    Application Guide en-GB, pl-PL 2020-01-01

    PDF
    2,04 MB

  • Declaration of conformity

    Image Declaration of Conformity | Hager

    Declaration of Conformity

    Declaration of conformity International 2021-03-05

    PDF
    261,26 kB
    Image Declaration of Conformity | Hager

    Declaration of Conformity

    Declaration of conformity International 2021-03-05

    PDF
    262,21 kB
