Switch act 8g16A C-load NO w/curr detec 75318005
EAN-Nr.
4011334287797
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Connectivity
-
With bus system KNXYes
-
With bus system KNX radioNo
Settings
-
Supported configuration modeETS
Dimensions
-
Height90 mm
-
Width144 mm
-
Depth70 mm
-
Number of width units8
Materials
-
ColourLight grey
Equipment
-
Radio frequency bidirectionalNo
Electric current
-
Rated current16 A
Power
-
230 V incandescent and halogen lamp3,680 W
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Texts
-
Type of connectionWith screw terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

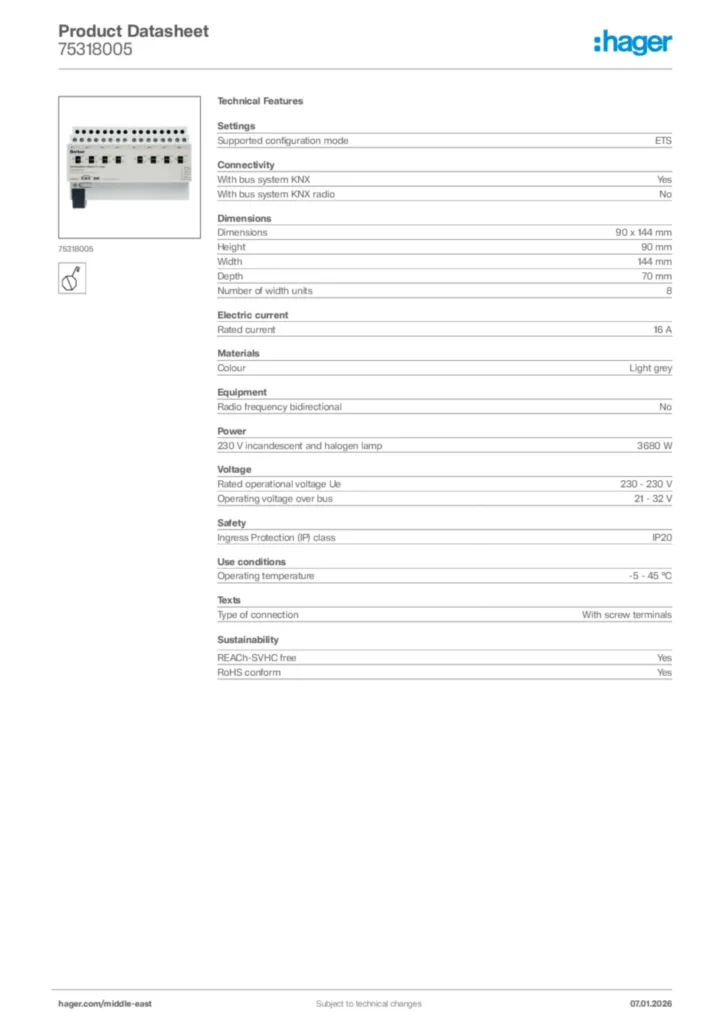

Hager Product data sheet 75318005
Product data sheet en-GB 2026-01-07
PDF -
Installation manual
Manual for 75312008-75314015-75314016-75318004-75318005 - Switch actuators RMD - 2gang, 4gang, 8gang and 4gang, 8gang for C load (EN, 2012-09)
Installation manual en-GB 2020-01-01
PDF330,97 kB -
KNX product database
KNX Database (from ETS2) for 75318005 - Switch actuator 8gang RMD for C load (2007-01)
KNX product database International 2023-08-25
VD2146,25 kB
KNX Database (from ETS2) for 75318005 - Switch actuator 8gang RMD for C load (2007-03)
KNX product database International 2023-08-25
VD2146,25 kB
KNX Database (from ETS3) for 75318005 - Switch actuator 8gang RMD for C load (2007-01)
KNX product database International 2023-08-25
VD4192,25 kB
KNX Database (from ETS3) for 75318005 - Switch actuator 8gang RMD for C load (2007-01)
KNX product database International 2023-08-25
VD4146,91 kB -
Application Guide
Application description ETS for 75318005 - Switch actuator 8gang RMD for C load (EN, 2007-01)
Application Guide en-GB 2020-01-01
PDF984,81 kB
