DIMMER 4 CHANNELS 300W SYSTEMLINK WITH PARALLELIZATION 75314124

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Documentations

Download the sheet

Technical characteristics

Operating voltage over bus

21 - 32 V
Input voltage

230 - 230 V
System supply voltage

30 V DC Via bus
Auxiliary tension

230 - 230 V

Bus current consumption data transfer

2.40 mA

Frequency

50 - 60 Hz

Operating temperature

-5 - 45 °C

Cross-section flexible conductor

0.75 - 2.5 mm²
Cross-section rigid conductor

0.75 - 2.5 mm²

Number of outputs

4
Type of dimmer

Dimming actuator

Number of modules

8

Power incandescent lamp

5 - 300 W
Power of variator

5 - 300 W

With bus system KNX radio

No
Type of connection

quickconnect

Supported configuration mode

ETS

Fuse

Overheating protection (display using LEDs), Short-circuit proof and overload-proof (display using LEDs)
Operating mode

Load coupling of 4 channels to increase output power using parallel connection of the outputs
Dimming principle

Phase cut-on or cut-off according to load type, self-learning, Minimum/maximum dimming values per channel settable on device
Function

Learning function for optimised operation of compact fluorescent lamps and LED luminaires can be activated via the bus
Type of connection

With quickconnect plug-in terminals
Labelling

Large labelling field
Protection

With overheating, overload and short-circuit protection

Downloads

Product Image 75314124
Product datasheet

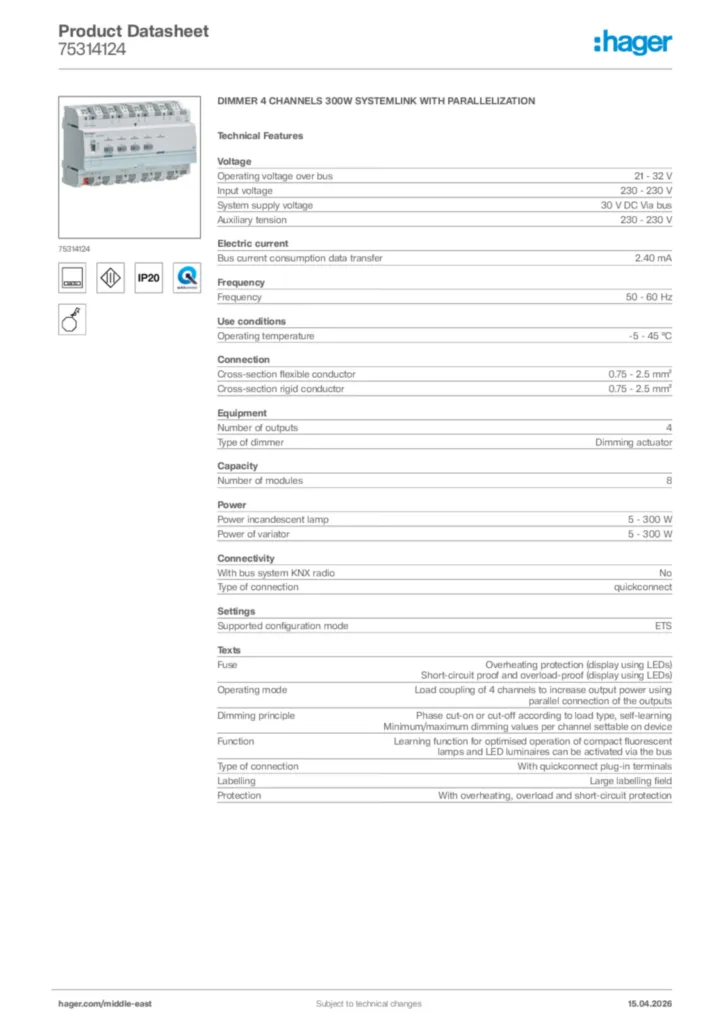

Hager Product data sheet 75314124
