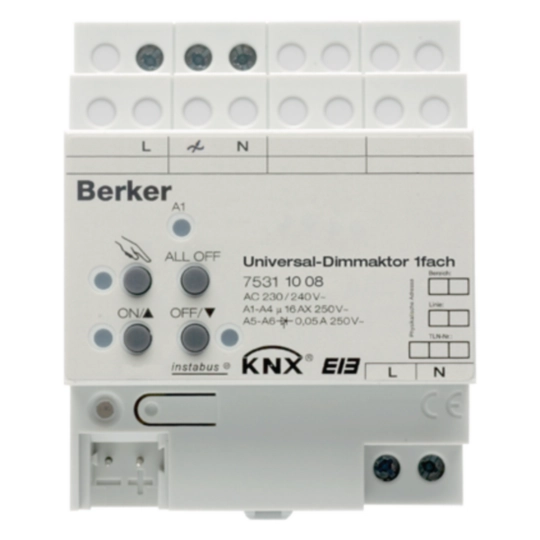

KNX UNIVERSAL-DIMMAKTOR 1FACH REG 75311008
EAN-Nr.
4011334345503
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Voltage
-
Operating voltage over bus21 - 32 V
-
Auxiliary tension230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-5 - 45 °C
Equipment
-
Number of outputs1
Capacity
-
Number of modules4
Power
-
Power of variator20 - 500 W
Connectivity
-
With bus system KNX radioNo
Settings
-
Supported configuration modeETS
Texts
-
FuseShort-circuit and overload-proof (electronic fuse)
-
Dimming principleOperating with LED and energy-saving lamps according to appropriate ETS configuration, Phase cut-on or cut-off according to load type, self-learning
-
FunctionOperating hours meter as forward or backward counter per channel, Stairway function with switch-off warning according to DIN 18015-2
-
Type of connectionWith screw terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

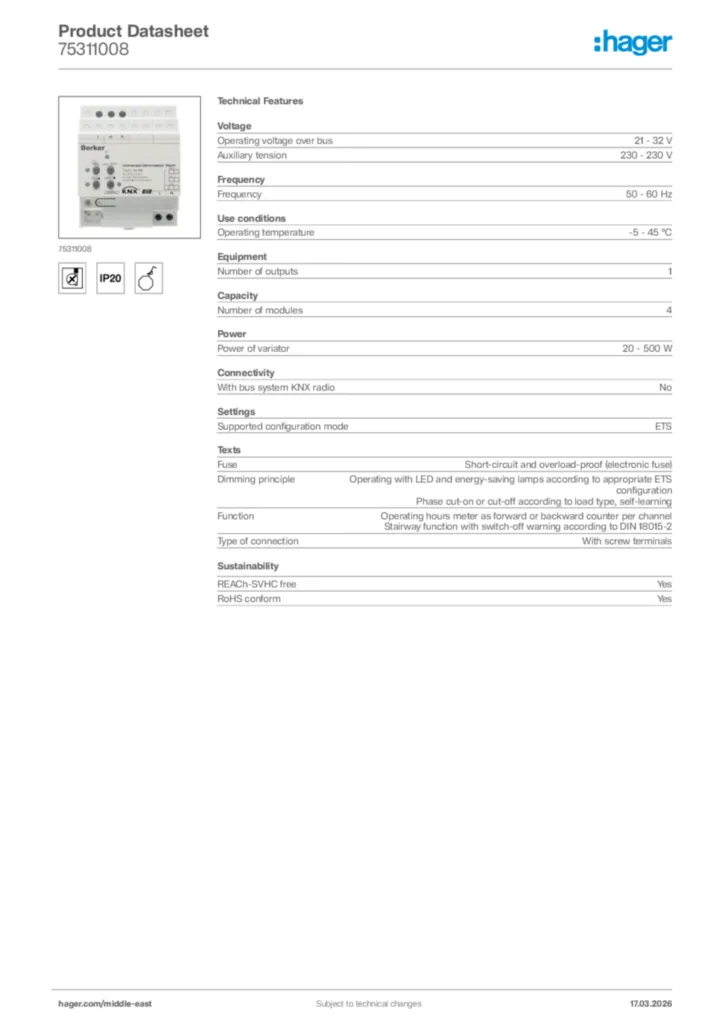

Hager Product data sheet 75311008
Product data sheet en-GB 2025-12-22
PDF -
Installation manual
Manual for 75311008-75312013-75314021 - Universal dim actuators RMD (EN, 2012-11)
Installation manual en-GB 2020-01-01
PDF644,80 kB -
KNX product database
KNX Database (from ETS3) for 753110xx-753120xx-753140xx - Universal dim actuator (2012-12)
KNX product database International 2023-08-25
VD4539,06 kB
KNX Database (from ETS3) for 75311008-75312013-75314021 - Universal dim actuator RMD (2013-01)
KNX product database International 2023-08-25
VD4437,84 kB
KNX Database (from ETS3) for 75311008-75312013-75314021 - Universal dim actuator RMD (2013-01)
KNX product database International 2023-08-25
VD4513,33 kB -
Application Guide
Application description ETS for 75311008-75312013-75314021 - Universal dim actuator RMD (EN, 2012-12)
Application Guide en-GB 2012-12-19
PDF1,06 MB
