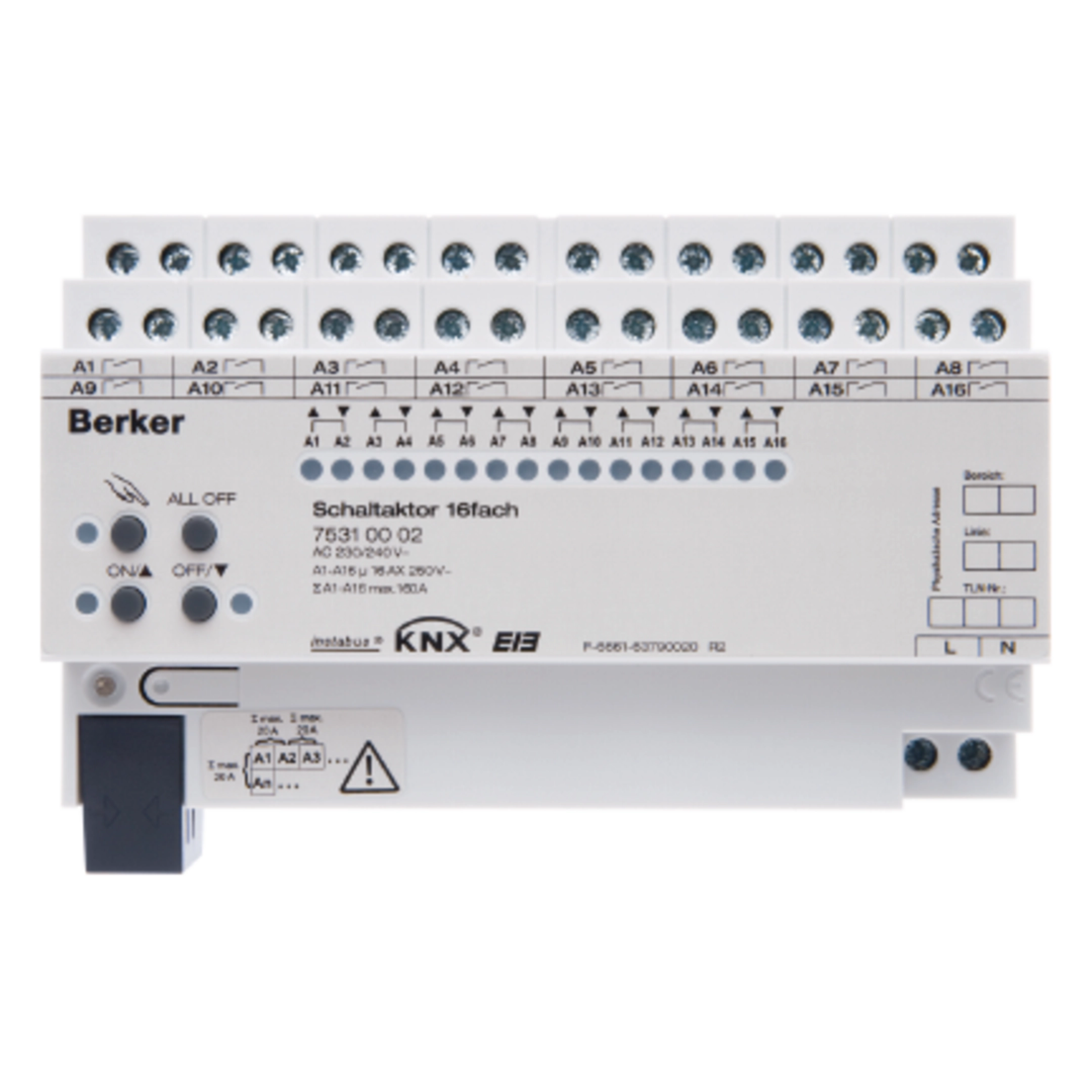

Switch act./shutter act. 16/8g 16A NO 75310002
EAN-Nr.
4011334287759
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Connectivity
-
With bus system KNXYes
-
With bus system KNX radioNo
Settings
-
Supported configuration modeETS
Dimensions
-
Height90 mm
-
Width144 mm
-
Depth70 mm
-
Number of width units8
Materials
-
ColourLight grey
Equipment
-
Radio frequency bidirectionalNo
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Power
-
Power incandescent lamp 230 V3,000 - 3,000 W
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Texts
-
FunctionWith positioning function for blind and lamella position, With safety functions e.g. for wind sensor, With sun shade function
-
Type of connectionWith screw terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

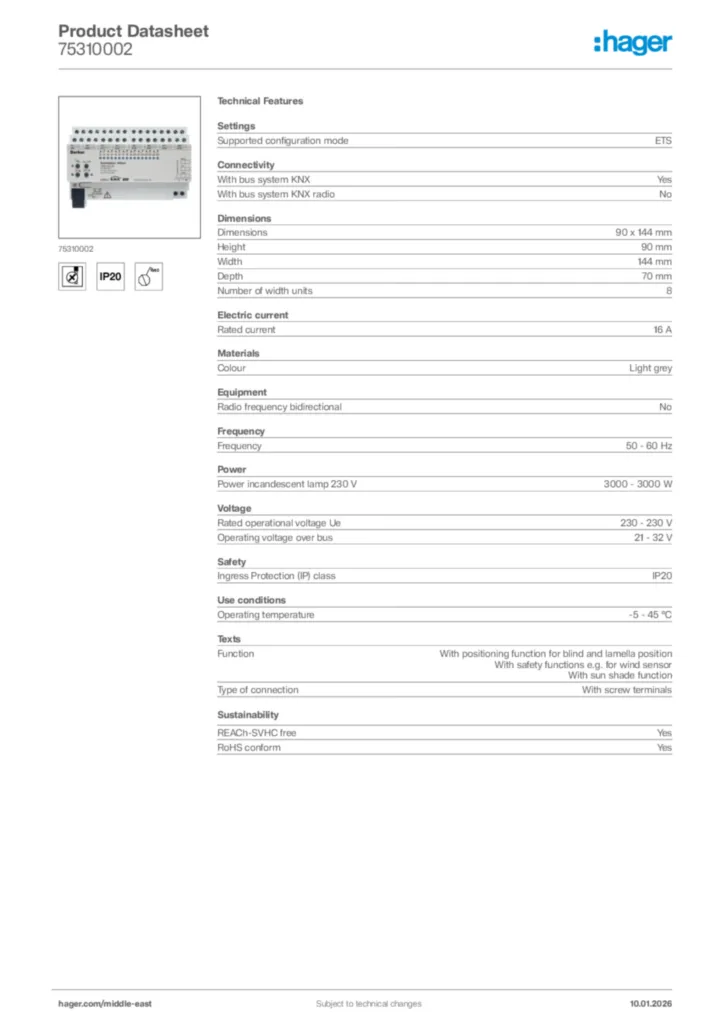

Product datasheet
Hager Product data sheet 75310002
Product data sheet en-GB 2026-01-10
PDF -
Installation manual
Manual for 75310002-75318003 - Switch actuator/blind actuators RMD (EN, 2010-08)
Installation manual en-GB 2020-01-01
PDF538,54 kB -
KNX product database
KNX Database (from ETS2) for 75310002 - Switch actuator/blind actuator 16-/8gang RMD (2009-05)
KNX product database International 2023-08-25
VD2577,72 kB
KNX Database (from ETS2) for 75310002 - Switch actuator/blind actuator 16-/8gang RMD (2010-09)
KNX product database International 2023-08-25
VD2808,44 kB
KNX Database (from ETS3) for 75310002 - Switch actuator/blind actuator 16-/8gang RMD (2009-05)
KNX product database International 2023-08-25
VD4574,57 kB
KNX Database (from ETS3) for 75310002 - Switch actuator/blind actuator 16-/8gang RMD (2010-09)
KNX product database International 2023-08-25
VD4945,97 kB -
Application Guide
Application description ETS for 75310002-75318003 - Switch actuator/blind actuator RMD (EN, 2010-09)
Application Guide en-GB 2020-01-01
PDF1,05 MB
More documentation
