KNX cont. comf 1.1 m, KNX - S.1, p. white glossy 75261559
EAN-Nr.
4011334280859
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
75040001
Bus coupling unit flush-mtd, KNX
Technical characteristics
Dimensions
-
Installation height1.10 - 1.10 m
-
Recommended installation height1.10 - 1.10 m
Settings
-
Supported configuration modeETS
-
Minimal duty cycle0.13 s
Functions
-
Maximal duty cycle18,360 min
Connectivity
-
With bus system KNX radioNo
Scope of delivery
-
Bus connection includedNo
Detection
-
Detection angle180 - 180
-
Detection angle horizontal0 - 180
Use conditions
-
Operating temperature-5 - 45 °C
Materials
-
MaterialThermoplastic
Texts
-
FunctionFunctions for lighting operating mode: switching, value transmitter and light scene call, Parameter definable lock function
Downloads
-

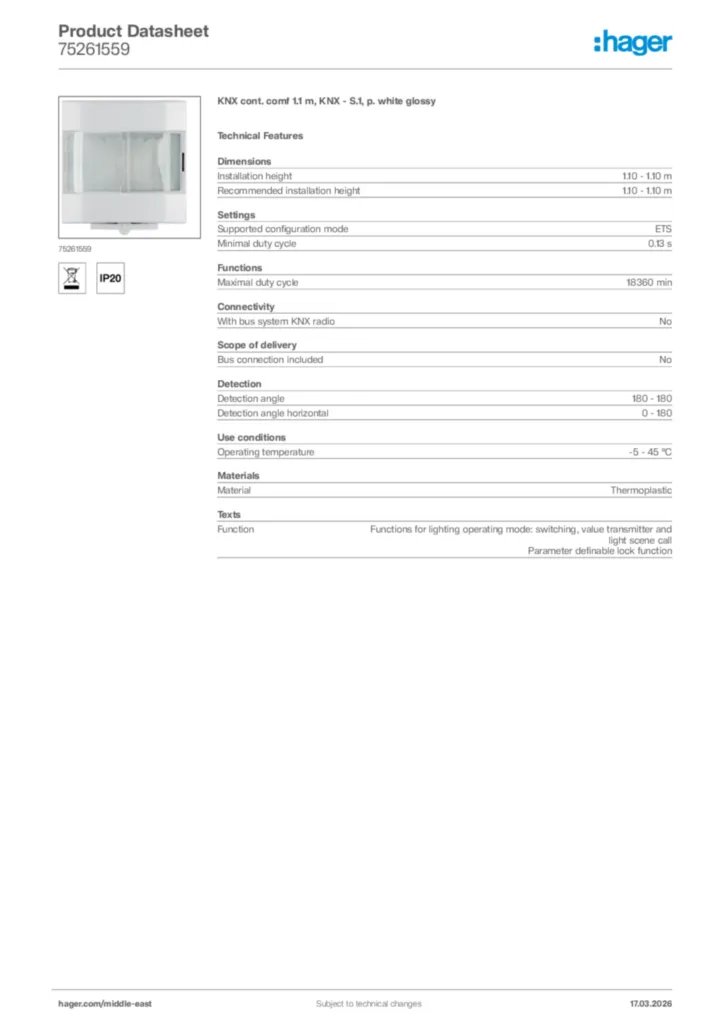

Product datasheet
Hager Product data sheet 75261559
KNX cont. comf 1.1 m, KNX - S.1, p. white glossy
PDF -
Installation manual
Manual for 7526xx - KNX controller 1.1m /2.2 m, KNX controller comfort 1.1m /2.2 m (DE-EN-NL-FR-NO, 2002-12)
Installation manual en-GB, fr-FR, de-DE, nl-NL, nn-NO 2020-01-01
PDF283,81 kB -
KNX product database
KNX Database (from ETS2) for 752615xx - KNX controller comfort (2006-04)
KNX product database International 2023-08-25
VD148,60 kB
KNX Database (from ETS2) for 752615xx - KNX controller comfort (2006-04)
KNX product database International 2023-08-25
VD135,11 kB -
Application Guide
Application description ETS for 75261xx - KNX controller (EN, 2000-12)
Application Guide en-GB 2020-01-01
PDF373,76 kB
Application description ETS for 752615xx-752616xx - KNX controller comfort (EN, 2004-01)
Application Guide en-GB 2020-01-01
PDF428,64 kB
