Berker S.1/B.3/B.7 Push Button 4-gang, Comfort with Label, Anthracite/Aluminium 75164785
Login to create a product list
You need to be logged into your myHager account to create product lists
No longer available
Complete your system
Must-have accessories
See all (11)
Mandatory accessories
-
75040001Bus coupling unit flush-mtd, KNX
-
13099949Frame l. cut-out, S.1, ant., matt
-
13099939Frame l. cut-out, S.1, al. matt
-
13096904Frame l. cut-out, B.7, al./ant. matt, al. anodised
-
13096626Frame l. cut-out, B.7, ant. matt, lacq.
-
13096616Glass frame l. cut-out, B.7, black/ant. matt
-
13096424Frame l. cut-out, B.7, al., matt, lacq.
-
13093606Frame l. cut-out, B.7, stainless steel/ant. matt, metal brushed
-
13093016Frame l. cut-out, B.3, al. gold/ant. matt, al. anodised
-
13093005Frame l. cut-out, B.3, al. black/ant. matt, al. anodised
-
13093004Frame l. cut-out, B.3, al./ant. matt, al. anodised
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Functions
-
With room temperature controllerNo
Dimensions
-
Height110.70 mm
-
Width56 mm
-
Depth25.30 mm
Equipment
-
Number of actuation points8
Controls and indicators
-
With LED indicationYes
Materials
-
ColourAnthracite
-
RAL code7016
-
MaterialThermoplastic
-
Surface finishGlossy
Accessories
-
Has labelling fieldYes
Screen
-
With displayNo
Texts
-
FunctionFor switch, push-button, dimmer and shutter functions
-
ProtectionWith dismantling protection
Downloads
-
Product datasheet

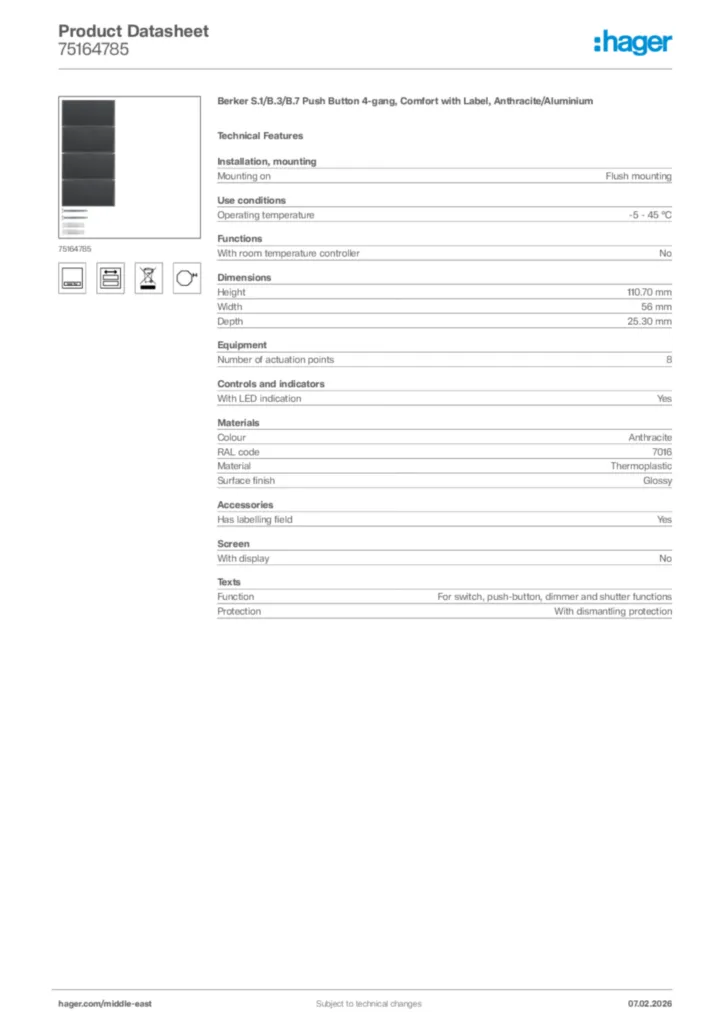

Hager Product data sheet 75164785
Berker S.1/B.3/B.7 Push Button 4-gang, Comfort with Label, Anthracite/Aluminium
PDF -
Installation manual
Manual for 7516xx-756641xx-756680xx - Push-button 1gang (DE-EN-NL-FR-NO-ES, 2005-11)
Installation manual en-GB, es-ES, fr-FR, de-DE, nl-NL, nn-NO 2020-01-01
PDF356,79 kB
Manual for 7516xx - Push-button 1gang comfort (DE-EN-NL-FR-NO-ES, 2005-11)
Installation manual en-GB, es-ES, fr-FR, de-DE, nl-NL, nn-NO 2020-01-01
PDF413,62 kB -
Tool
Label templates (DesignPro 2000) for S.x/B.x touch sensors - 7516xx-7566xx, as from: 2013-01
Tool de-DE 2023-10-30
ZIP68,54 kB -
KNX product database
KNX Database (from ETS2) for 751617xx - Push-button 1gang comfort (2006-07)
KNX product database International 2023-08-25
VD1293,38 kB
KNX Database (from ETS2) for 751617xx - Push-button 1gang comfort (2007-12)
KNX product database International 2023-08-25
VD2250,36 kB
KNX Database (from ETS2) for 751647xx - Push-button 4gang comfort (2006-07)
KNX product database International 2023-08-25
VD1177,24 kB -
Application Guide
Application description ETS for 751617xx-751627xx-751637xx-751647xx - Push-button comfort (EN, 2006-07)
Application Guide en-GB 2020-01-01
PDF198,06 kB
