Push-button, 2-gang, with labelling fie 75162370
EAN-Nr.
4011334283270
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Complete your system
Must-have accessories
75040001
Bus coupling unit flush-mtd, KNX
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Functions
-
With room temperature controllerNo
Dimensions
-
Height55.10 mm
-
Width70.50 mm
-
Depth25.20 mm
Equipment
-
Number of actuation points4
Controls and indicators
-
With LED indicationYes
Materials
-
ColourPolar white
-
RAL code9010
-
MaterialMetal, Plastic
-
Surface finishGlossy
Accessories
-
Has labelling fieldYes
Screen
-
With displayNo
Texts
-
FunctionFor switch, push-button, dimmer and shutter functions
-
ProtectionWith dismantling protection
Downloads
-

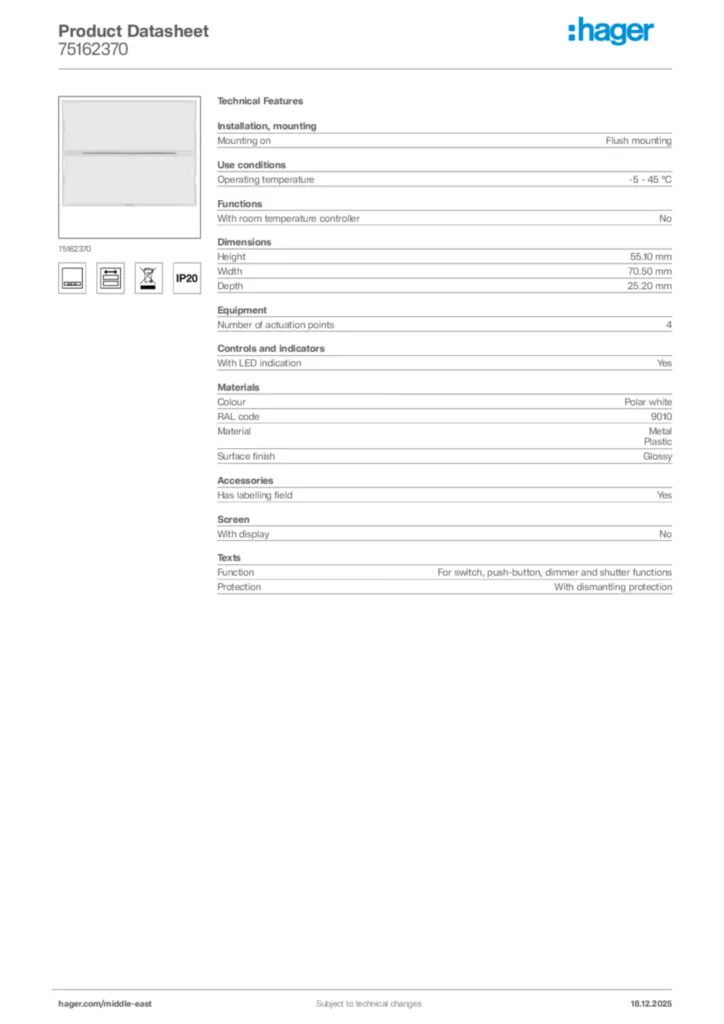

Product datasheet
Hager Product data sheet 75162370
Product data sheet en-GB 2025-11-08
PDF -
Installation manual
Manual for 7516xx-756641xx-756680xx - Push-button 1gang (DE-EN-NL-FR-NO-ES, 2005-11)
Installation manual en-GB, es-ES, fr-FR, de-DE, nl-NL, nn-NO 2020-01-01
PDF356,79 kB -
Tool
Label templates (DesignPro 2000) for Kx touch sensors - 7516xx-7566xx, as from: 2013-01
Tool de-DE 2023-10-30
ZIP68,63 kB -
KNX product database
KNX Database (from ETS2) for 751613xx - Push-button 1gang (2006-07)
KNX product database International 2023-08-25
VD1104,71 kB
KNX Database (from ETS2) for 751613xx - Push-button 1gang (2007-12)
KNX product database International 2023-08-25
VD279,21 kB
KNX Database (from ETS2) for 751623xx - Push-button 2gang (2006-07)
KNX product database International 2023-08-25
VD1122,07 kB -
Application Guide
Application description ETS for 751623xx - Push-button 2gang (EN, 2006-06)
Application Guide en-GB 2020-01-01
PDF119,68 kB
