    • Home
    • Catalog
    • Wiring accessories
    • Berker K.1
    • Sockets - Berker K.1
    • 6765097009
    EAN
    4011334362791
    Packaging
    10
    • Sockets - Berker K.1

    Soc.out. earth.pin+control LED,enhncd contact prot.,screw-in lift term.,K.1,wh 6765097009

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Soc.out. earth.pin+control LED,enhncd contact prot.,screw-in lift term.,K.1,wh

    6765097009

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Cover frame for domestic switching devices 9 products available

    Compatible products

    • Referenced by 23 products available

    Complete your system

    • Cover frame for domestic switching devices
    • 13237009

      Frame 2gang vert., K.1, p. white glossy

      €0.00  / *
    • 13737009

      Frame 3gang hor., K.1, p. white glossy

      €0.00  / *
    • 13837009

      Frame 4gang hor., K.1, p. white glossy

      €0.00  / *
    • 13937009

      Frame 5gang hor., K.1, p. white glossy

      €0.00  / *
    • 13337009

      Frame 3gang vert., K.1, p. white glossy

      €0.00  / *
    • 13437009

      Frame 4gang vert., K.1, p. white glossy

      €0.00  / *
    • 13537009

      Frame 5gang vert., K.1, p. white glossy

      €0.00  / *
    • 13637009

      Frame 2gang hor., K.1, p. white glossy

      €0.00  / *
    • 13137009

      Frame 1gang, K.1, p. white glossy

      €0.00  / *

    Referenced by

    • 13637006

      Frame 2gang hor., K.1, ant. matt, lacq.

      €0.00  / *
    • 13137009

      Frame 1gang, K.1, p. white glossy

      €0.00  / *
    • 13637009

      Frame 2gang hor., K.1, p. white glossy

      €0.00  / *
    • 13537006

      Frame 5gang vert., K.1, ant. matt, lacq.

      €0.00  / *
    • 13437006

      Frame 4gang vert., K.1, ant. matt, lacq.

      €0.00  / *
    • 13337006

      Frame 3gang vert., K.1, ant. matt, lacq.

      €0.00  / *
    • 13937006

      Frame 5gang hor., K.1, ant. matt, lacq.

      €0.00  / *
    • 13837006

      Frame 4gang hor., K.1, ant. matt, lacq.

      €0.00  / *
    • 13737006

      Frame 3gang hor., K.1, ant. matt, lacq.

      €0.00  / *
    • 13097009

      Frame l. cut-out, K.1, p. white glossy

      €0.00  / *
    • 13537009

      Frame 5gang vert., K.1, p. white glossy

      €0.00  / *
    • 13437009

      Frame 4gang vert., K.1, p. white glossy

      €0.00  / *
    • 13337009

      Frame 3gang vert., K.1, p. white glossy

      €0.00  / *
    • 13937009

      Frame 5gang hor., K.1, p. white glossy

      €0.00  / *
    • 13837009

      Frame 4gang hor., K.1, p. white glossy

      €0.00  / *
    • 13737009

      Frame 3gang hor., K.1, p. white glossy

      €0.00  / *
    • 13237006

      Frame 2gang vert., K.1, ant. matt, lacq.

      €0.00  / *
    • 13137006

      Frame 1gang, K.1, ant. matt, lacq.

      €0.00  / *
    • 13237009

      Frame 2gang vert., K.1, p. white glossy

      €0.00  / *
    • 13097006

      Frame l. cut-out, K.1, ant. matt, lacq.

      €0.00  / *

    Technical properties

    Voltage
    • Rated voltage
      250 V
    Electric current
    • Rated current IN
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Materials
    • Colour
      Polar white
    • RAL code
      Similar to RAL 9010
    • Surface finish
      Glossy
    • Material
      Thermoplastic
    • Treatment
      Untreated
    Dimensions
    • Height
      71 mm
    • Width
      71 mm
    • Built-in depth
      32 mm
    Installation, mounting
    • Mounting on
      Flush mounting
    Connectivity
    • Type of connection
      Screw terminal
    • Mounting type
      Screw mounting, Claw mounting
    Equipment
    • Connector/plug type socket outlet
      Earthing pin
    • Rotated central insert
      No
    • With hinged lid
      No
    • With round protective earth pin
      Yes
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    Capacity
    • Number of modules
      1
    Controls and indicators
    • Type of lighting for the installation devices
      Integrated operating control light
    Safety
    • With enhanced contact protection
      Yes
    • Ingress Protection (IP) class
      IP20
    Functions
    • With orientation lighting
      No
    • With function lighting
      Yes
    Identification
    • With imprint
      No

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration 6765097009
    PDF
    Hager RoHS report 6765097009
    PDF

    Downloads

    • Image 6765097009  | Hager

      Product Image 6765097009

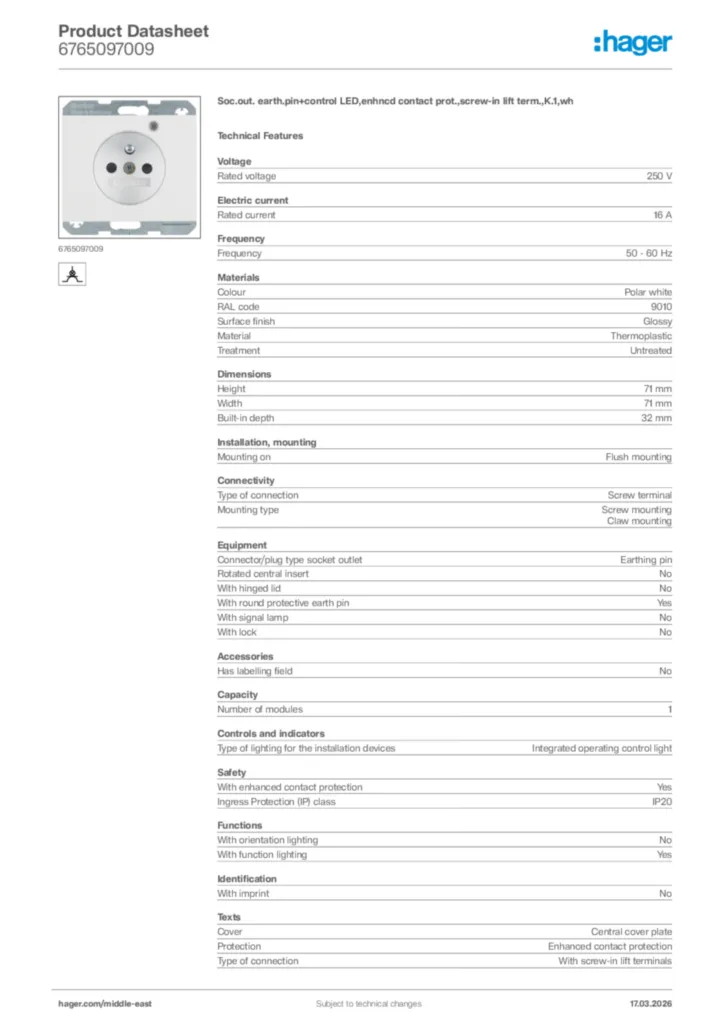

    • Product datasheet

      Image Hager Product data sheet 6765097009  | Hager

      Hager Product data sheet 6765097009

      Soc.out. earth.pin+control LED,enhncd contact prot.,screw-in lift term.,K.1,wh

      PDF
    • Declaration of conformity

      Image EU Declaration of Conformity  | Hager

      EU Declaration of Conformity

      dc26-1139

      PDF
      383,00 kB
    More documentation

    Discover more of this product range

      5
    • 1
      3313077006 - Centre plate f. soc.out. BRITISH ST., can be switched off, K.1, ant. matt, lacq.
      3313077006
      Centre plate f. soc.out. BRITISH ST., can be switched off, K.1, ant. matt, lacq.
    • 2
      47387009 - SCHUKO soc. out., enhncd contact prot., K.1, p. white glossy
      47387009
      SCHUKO soc. out., enhncd contact prot., K.1, p. white glossy
    • 3
      80960379 - Cover for 2gang for push-button module, clearlenses, K.1, p. white glossy
      80960379
      Cover for 2gang for push-button module, clearlenses, K.1, p. white glossy
    • 4
      6765107006 - Soc.out. earth.pin+LED orient.,enhncd contact prot.,screw-in lift term.,K.1,ant.
      6765107006
      Soc.out. earth.pin+LED orient., enhncd contact prot., screw-in lift term., K.1, ant.
    • 5
      47387006 - SCHUKO soc. out., enhncd contact prot., K.1, ant. matt, lacq.
      47387006
      SCHUKO soc. out., enhncd contact prot., K.1, ant. matt, lacq.
