Soc.out. earth.pin+control LED,enhncd contact prot.,screw-in lift term.,R.1.3,wh 6765092089
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Complete your system
Optional accessories
-
Cover frame for domestic switching devices 10 products available
Complete your system
-
10112189Frame 1gang, R.1, p. white glossy
-
10122189Frame 2gang, R.1, p. white glossy
-
10132189Frame 3gang, R.1, p. white glossy
-
10142189Frame 4gang, R.1, p. white glossy
-
10112289Frame 1gang, R.3, p. white glossy
-
10122289Frame 2gang, R.3, p. white glossy
-
10132289Frame 3gang, R.3, p. white glossy
-
10142289Frame 4gang, R.3, p. white glossy
-
10152189
Frame 5gang, R.1, p. white glossy
-
10152289Frame 5gang, R.3, p. white glossy
Technical characteristics
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishGlossy
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Number of units1
-
Built-in depth32 mm
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletEarthing pin
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinYes
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Controls and indicators
-
Type of lighting for the installation devicesIntegrated operating control light
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingYes
Identification
-
With imprintNo
-
Related SystemsR.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

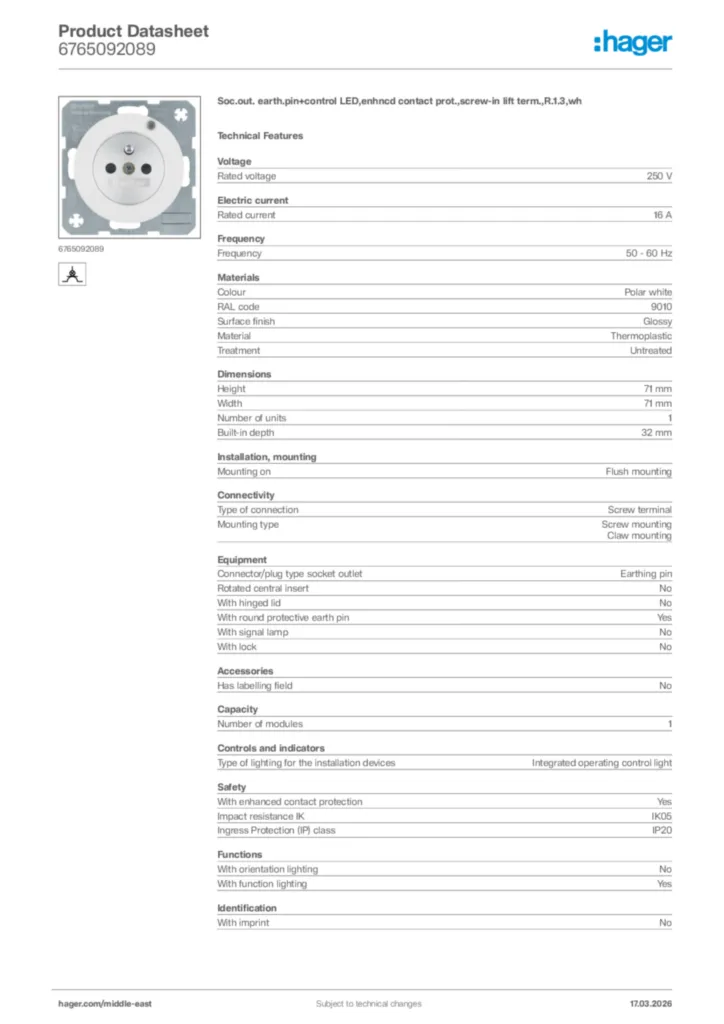

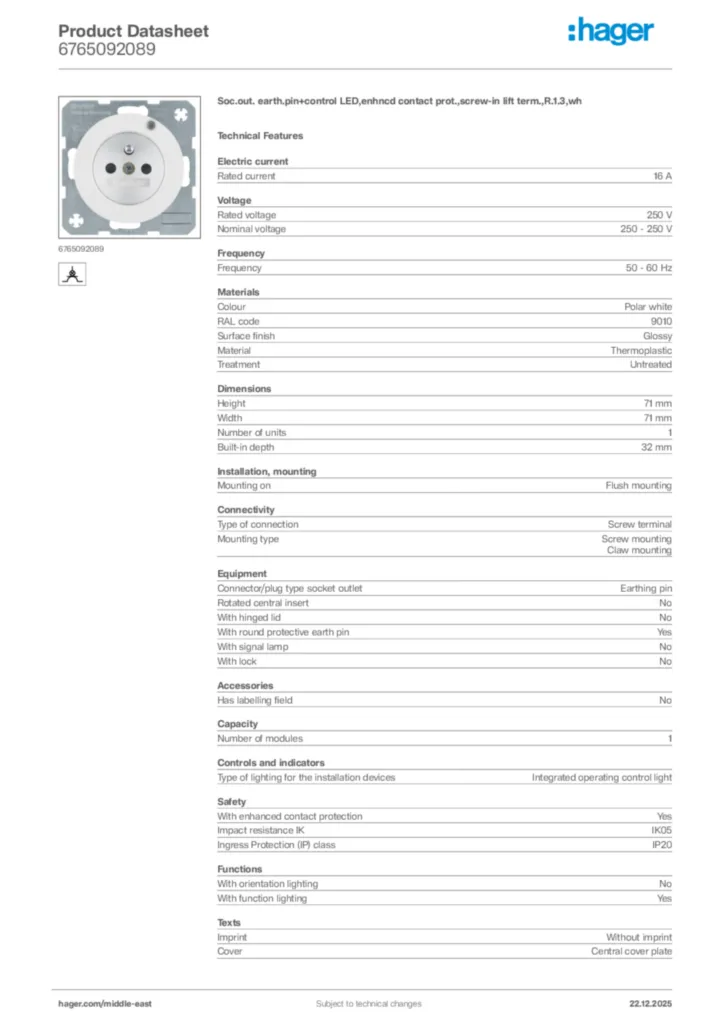

Product datasheet
Hager Product data sheet 6765092089
Soc.out. earth.pin+control LED,enhncd contact prot.,screw-in lift term.,R.1.3,wh
PDF -
Declaration of conformity
EU Declaration of conformity
dc26-1061
PDF361,53 kB
