Insert of LED signal, red/green lighting surf.-mtd/flush-mtd, W.1, grey matt 51733515
EAN-Nr.
4011334390541
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (7)
Optional accessories
-
Labelling material for domestic switching devices 2 products available
Mandatory accessories
-
13303505Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
13293515Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
-
6719323505Surface-mtd housing 2gang hor., frame surface-mtd, W.1 ECO, grey/light grey matt
-
6118913505W.1 ECO 1G box empty grey
-
6719333505Surface-mtd housing 2gang vert., frame surface-mtd, W.1 ECO, grey matt
-
13293505Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
13283505Frame 1gang for flush-mtd inst., sealing, W.1 ECO, light grey matt
Technical characteristics
Voltage
-
Rated voltage230 V
Frequency
-
Frequency50 - 60 Hz
Lighting
-
Type of lampLED
Materials
-
ColourGrey
-
RAL code7011
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth48 mm
Connectivity
-
Mounting typeScrew mounting
Safety
-
Ingress Protection (IP) classIP55
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

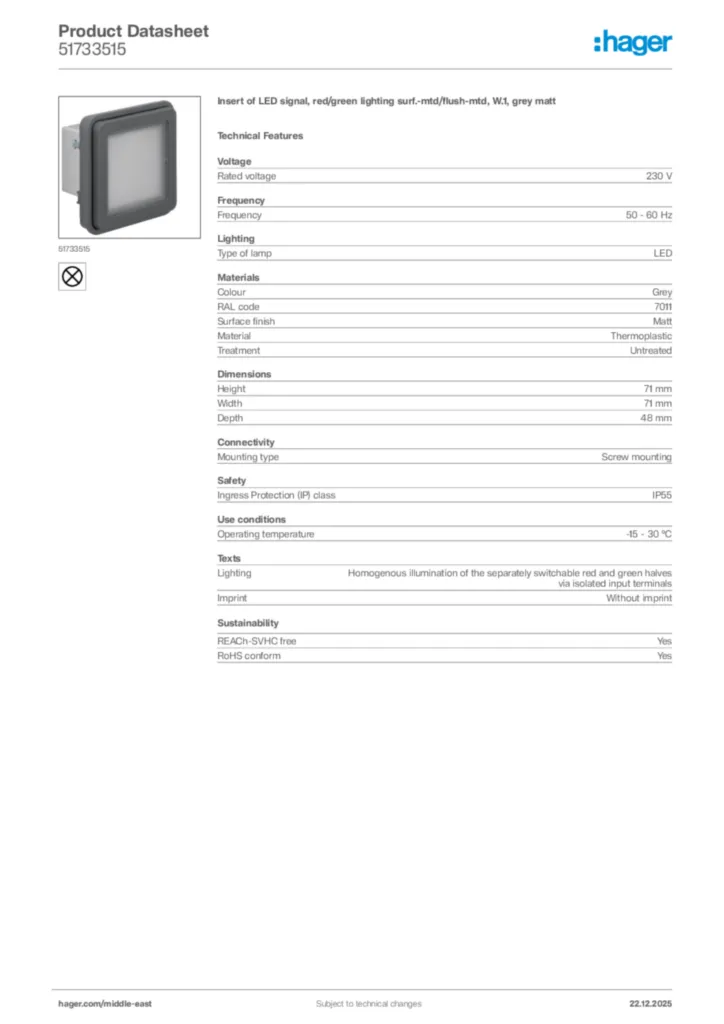

Product datasheet
Hager Product data sheet 51733515
Insert of LED signal, red/green lighting surf.-mtd/flush-mtd, W.1, grey matt
PDF -
Technical appendix (single product)
Splash-protected range W.1 - Chemical resistance (EN, 07-2021)
Technical appendix (single product) en-GB 2015-07-13
PDF518,42 kB -
Declaration of conformity
Declaration of conformity International 2021-10-19
PDF79,10 kB
More documentation
