EAN-Nr.

4011334391166

Packaging

1 piece

Push-button, change-over contact surface-mtd, W.1, p. white, matt, plastic 50763552

Accessories
Technical characteristics
Documentations

Download the sheet

Complete your system

Cover frame for domestic switching devices 1 products available
Illumination insert for domestic switching devices 1 products available

Technical characteristics

Momentary contact current

10 A

Rated voltage

250 V

Colour

Polar white
Surface finish

Matt
Material

Thermoplastic
Treatment

Untreated
Transparent

No

Height

55 mm
Width

55 mm
Depth

41 mm
Built-in depth flush-mounted boxes

0
Height of P-touch band for labelling field

12 mm

Mounting on

Surface mounting

Number of buttons

1
Type of push button

Single push button
With feedback signal contact

No

Ingress Protection (IP) class

IP55
Impact resistance IK

IK05

Has labelling field

Yes

Downloads

Product Image 50763552

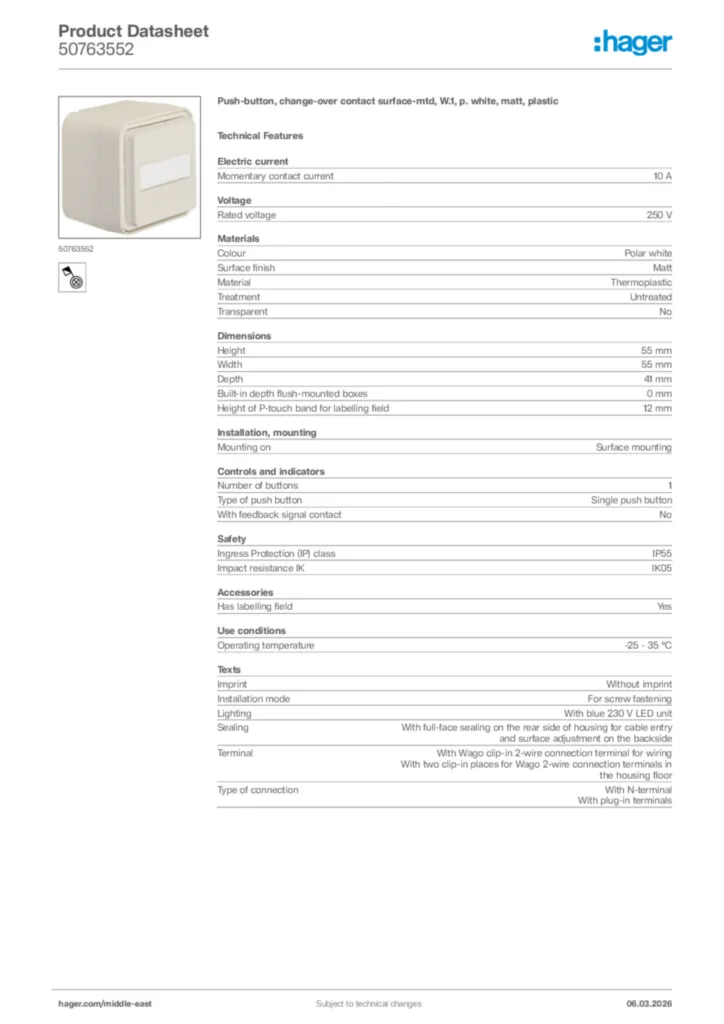

Product datasheet

Hager Product data sheet 50763552

Push-button, change-over contact surface-mtd, W.1, p. white, matt, plastic

PDF
Technical appendix (single product)

Splash-protected range W.1 - Chemical resistance (EN, 07-2021)

Technical appendix (single product) en-GB 2015-07-13

PDF

518,42 kB
Declaration of conformity

Declaration of conformity International 2021-11-03

PDF

82,41 kB

Declaration of conformity International 2022-04-26

PDF

164,12 kB

More documentation
