Push-button insert, change-over contact,illuminated surf.-/flush-mtd,W.1,grey m. 50463525
EAN-Nr.
4011334390350
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (7)
Optional accessories
-
Hood/lens for circuit control device 3 products available -
Illumination insert for domestic switching devices 1 products available
Mandatory accessories
-
13303505Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
13293515Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
-
6719323505Surface-mtd housing 2gang hor., frame surface-mtd, W.1 ECO, grey/light grey matt
-
6118913505W.1 ECO 1G box empty grey
-
6719333505Surface-mtd housing 2gang vert., frame surface-mtd, W.1 ECO, grey matt
-
13293505Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
13283505Frame 1gang for flush-mtd inst., sealing, W.1 ECO, light grey matt
Technical characteristics
Electric current
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Architecture
-
Control/operation elementRocker
Materials
-
ColourGrey
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
-
TransparentNo
Dimensions
-
Height55 mm
-
Width55 mm
-
Depth41 mm
-
Built-in depth flush-mounted boxes0
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Controls and indicators
-
Number of buttons1
-
Type of push buttonSingle push button
-
With feedback signal contactNo
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK05
Accessories
-
Has labelling fieldNo
Downloads
-

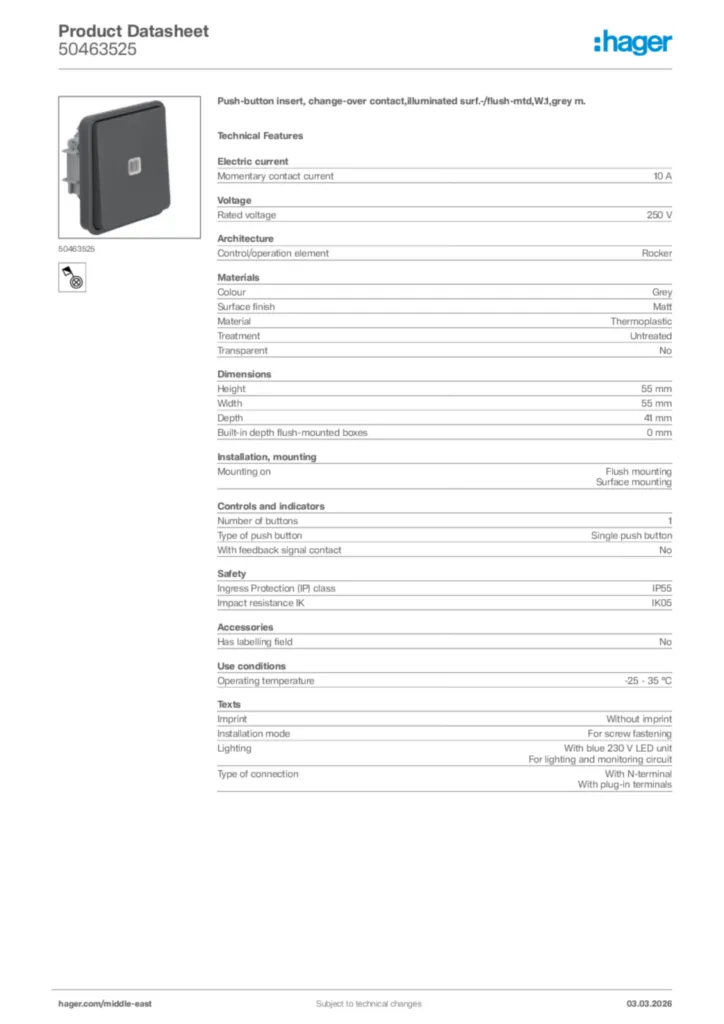

Product datasheet
