    Double mom. Cont. Switch 503503

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Double mom. Cont. Switch

    503503

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Must-have accessories

    See all (27)
    Previous
    Previous
    16231404
    16231404
    Rocker 2gang, B.7, al., matt, lacq.
    Add to a list
    Add to a list
    16238989
    16238989
    Rocker 2gang, S.1/B.3/B.7, p. white glossy
    Add to a list
    Add to a list
    14357004
    14357004
    Rocker 2gang, K.5, stainless steel, metal matt finish
    Add to a list
    Add to a list
    14357003
    14357003
    Rocker 2gang, K.5, al., al. anodised
    Add to a list
    Add to a list

    Optional accessories

    • Illumination insert for domestic switching devices 8 products available

    Compatible products

    • Referenced by 521 products available

    Mandatory accessories

    • 16231404

      Rocker 2gang, B.7, al., matt, lacq.
      0.00 €  / *
    • 16238989

      Rocker 2gang, S.1/B.3/B.7, p. white glossy
      0.00 €  / *
    • 14357004

      Rocker 2gang, K.5, stainless steel, metal matt finish
      0.00 €  / *
    • 14357003

      Rocker 2gang, K.5, al., al. anodised
      0.00 €  / *
    • 14357006

      Rocker 2gang, K.1, ant. matt, lacq.
      0.00 €  / *
    • 14357009

      Rocker 2gang, K.1, p. white glossy
      0.00 €  / *
    • 16236084

      Rockers, Q.x, aluminium velvety, lacquered
      0.00 €  / *
    • 16236086

      Rocker 2gang, Q.x, ant. velvety, lacq.
      0.00 €  / *
    • 16236089

      Rocker 2gang, Q.x, p. white velvety
      0.00 €  / *
    • 16271404

      Rocker 2gang, redlens , B.7, al., matt, lacq.
      0.00 €  / *
    • 16271606

      Rocker 2gang, redlens , B.3/B.7, ant., matt
      0.00 €  / *
    • 16271909

      Rocker 2gang, redlens , S.1/B.3/B.7, p. white, matt, plastic
      0.00 €  / *
    • 16278982

      Rocker 2gang, redlens , S.1, white glossy
      0.00 €  / *
    • 16278989

      Rocker 2gang, redlens , S.1/B.3/B.7, p. white glossy
      0.00 €  / *
    • 16276089

      Rocker 2gang, lens, Q.x, p. white velvety
      0.00 €  / *
    • 16231606

      Rocker 2gang, B.3/B.7, ant., matt
      0.00 €  / *
    • 16231909

      Rocker 2gang, S.1/B.3/B.7, p. white, matt, plastic
      0.00 €  / *
    • 15711404

      Rocker 2gang, B.7, al., matt, lacq.
      0.00 €  / *
    • 15711606

      Rocker 2gang, B.3/B.7, ant., matt
      0.00 €  / *
    • 15711909

      Rocker 2gang, S.1/B.3/B.7, p. white, matt, plastic
      0.00 €  / *

    Complete your system

    • Illumination insert for domestic switching devices
    • 1675

      Neon lamp unit N terminal, light control, grey
      0.00 €  / *
    • 167504

      Neon lamp unit N terminal, light control, orange
      0.00 €  / *
    • 1686

      LED unit 230 V, for switches/push-buttons, light control, white
      0.00 €  / *
    • 168601

      LED unit 230 V, for switches/push-buttons, light control, black
      0.00 €  / *
    • 1687

      LED unit for switches/push-buttons, light control, blue
      0.00 €  / *
    • 167602

      Glow lamp unit N-terminal, light control, yellow
      0.00 €  / *
    • 167601

      Glow lamp unit N-terminal, light control, green
      0.00 €  / *
    • 167603

      Glow lamp unit N-terminal, light control, red
      0.00 €  / *

    Referenced by

    • 10239959

      Frame 3gang hor., lab. field, S.1, al. matt
      0.00 €  / *
    • 10119959

      Frame 1gang, lab. field, S.1, al. matt
      0.00 €  / *
    • 10119969

      Frame 1gang, lab. field, S.1, ant., matt
      0.00 €  / *
    • 10128912

      Frame 2gang vert., lab. field, S.1, white glossy
      0.00 €  / *
    • 10128919

      Frame 2gang vert., lab. field, S.1, p. white glossy
      0.00 €  / *
    • 10129919

      Frame 2gang vert., lab. field, S.1, p. white, matt, plastic
      0.00 €  / *
    • 10129959

      Frame 2gang vert., lab. field, S.1, al. matt
      0.00 €  / *
    • 10129969

      Frame 2gang vert., lab. field, S.1, ant., matt
      0.00 €  / *
    • 10138912

      Frame 3gang vert., lab. field, S.1, white glossy
      0.00 €  / *
    • 10138919

      Frame 3gang vert., lab. field, S.1, p. white glossy
      0.00 €  / *
    • 10139919

      Frame 3gang vert., lab. field, S.1, p. white, matt, plastic
      0.00 €  / *
    • 10228912

      Frame 2gang hor., lab. field, S.1, white glossy
      0.00 €  / *
    • 10228919

      Frame 2gang hor., lab. field, S.1, p. white glossy
      0.00 €  / *
    • 10229919

      Frame 2gang hor., lab. field, S.1, p. white, matt, plastic
      0.00 €  / *
    • 10229959

      Frame 2gang hor., lab. field, S.1, al. matt
      0.00 €  / *
    • 10229969

      Frame 2gang hor., lab. field, S.1, ant., matt
      0.00 €  / *
    • 10238912

      Frame 3gang hor., lab. field, S.1, white glossy
      0.00 €  / *
    • 10238919

      Frame 3gang hor., lab. field, S.1, p. white glossy
      0.00 €  / *
    • 10239919

      Frame 3gang hor., lab. field, S.1, p. white, matt, plastic
      0.00 €  / *
    • 10239969

      Frame 3gang hor., lab. field, S.1, ant., matt
      0.00 €  / *

    Technical characteristics

    Electric current
    • Switching current
      10 A
    • Momentary contact current
      10 A
    Voltage
    • Rated voltage
      250 V
    Architecture
    • Control/operation element
      Double rocker
    Materials
    • Material
      Metal, Plastic
    • Treatment
      Untreated
    • Transparent
      No
    Dimensions
    • Height
      71 mm
    • Width
      71 mm
    • Depth
      41.60 mm
    • Built-in depth
      31.70 mm
    • Built-in depth flush-mounted boxes
      35 mm
    Installation, mounting
    • Mounting on
      Flush mounting
    Controls and indicators
    • Number of buttons
      2
    • Type of push button
      Series push button
    • With feedback signal contact
      No
    Connectivity
    • Type of connection
      quickconnect
    Safety
    • Ingress Protection (IP) class
      IP20
    • Impact resistance IK
      IK07
    Accessories
    • Has labelling field
      No
    • Related Systems
      K.x, Q.x, R.x, S.x/B.x

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes

    Certifications and documents

    PEP - Push-button, change-over with rocker and frame, S.1, polar white matt (English)
    PDF
    7,72 MB
    REACH declaration 503503
    PDF
    RoHS report 503503
    PDF

    Downloads

    • Image 503503 | Hager

      Product Image 503503

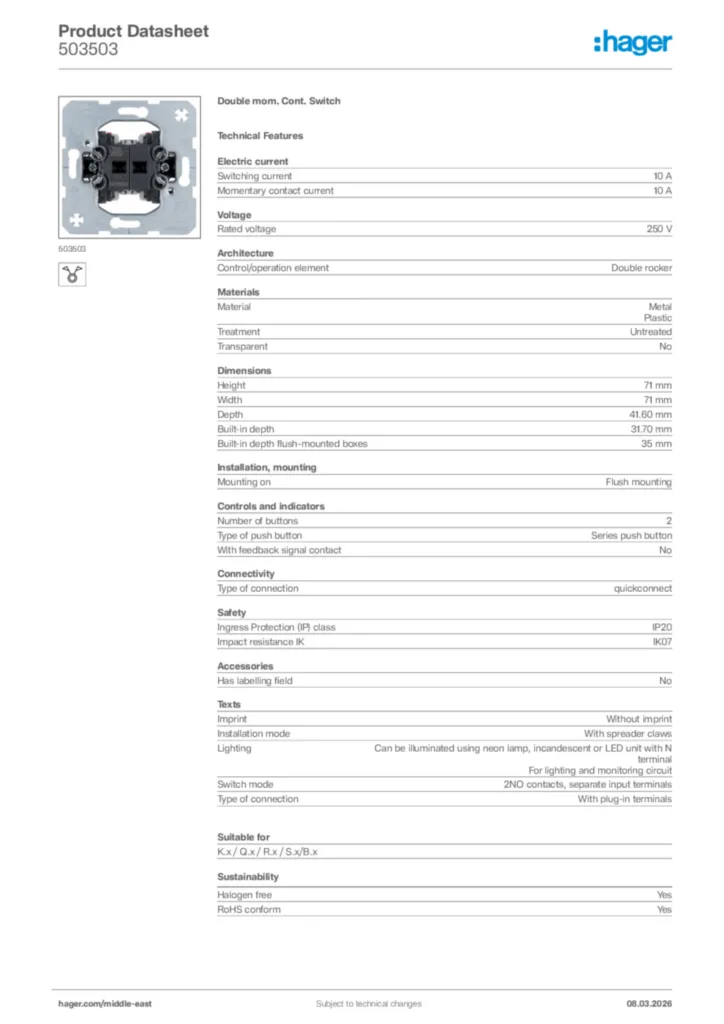

    • Product datasheet

      Image Hager Product data sheet 503503 | Hager

      Hager Product data sheet 503503

      Double mom. Cont. Switch

      PDF

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      dc24-1015

      PDF
      334,72 kB
