Series push-button NC contact and NO contacts with isolated input terminals 503501
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Complete your system
Must-have accessories
See all (27)
Optional accessories
-
Illumination insert for domestic switching devices 9 products available
Mandatory accessories
-
16231404Rocker 2gang, B.7, al., matt, lacq.
-
16238989Rocker 2gang, S.1/B.3/B.7, p. white glossy
-
14357004Rocker 2gang, K.5, stainless steel, metal matt finish
-
14357003Rocker 2gang, K.5, al., al. anodised
-
14357006Rocker 2gang, K.1, ant. matt, lacq.
-
14357009Rocker 2gang, K.1, p. white glossy
-
16236084Rockers, Q.x, aluminium velvety, lacquered
-
16236086Rocker 2gang, Q.x, ant. velvety, lacq.
-
16236089Rocker 2gang, Q.x, p. white velvety
-
16271404Rocker 2gang, redlens , B.7, al., matt, lacq.
-
16271606Rocker 2gang, redlens , B.3/B.7, ant., matt
-
16271909Rocker 2gang, redlens , S.1/B.3/B.7, p. white, matt, plastic
-
16278982Rocker 2gang, redlens , S.1, white glossy
-
16278989Rocker 2gang, redlens , S.1/B.3/B.7, p. white glossy
-
16276089Rocker 2gang, lens, Q.x, p. white velvety
-
16231606Rocker 2gang, B.3/B.7, ant., matt
-
16231909Rocker 2gang, S.1/B.3/B.7, p. white, matt, plastic
-
15711404Rocker 2gang, B.7, al., matt, lacq.
-
15711606Rocker 2gang, B.3/B.7, ant., matt
-
15711909Rocker 2gang, S.1/B.3/B.7, p. white, matt, plastic
Complete your system
-
1675Neon lamp unit N terminal, light control, grey
-
167504Neon lamp unit N terminal, light control, orange
-
1686LED unit 230 V, for switches/push-buttons, light control, white
-
168601LED unit 230 V, for switches/push-buttons, light control, black
-
1687LED unit for switches/push-buttons, light control, blue
-
1676Glow lamp unit N-terminal, light control, brown
-
167602Glow lamp unit N-terminal, light control, yellow
-
167601
Glow lamp unit N-terminal, light control, green
-
167603Glow lamp unit N-terminal, light control, red
Technical characteristics
Electric current
-
Switching current10 A
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Architecture
-
Control/operation elementDouble rocker
Materials
-
MaterialMetal, Plastic
-
TreatmentUntreated
-
TransparentNo
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth41.60 mm
-
Built-in depth31.30 mm
-
Built-in depth flush-mounted boxes35 mm
Installation, mounting
-
Mounting onFlush mounting
Controls and indicators
-
Number of buttons2
-
Type of push buttonSeries push button
-
With feedback signal contactNo
Connectivity
-
Type of connectionquickconnect
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK07
Accessories
-
Has labelling fieldNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

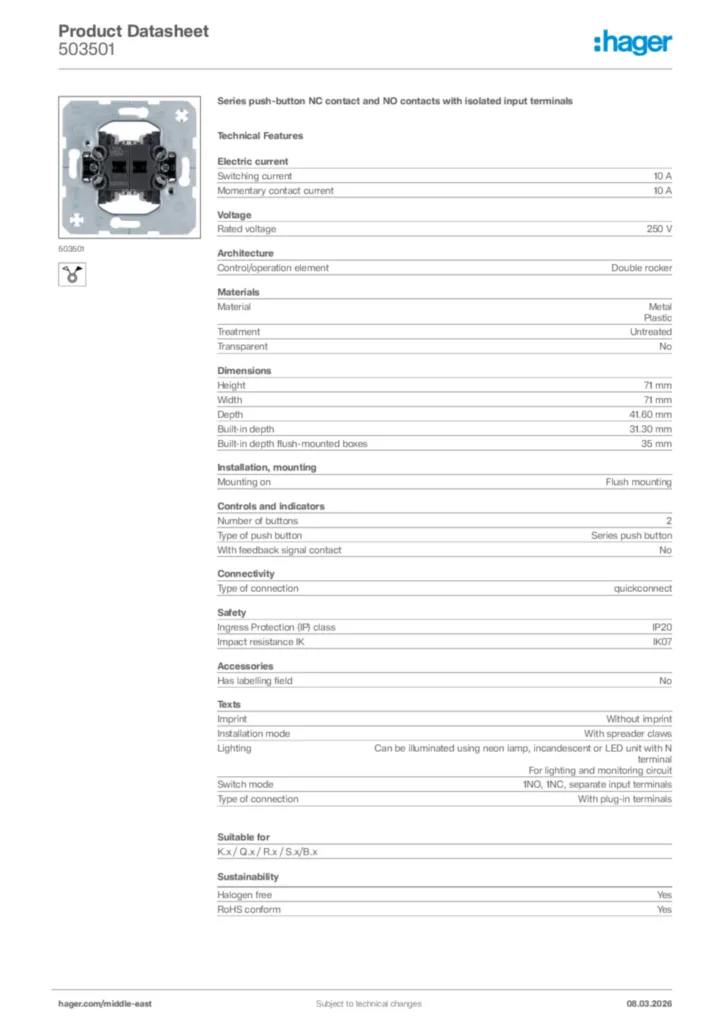

Product datasheet
Hager Product data sheet 503501
Series push-button NC contact and NO contacts with isolated input terminals
PDF -
Declaration of conformity
EU Declaration of Conformity
dc24-1015
PDF334,72 kB
