Series push-button 2 NO contacts with common input terminal 5035
EAN-Nr.
4011334030447
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (32)
Optional accessories
-
Illumination insert for domestic switching devices 9 products available -
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 539 products available
Mandatory accessories
-
16278989Rocker 2gang, redlens , S.1/B.3/B.7, p. white glossy
-
16238989Rocker 2gang, S.1/B.3/B.7, p. white glossy
-
14357004Rocker 2gang, K.5, stainless steel, metal matt finish
-
14357003Rocker 2gang, K.5, al., al. anodised
-
14357009Rocker 2gang, K.1, p. white glossy
-
16236084Rockers, Q.x, aluminium velvety, lacquered
-
16236086Rocker 2gang, Q.x, ant. velvety, lacq.
-
16236089Rocker 2gang, Q.x, p. white velvety
-
16232045Rocker 2gang, R.1/R.3, black glossy
-
16232089Rocker 2gang, R.1/R.3, p. white glossy
-
1552Rocker 2gang, splash-proteced flush-mtd IP44, white glossy
-
155209Rocker 2gang, splash-proteced flush-mtd IP44, p. white glossy
-
16271404Rocker 2gang, redlens , B.7, al., matt, lacq.
-
16271606Rocker 2gang, redlens , B.3/B.7, ant., matt
-
16271909Rocker 2gang, redlens , S.1/B.3/B.7, p. white, matt, plastic
-
16278982Rocker 2gang, redlens , S.1, white glossy
-
16276089Rocker 2gang, lens, Q.x, p. white velvety
-
16231404Rocker 2gang, B.7, al., matt, lacq.
-
16231606Rocker 2gang, B.3/B.7, ant., matt
-
16231909Rocker 2gang, S.1/B.3/B.7, p. white, matt, plastic
Complete your system
-
1675
Neon lamp unit N terminal, light control, grey
-
167504Neon lamp unit N terminal, light control, orange
-
1686LED unit 230 V, for switches/push-buttons, light control, white
-
168601LED unit 230 V, for switches/push-buttons, light control, black
-
1687LED unit for switches/push-buttons, light control, blue
-
1676Glow lamp unit N-terminal, light control, brown
-
167602Glow lamp unit N-terminal, light control, yellow
-
167601Glow lamp unit N-terminal, light control, green
-
167603Glow lamp unit N-terminal, light control, red
Referenced by
-
10239959Frame 3gang hor., lab. field, S.1, al. matt
-
10119959Frame 1gang, lab. field, S.1, al. matt
-
10119969Frame 1gang, lab. field, S.1, ant., matt
-
10128912Frame 2gang vert., lab. field, S.1, white glossy
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10129919Frame 2gang vert., lab. field, S.1, p. white, matt, plastic
-
10129959Frame 2gang vert., lab. field, S.1, al. matt
-
10129969Frame 2gang vert., lab. field, S.1, ant., matt
-
10138912Frame 3gang vert., lab. field, S.1, white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
-
10139919Frame 3gang vert., lab. field, S.1, p. white, matt, plastic
-
10228912Frame 2gang hor., lab. field, S.1, white glossy
-
10228919Frame 2gang hor., lab. field, S.1, p. white glossy
-
10229919Frame 2gang hor., lab. field, S.1, p. white, matt, plastic
-
10229959Frame 2gang hor., lab. field, S.1, al. matt
-
10229969Frame 2gang hor., lab. field, S.1, ant., matt
-
10238912Frame 3gang hor., lab. field, S.1, white glossy
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10239919Frame 3gang hor., lab. field, S.1, p. white, matt, plastic
-
10239969Frame 3gang hor., lab. field, S.1, ant., matt
Technical characteristics
Electric current
-
Switching current10 A
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Architecture
-
Control/operation elementDouble rocker
-
Number of poles1
Materials
-
MaterialMetal, Plastic
-
TreatmentUntreated
-
TransparentNo
Dimensions
-
Height70.80 mm
-
Width70.80 mm
-
Depth41.60 mm
-
Built-in depth32.30 mm
-
Built-in depth flush-mounted boxes35 mm
Installation, mounting
-
Mounting onFlush mounting
Controls and indicators
-
Number of buttons2
-
Type of push buttonSeries push button
-
With feedback signal contactNo
Connectivity
-
Type of connectionquickconnect
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK07
Accessories
-
Has labelling fieldNo
-
Related SystemsK.x, Q.x, R.x, S.x/B.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

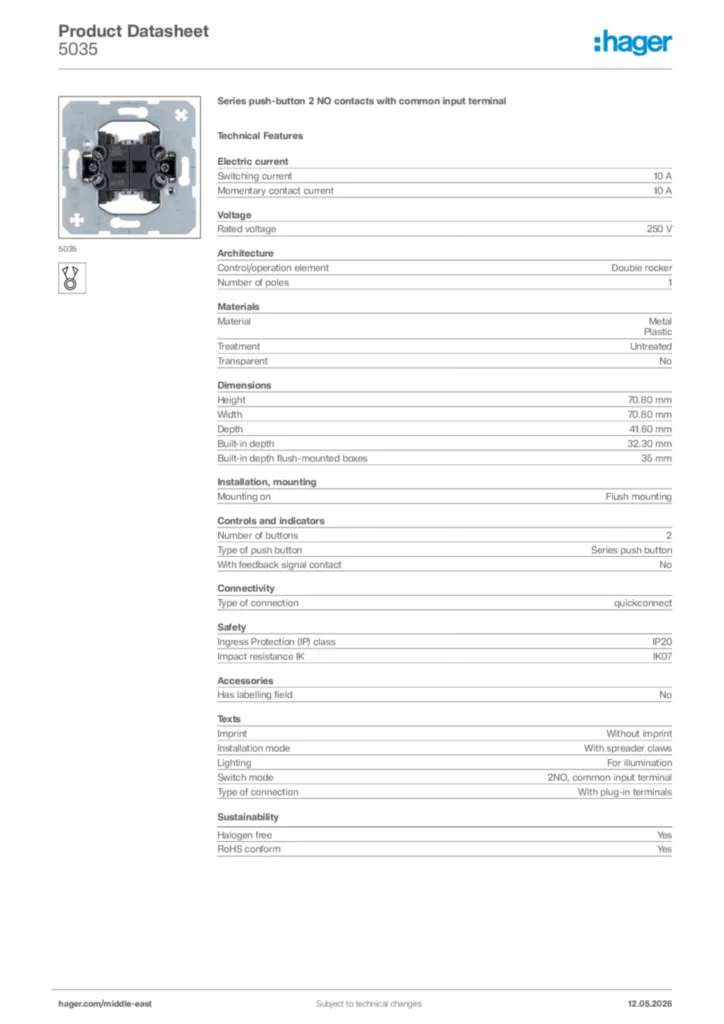

Hager Product data sheet 5035
Series push-button 2 NO contacts with common input terminal
PDF -
Declaration of conformity
EU Declaration of Conformity
dc24-1015
PDF334,72 kB
