Group push-button, 4NO contacts, comm. input terminal, neut. pos., light control 503404

EAN-Nr.
4011334255994
Packaging
10 Pieces

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Group push-button, 4NO contacts, comm. input terminal, neut. pos., light control

503404

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Must-have accessories

See all (12)
Previous
Previous
16231909
16231909
Rocker 2gang, S.1/B.3/B.7, p. white, matt, plastic
Add to a list
Add to a list
16231606
16231606
Rocker 2gang, B.3/B.7, ant., matt
Add to a list
Add to a list
16231404
16231404
Rocker 2gang, B.7, al., matt, lacq.
Add to a list
Add to a list
16271909
16271909
Rocker 2gang, redlens , S.1/B.3/B.7, p. white, matt, plastic
Add to a list
Add to a list

Optional accessories

  • Illumination insert for domestic switching devices 1 products available
  • Isolator relay venetian blind 4 products available
  • Accessories/spare parts for domestic switching devices 1 products available

Compatible products

  • Referenced by 521 products available

Mandatory accessories

  • 16231909

    Rocker 2gang, S.1/B.3/B.7, p. white, matt, plastic
    0.00 €  / *
  • 16231606

    Rocker 2gang, B.3/B.7, ant., matt
    0.00 €  / *
  • 16231404

    Rocker 2gang, B.7, al., matt, lacq.
    0.00 €  / *
  • 16271909

    Rocker 2gang, redlens , S.1/B.3/B.7, p. white, matt, plastic
    0.00 €  / *
  • 16271606

    Rocker 2gang, redlens , B.3/B.7, ant., matt
    0.00 €  / *
  • 16271404

    Rocker 2gang, redlens , B.7, al., matt, lacq.
    0.00 €  / *
  • 16232089

    Rocker 2gang, R.1/R.3, p. white glossy
    0.00 €  / *
  • 16232045

    Rocker 2gang, R.1/R.3, black glossy
    0.00 €  / *
  • 14357209

    Rocker 2gang imprinted arrows symbol, K.1, p. white glossy
    0.00 €  / *
  • 14357206

    Rocker 2gang imprinted arrows symbol, K.1, ant. matt, lacq.
    0.00 €  / *
  • 14357203

    Rocker 2gang imprinted arrows symbol, K.5, al., al. anodised
    0.00 €  / *
  • 14357204

    Rocker 2gang imprinted arrows symbol, K.5, stainless steel, metal matt finish
    0.00 €  / *

Complete your system

  • Illumination insert for domestic switching devices
  • Isolator relay venetian blind
  • Accessories/spare parts for domestic switching devices
  • 160002

    Neon lamp unit for switches/push-buttons, light control, grey
    0.00 €  / *
  • 2930

    Cutoff relay surface-mtd/flush-mtd, blind control
    0.00 €  / *
  • 2969

    Cutoff relay surface-mtd/flush-mtd, extension unit outputs, blind control, grey
    0.00 €  / *
  • 2919

    Cutoff relay RMD, extension unit outputs, blind control
    0.00 €  / *
  • 2931

    Cutoff relay RMD, blind control
    0.00 €  / *
  • 1913

    Extension claw for attaching, Accessories
    0.00 €  / *

Referenced by

  • 10239959

    Frame 3gang hor., lab. field, S.1, al. matt
    0.00 €  / *
  • 10119959

    Frame 1gang, lab. field, S.1, al. matt
    0.00 €  / *
  • 10119969

    Frame 1gang, lab. field, S.1, ant., matt
    0.00 €  / *
  • 10128912

    Frame 2gang vert., lab. field, S.1, white glossy
    0.00 €  / *
  • 10128919

    Frame 2gang vert., lab. field, S.1, p. white glossy
    0.00 €  / *
  • 10129919

    Frame 2gang vert., lab. field, S.1, p. white, matt, plastic
    0.00 €  / *
  • 10129959

    Frame 2gang vert., lab. field, S.1, al. matt
    0.00 €  / *
  • 10129969

    Frame 2gang vert., lab. field, S.1, ant., matt
    0.00 €  / *
  • 10138912

    Frame 3gang vert., lab. field, S.1, white glossy
    0.00 €  / *
  • 10138919

    Frame 3gang vert., lab. field, S.1, p. white glossy
    0.00 €  / *
  • 10139919

    Frame 3gang vert., lab. field, S.1, p. white, matt, plastic
    0.00 €  / *
  • 10228912

    Frame 2gang hor., lab. field, S.1, white glossy
    0.00 €  / *
  • 10228919

    Frame 2gang hor., lab. field, S.1, p. white glossy
    0.00 €  / *
  • 10229919

    Frame 2gang hor., lab. field, S.1, p. white, matt, plastic
    0.00 €  / *
  • 10229959

    Frame 2gang hor., lab. field, S.1, al. matt
    0.00 €  / *
  • 10229969

    Frame 2gang hor., lab. field, S.1, ant., matt
    0.00 €  / *
  • 10238912

    Frame 3gang hor., lab. field, S.1, white glossy
    0.00 €  / *
  • 10238919

    Frame 3gang hor., lab. field, S.1, p. white glossy
    0.00 €  / *
  • 10239919

    Frame 3gang hor., lab. field, S.1, p. white, matt, plastic
    0.00 €  / *
  • 10239969

    Frame 3gang hor., lab. field, S.1, ant., matt
    0.00 €  / *

Technical characteristics

Electric current
  • Switching current
    10 A
  • Momentary contact current
    10 A
Voltage
  • Rated voltage
    250 V
Architecture
  • Control/operation element
    Double rocker
  • Number of poles
    0
Materials
  • Surface finish
    Matt
  • Material
    Metal, Plastic
  • Treatment
    Untreated
  • Transparent
    No
Dimensions
  • Height
    71 mm
  • Width
    71 mm
  • Depth
    41.60 mm
  • Built-in depth flush-mounted boxes
    35 mm
Installation, mounting
  • Mounting on
    Flush mounting
Controls and indicators
  • Number of buttons
    2
  • Type of push button
    Group push button
  • With feedback signal contact
    No
Connectivity
  • Type of connection
    Screw terminal
Safety
  • Ingress Protection (IP) class
    IP20
  • Impact resistance IK
    IK07
Accessories
  • Has labelling field
    No
  • Related Systems
    K.x, Q.x, R.x, S.x/B.x

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Push-button, change-over with rocker and frame, S.1, polar white matt
PDF
7,72 MB
Hager REACH declaration 503404
PDF
Hager RoHS report 503404
PDF

Downloads

  • Image 503404 | Hager

    Product Image 503404

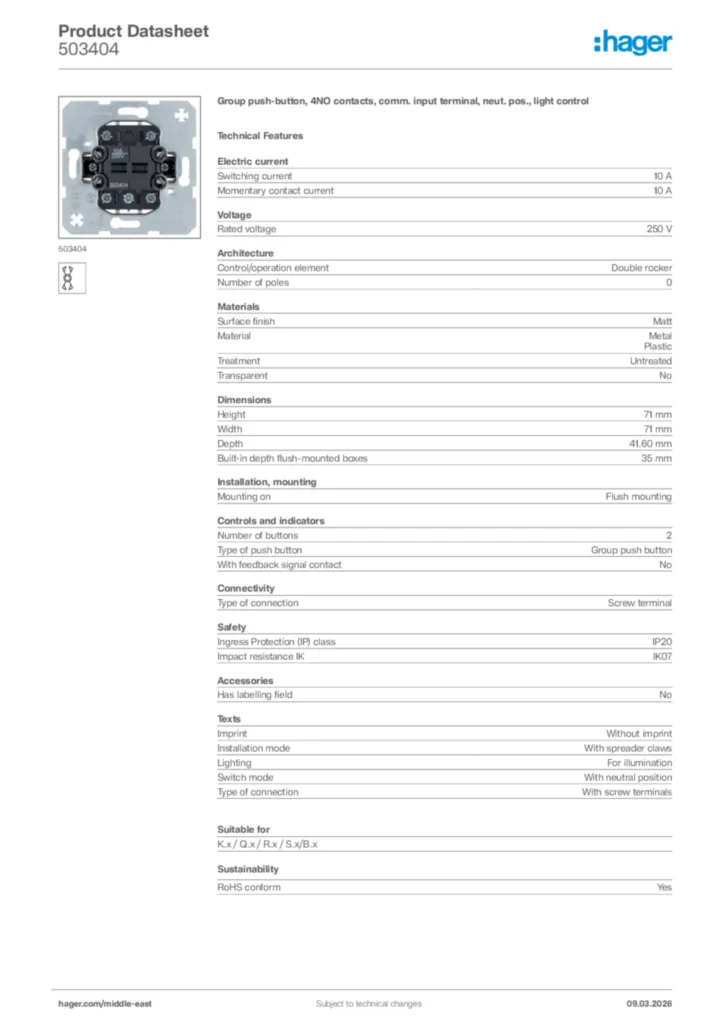

  • Product datasheet

    Image Hager Product data sheet 503404 | Hager

    Hager Product data sheet 503404

    Group push-button, 4NO contacts, comm. input terminal, neut. pos., light control

    PDF

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-10-20

    PDF
    236,10 kB
    Image Declaration of conformity | Hager

    Declaration of conformity

    Declaration of conformity International 2022-10-20

    PDF
    230,58 kB
    Image EU Declaration of Conformity | Hager

    EU Declaration of Conformity

    dc24-1014

    PDF
    322,45 kB
