Combi.switch/SCHUKO soc.out. hinged cover surf.-mtd,enhncd contact prot.,W1 47903512
EAN-Nr.
4011334404460
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Dimensions
-
Built-in depth flush-mounted boxes0
Electric current
-
Rated current16 A
-
Switching current10 A
Voltage
-
Rated voltage250 V
Materials
-
ColourWhite
-
RAL code7011, 9010
-
MaterialThermoplastic
-
Surface finishMatt
Safety
-
Ingress Protection (IP) classIP55
-
With enhanced contact protectionNo
Use conditions
-
Operating temperature-15 - 30 °C
Equipment
-
With signal lampNo
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
Accessories
-
Has labelling fieldNo
Texts
-
Installation modeFor vertical mounting
-
ProtectionWithout enhanced contact protection
-
SealingWith full-face sealing on the rear side of housing for cable entry and surface adjustment on the backside
-
Type of connectionWith plug-in terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

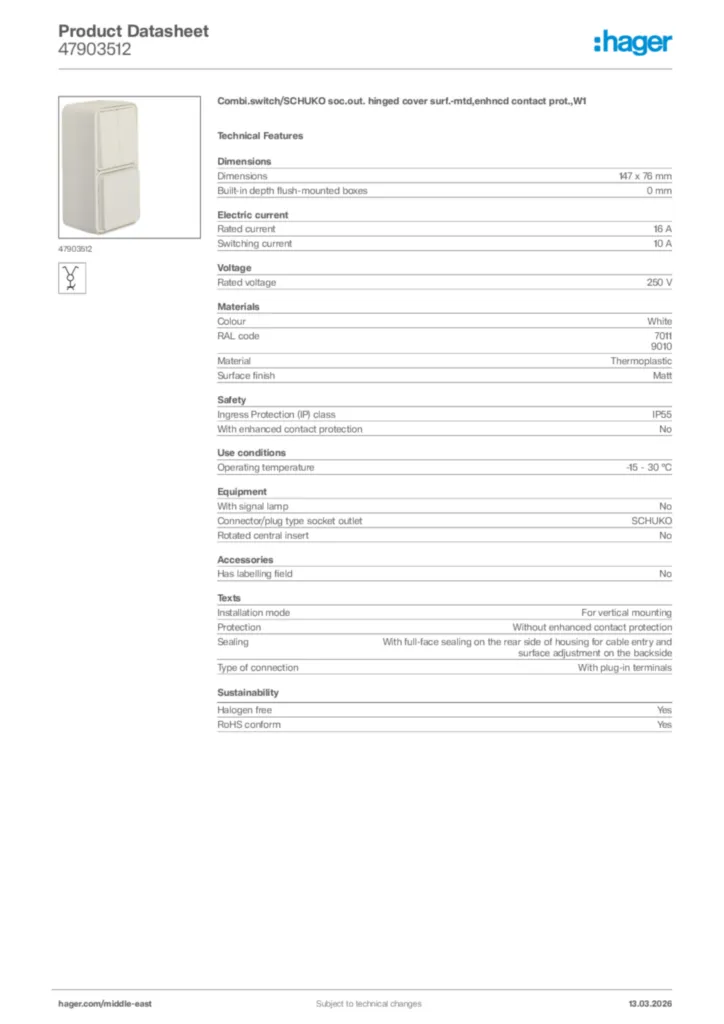

Hager Product data sheet 47903512
Combi.switch/SCHUKO soc.out. hinged cover surf.-mtd,enhncd contact prot.,W1
PDF -
Technical appendix (single product)
Splash-protected range W.1 - Chemical resistance (EN, 07-2021)
Technical appendix (single product) en-GB 2015-07-13
PDF518,42 kB -
Declaration of conformity
Declaration of conformity International 2021-06-18
PDF117,97 kB
