    EAN-Nr.
    4011334195658
    Packaging
    5 Pieces

    SCHUKO-SOCKET 2GANG AT GR 478405

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    No longer available

    SCHUKO-SOCKET 2GANG AT GR

    478405

    • Technical characteristics
    • Documentations
    Download the sheet

    Technical characteristics

    Voltage
    • Rated voltage
      250 V
    Electric current
    • Rated current
      16 A
    Frequency
    • Frequency
      50 - 50 Hz
    Materials
    • Colour
      Light grey
    • RAL code
      7035
    • Surface finish
      Glossy, Matt
    • Material
      Thermoplastic
    • Treatment
      Untreated
    Dimensions
    • Height
      75.10 mm
    • Depth
      58.50 mm
    Connection
    • Conductor cross-section
      1.0 - 2.5 mm²
    Installation, mounting
    • Mounting on
      Surface mounting
    Connectivity
    • Mounting type
      Screw mounting
    Equipment
    • Connector/plug type socket outlet
      SCHUKO
    • Rotated central insert
      No
    • With hinged lid
      Yes
    • With round protective earth pin
      No
    • With signal lamp
      No
    Accessories
    • Has labelling field
      No
    Capacity
    • Number of modules
      2
    Safety
    • Impact resistance IK
      IK05
    • Ingress Protection (IP) class
      IP44
    Functions
    • With orientation lighting
      No
    • With function lighting
      No
    Identification
    • With imprint
      No

    Downloads

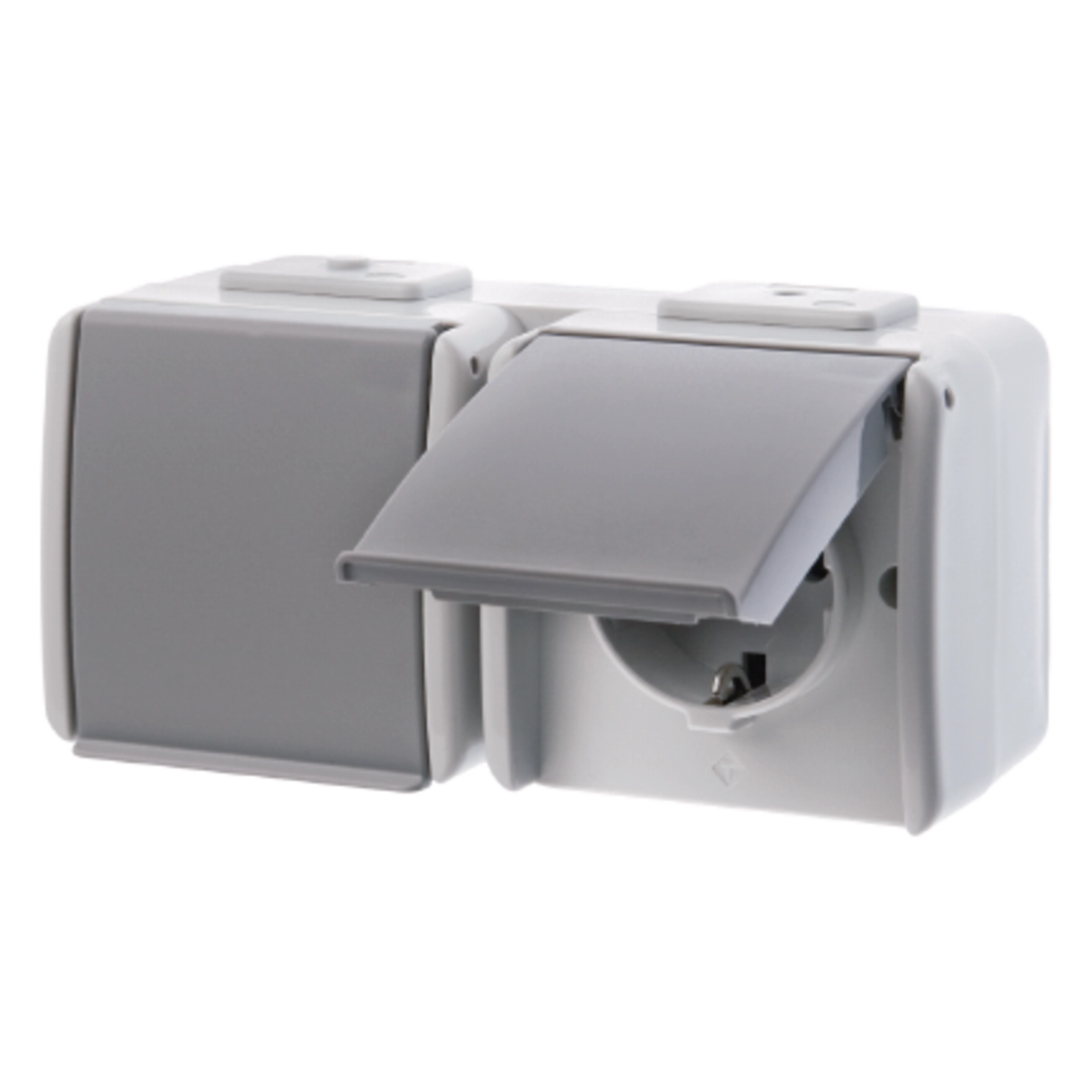

    • Image 478405 | Hager

      Product Image 478405

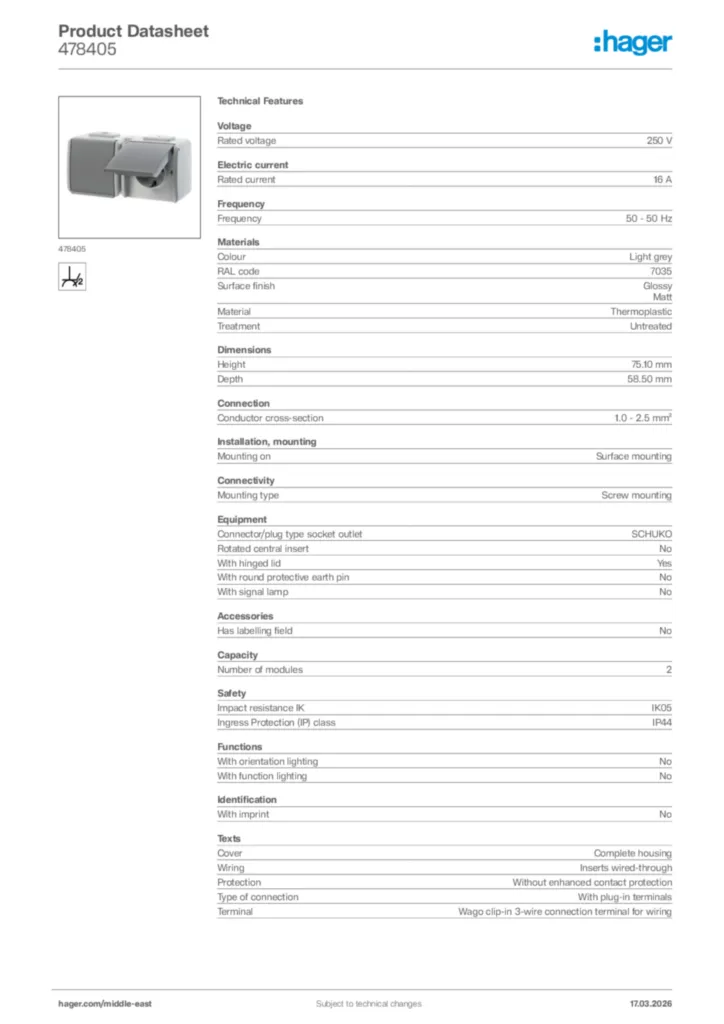

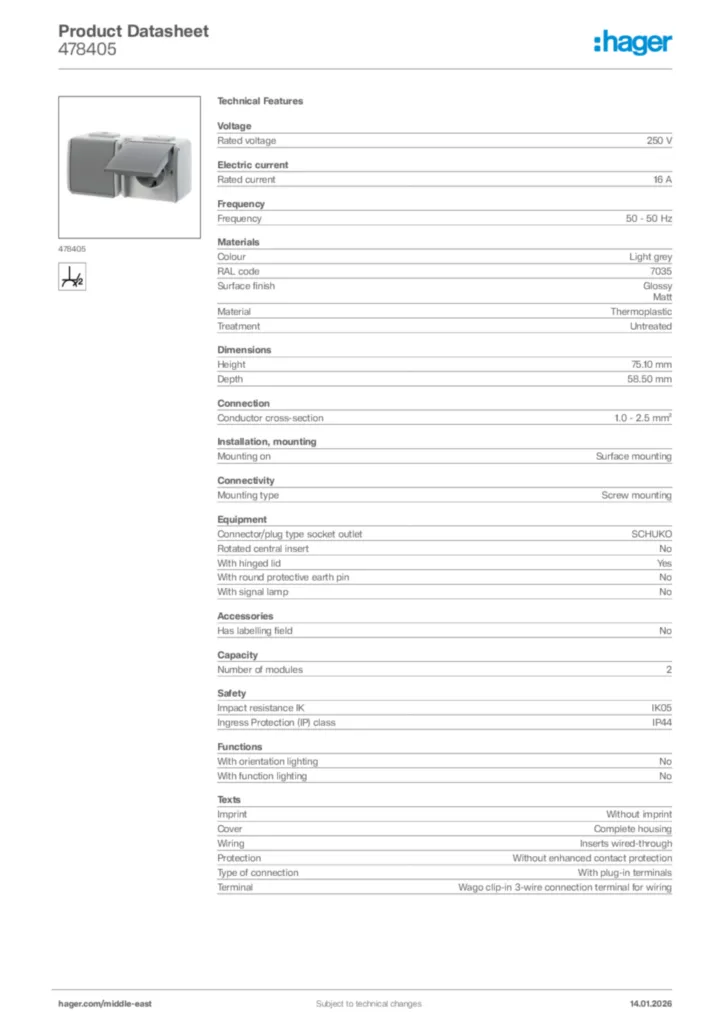

    • Product datasheet

      Image Hager Product data sheet 478405 | Hager

      Hager Product data sheet 478405

      Product data sheet en-GB 2026-03-17

      PDF
