W1 ECO SCHUKO soc. out. 2g hor. cov gr • 47753535 | Hager
Middle-East
Menu
Account

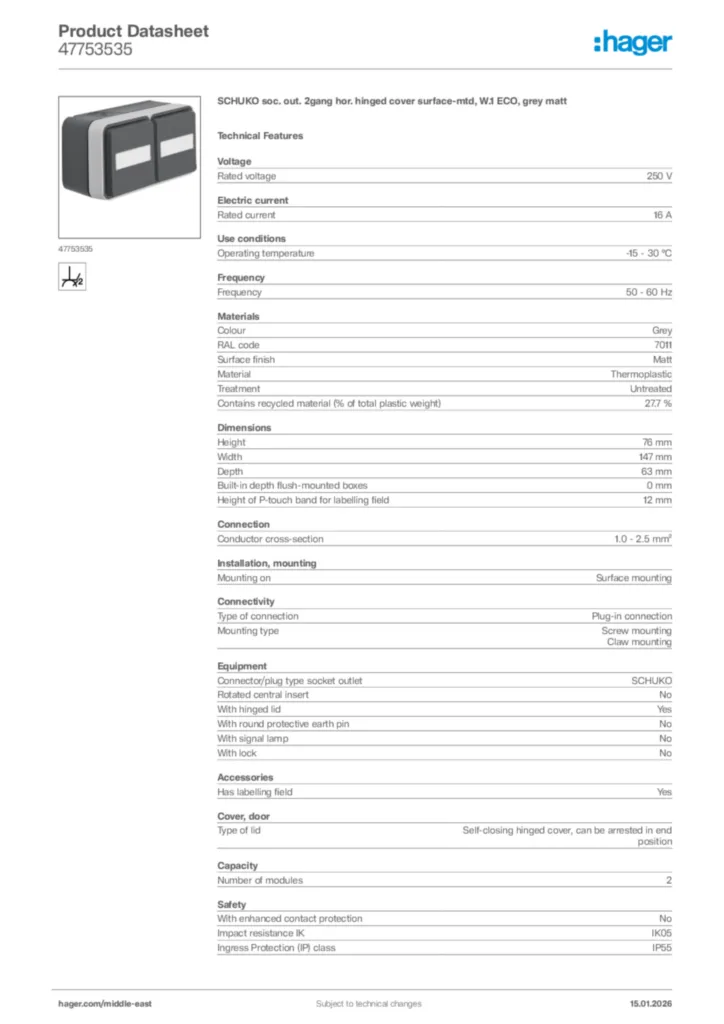

SCHUKO soc. out. 2gang hor. hinged cover surface-mtd, W.1 ECO, grey matt 47753535

EAN-Nr.
4011334404354
Packaging
5 Pieces

Technical characteristics

Voltage
  • Rated voltage
    250 V
Electric current
  • Rated current
    16 A
Frequency
  • Frequency
    50 - 60 Hz
Materials
  • Colour
    Grey
  • RAL code
    7011
  • Surface finish
    Matt
  • Material
    Thermoplastic
  • Treatment
    Untreated
  • Contains recycled material (% of total plastic weight)
    27.7 %
Dimensions
  • Height
    76 mm
  • Width
    147 mm
  • Depth
    63 mm
  • Built-in depth flush-mounted boxes
    0
Connection
  • Conductor cross-section
    1.0 - 2.5 mm²
Installation, mounting
  • Mounting on
    Surface mounting
Connectivity
  • Type of connection
    Plug-in connection
  • Mounting type
    Screw mounting, Claw mounting
Equipment
  • Connector/plug type socket outlet
    SCHUKO
  • Rotated central insert
    No
  • With hinged lid
    Yes
  • With round protective earth pin
    No
  • With signal lamp
    No
  • With lock
    No
Accessories
  • Has labelling field
    Yes
Cover, door
  • Type of lid
    Self-closing hinged cover, can be arrested in end position
Capacity
  • Number of modules
    2
Safety
  • With enhanced contact protection
    No
  • Impact resistance IK
    IK05
  • Ingress Protection (IP) class
    IP55
Functions
  • With orientation lighting
    No
  • With function lighting
    No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
Halogen free Yes

Certifications and documents

Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white
PDF
48,73 MB
Hager REACH declaration 47753535
PDF
Hager RoHS report 47753535
PDF

Downloads

More documentation
