SCHUKO soc. out., mounting orient. var. in 45° steps, R.classic, black glossy 47452045
EAN-Nr.
4011334377030
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 15 products available
Referenced by
-
10132045Frame 3gang, R.classic, black glossy
-
10132016Frame 3gang, R.classic, glass black
-
10132084Frame 3gang, R.classic, al./black, al. anodised
-
10132014Frame 3gang, R.classic, stainless steel/p. white, metal matt finish
-
10132004Frame 3gang, R.classic, stainless steel/black, metal matt finish
-
10112045Frame 1gang, R.classic, black glossy
-
10122045Frame 2gang, R.classic, black glossy
-
10112016Frame 1gang, R.classic, glass black
-
10122016Frame 2gang, R.classic, glass black
-
10112084Frame 1gang, R.classic, al./black, al. anodised
-
10122084Frame 2gang, R.classic, al./black, al. anodised
-
10112014Frame 1gang, R.classic, stainless steel/p. white, metal matt finish
-
10122014Frame 2gang, R.classic, stainless steel/p. white, metal matt finish
-
10112004Frame 1gang, R.classic, stainless steel/black, metal matt finish
-
10122004Frame 2gang, R.classic, stainless steel/black, metal matt finish
Technical characteristics
Electric current
-
Rated current16 A
Voltage
-
Rated voltage250 V
-
Nominal voltage250 - 250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourBlack
-
RAL code9005
-
Surface finishGlossy
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth42 mm
-
Number of units1
-
Built-in depth flush-mounted boxes31 mm
-
Built-in depth32 mm
Connection
-
Connector/plug typePlug clamp
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertYes
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related SystemsSerie R.classic
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

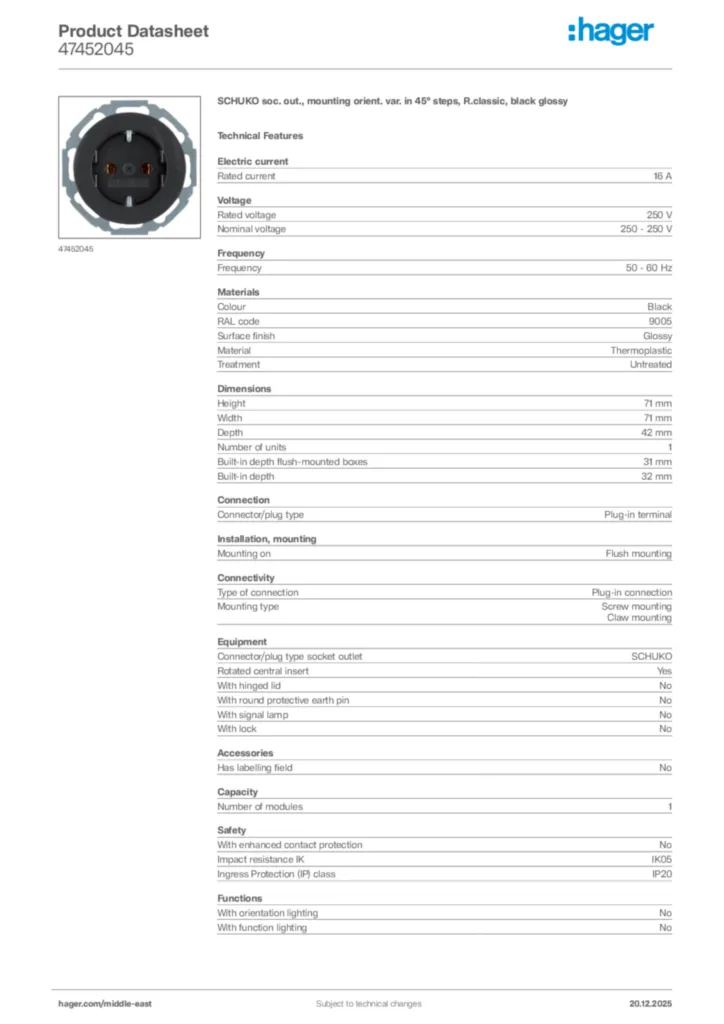

Product datasheet
