SCHUKO soc. out., mounting orient. var. in 45° steps, 1930/glass, p.white glossy 474520

EAN-Nr.
4011334215257
Packaging
10 Pieces

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

SCHUKO soc. out., mounting orient. var. in 45° steps, 1930/glass, p.white glossy

474520

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • Accessories/spare parts for domestic switching devices 1 products available

Compatible products

  • Referenced by 7 products available

Complete your system

  • Accessories/spare parts for domestic switching devices
  • 1914

    Replacement claw, Accessories
    0.00 €  / *

Referenced by

  • 1102

    Glass frame 2gang, clear glossy
    0.00 €  / *
  • 109300

    Glass centre frame, clear glossy
    0.00 €  / *
  • 109200

    Glass end frame, clear glossy
    0.00 €  / *
  • 138159

    Centre frame, 1930, p. white glossy
    0.00 €  / *
  • 138149

    Eend frame, 1930, p. white glossy
    0.00 €  / *
  • 138129

    Frame 2gang, 1930, p. white glossy
    0.00 €  / *
  • 138139

    Frame 3gang, 1930, p. white glossy
    0.00 €  / *

Technical characteristics

Electric current
  • Rated current
    16 A
Voltage
  • Rated voltage
    250 V
  • Nominal voltage
    250 - 250 V
Frequency
  • Frequency
    50 - 60 Hz
Materials
  • Colour
    Polar white
  • RAL code
    9010
  • Surface finish
    Glossy
  • Material
    Duroplastic
  • Treatment
    Untreated
Dimensions
  • Height
    71 mm
  • Width
    71 mm
  • Depth
    42 mm
  • Number of units
    1
  • Built-in depth flush-mounted boxes
    31 mm
  • Built-in depth
    32 mm
Connection
  • Connector/plug type
    Plug clamp
Installation, mounting
  • Mounting on
    Flush mounting
Connectivity
  • Type of connection
    Plug-in connection
  • Mounting type
    Screw mounting, Claw mounting
Equipment
  • Connector/plug type socket outlet
    SCHUKO
  • Rotated central insert
    Yes
  • With hinged lid
    No
  • With round protective earth pin
    No
  • With signal lamp
    No
  • With lock
    No
Accessories
  • Has labelling field
    No
Capacity
  • Number of modules
    1
Safety
  • With enhanced contact protection
    No
  • Impact resistance IK
    IK02
  • Ingress Protection (IP) class
    IP20
Functions
  • With orientation lighting
    No
  • With function lighting
    No
  • Related Systems
    Serie 1930 / Serie Glas

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
Halogen free Yes

Certifications and documents

Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white
PDF
48,73 MB
Hager REACH declaration 474520
PDF
Hager RoHS report 474520
PDF

Downloads

  • Image 474520 | Hager

    Product Image 474520

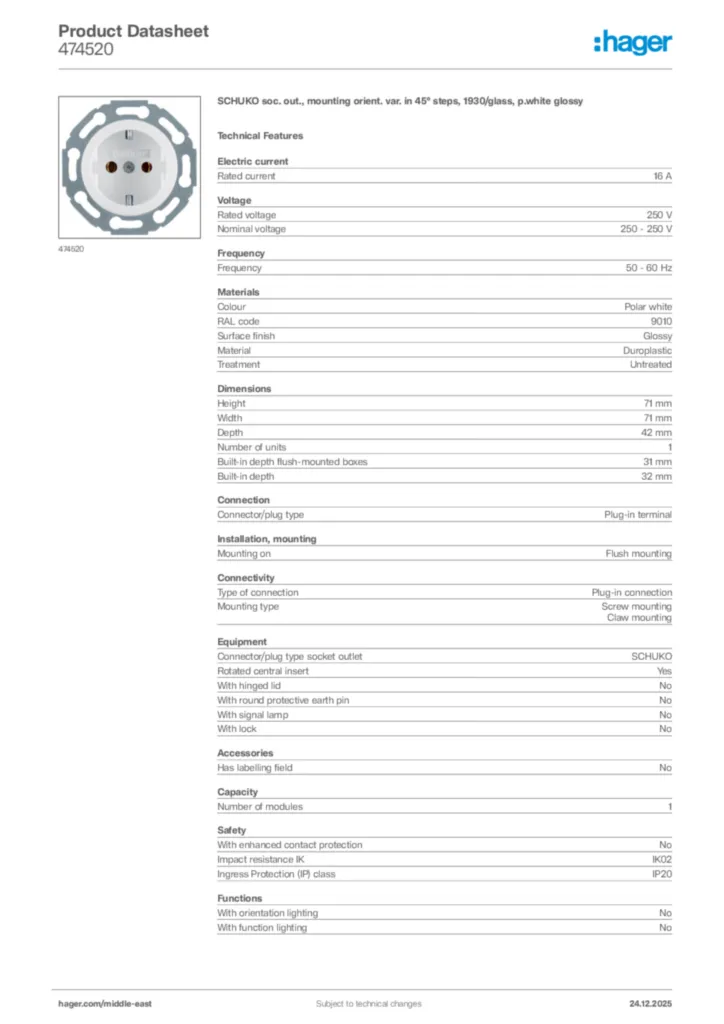

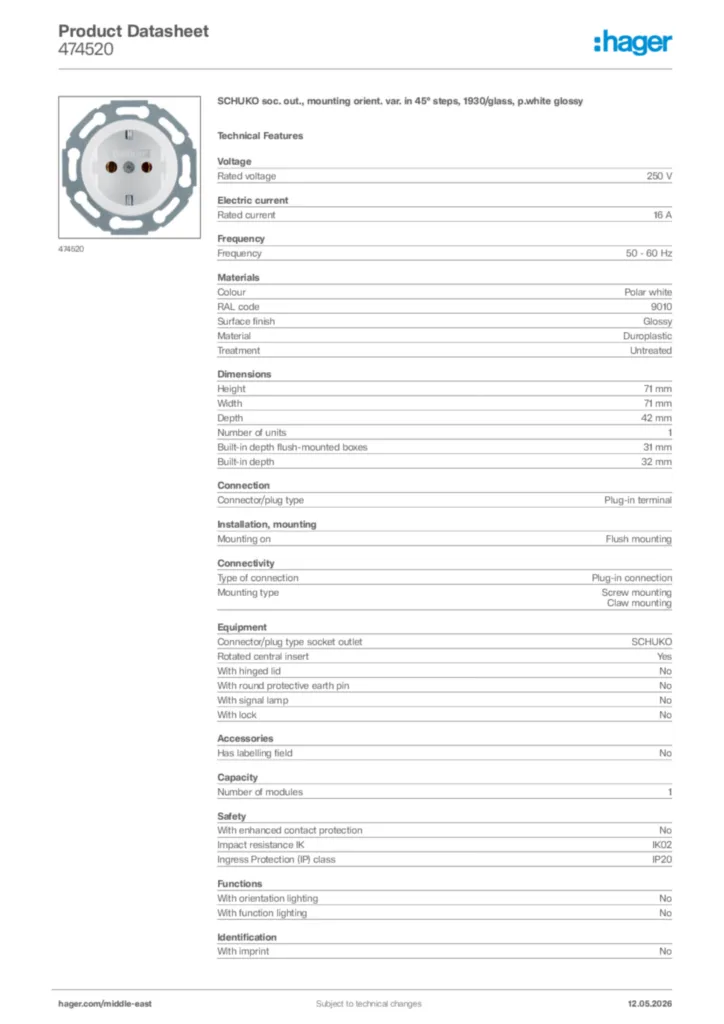

  • Product datasheet

    Image Hager Product data sheet 474520 | Hager

    Hager Product data sheet 474520

    SCHUKO soc. out., mounting orient. var. in 45° steps, 1930/glass, p.white glossy

    PDF

  • Declaration of conformity

    Image Declaration of conformity International 2023-05-02 | Hager

    Declaration of conformity International 2023-05-02

    PDF
    451,70 kB
