SCHUKO soc.out. hinged cover,enhncd contact prot.,var. in 45°step,R.cl 47442089
EAN-Nr.
4011334366751
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
138209
Frame, 1gang for centre plate Ø 58 mm, 1930, p. white glossy
Compatible products
-
Referenced by 166 products available
Referenced by
-
10122216Frame 2gang, R.3, glass black
-
10142289Frame 4gang, R.3, p. white glossy
-
10112245Frame 1gang, R.3, black glossy
-
10122245Frame 2gang, R.3, black glossy
-
10132245Frame 3gang, R.3, black glossy
-
10142245Frame 4gang, R.3, black glossy
-
10112209Frame 1gang, R.3, glass p. white
-
10122209Frame 2gang, R.3, glass p. white
-
10132209Frame 3gang, R.3, glass p. white
-
10142209Frame 4gang, R.3, glass p. white
-
10112216Frame 1gang, R.3, glass black
-
10132274Frame 3gang, R.3, al./p. white
-
10132284Frame 3gang, R.3, al./black
-
10122284Frame 2gang, R.3, al./black
-
10112284Frame 1gang, R.3, al./black
-
10142274Frame 4gang, R.3, al./p. white
-
10112274Frame 1gang, R.3, al./p. white
-
10132216Frame 3gang, R.3, glass black
-
10142216Frame 4gang, R.3, glass black
-
10132289Frame 3gang, R.3, p. white glossy
Technical characteristics
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishGlossy
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth51.50 mm
-
Number of units1
-
Built-in depth flush-mounted boxes31 mm
-
Built-in depth32 mm
Connection
-
Connector/plug typePlug-in terminal
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertYes
-
With hinged lidYes
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Cover, door
-
Type of lidSelf-closing hinged cover
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related SystemsR.x, Serie R.classic
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

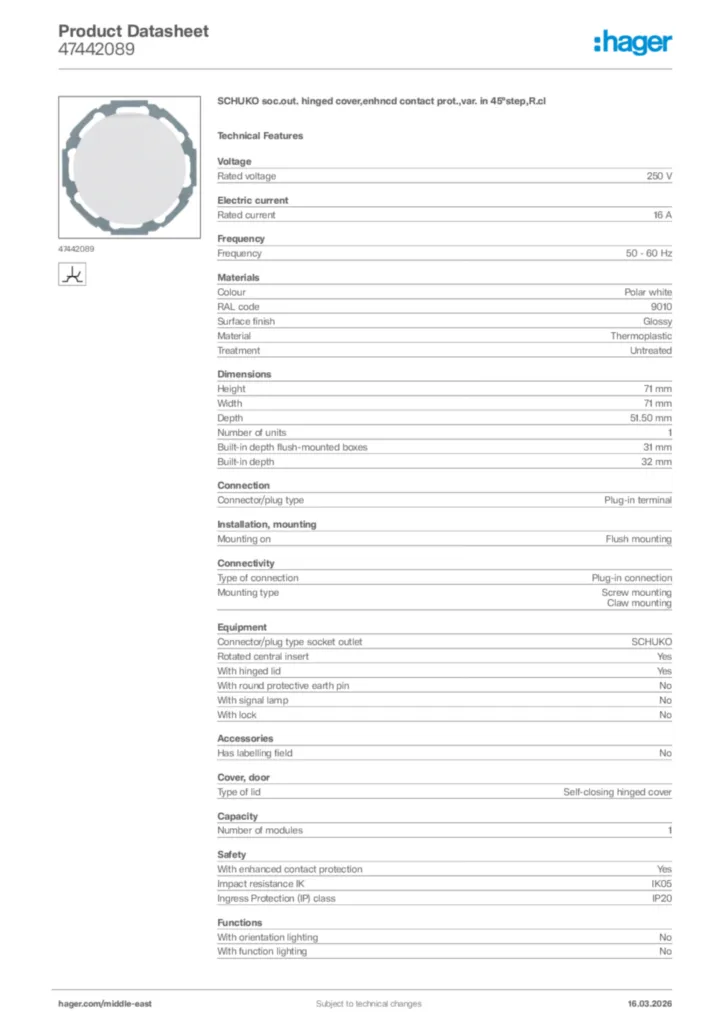

Product datasheet
Hager Product data sheet 47442089
SCHUKO soc.out. hinged cover,enhncd contact prot.,var. in 45°step,R.cl
PDF -
Declaration of conformity
Declaration of conformity International 2023-05-02
PDF451,70 kB
