SCHUKO soc. out. "SV" imprint in green, Q.x, p. white velvety 47436039
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 143 products available
Referenced by
-
10136016Frame 3gang vert., lab. field, Q.1, ant. velvety, lacq.
-
10156079Frame 5gang, glass polarwhite
-
10146079Frame 4gang, glass polarwhite
-
10136079Frame 3gang R.7 glass, polar white
-
10156094Frame 5gang Q.3 alu velvety, lacquered
-
10156096Frame 5gang, Q.3, ant. velvety, lacq.
-
10156099Frame 5gang, Q.3, p. white velvety
-
10256014Frame 5gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10246014Frame 4gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10236014Frame 3gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10226014Frame 2gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10156014Frame 5gang with labelling field vertical Q.1 alu velvety, lacquered
-
10146014Frame 4gang with labelling field vertical Q.1 alu velvety, lacquered
-
10136014Frame 3gang with labelling field vertical Q.1 alu velvety, lacquered
-
10126014Frame 2gang with labelling field vertical Q.1 alu velvety, lacquered
-
10116014Frame 1gang with labelling field Q.1 alu velvety, lacquered
-
10156016Frame 5gang vert., lab. field, Q.1, ant. velvety, lacq.
-
10146016Frame 4gang vert., lab. field, Q.1, ant. velvety, lacq.
-
10126019Frame 2gang vert., lab. field, Q.1, p. white velvety
-
10246019Frame 4gang hor., lab. field, Q.1, p. white velvety
Technical characteristics
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishVelvety
-
MaterialDuroplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Number of units1
-
Built-in depth flush-mounted boxes31 mm
-
Built-in depth32 mm
Connection
-
Connector/plug typePlug-in terminal
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK02
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related SystemsQ.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

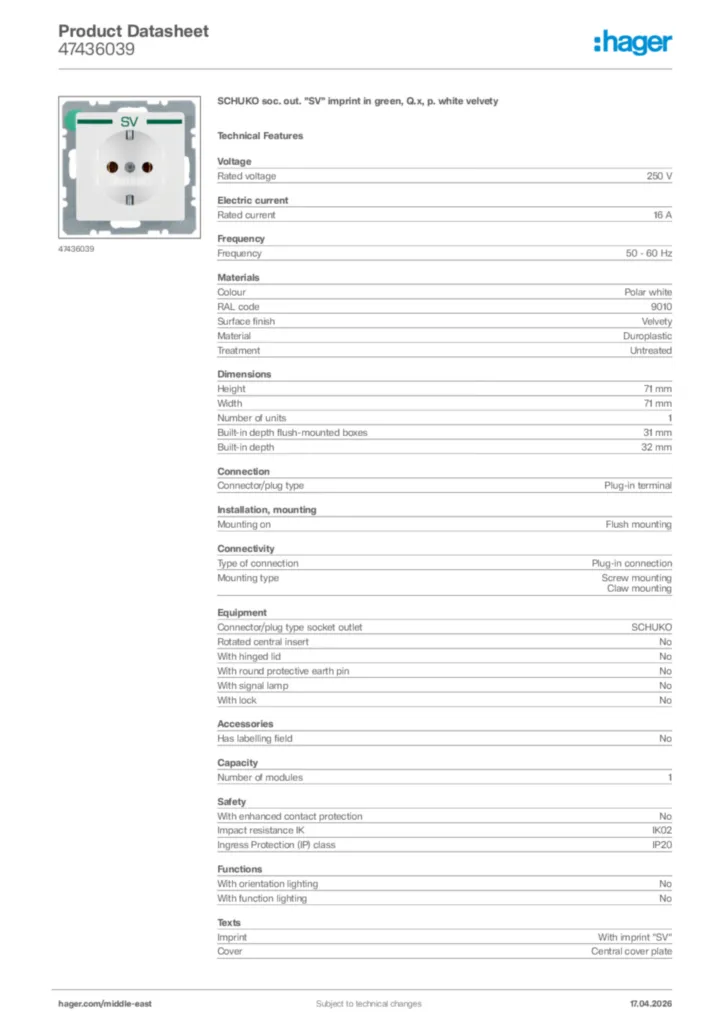

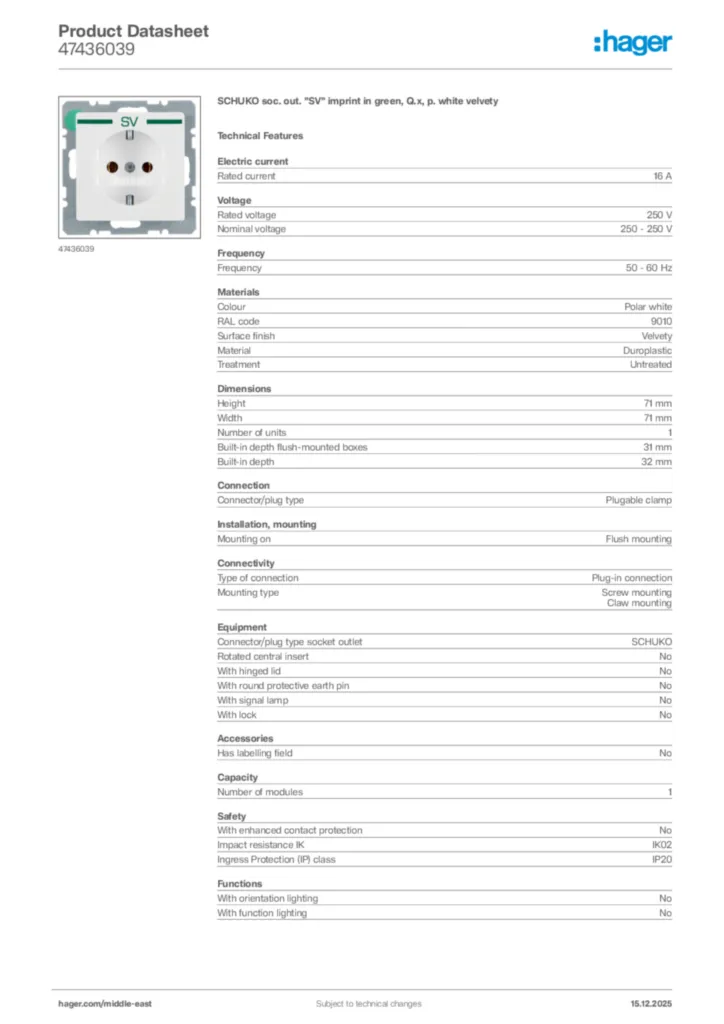

Product datasheet
Hager Product data sheet 47436039
SCHUKO soc. out. "SV" imprint in green, Q.x, p. white velvety
PDF -
Declaration of conformity
Declaration of conformity International 2023-05-02
PDF451,70 kB
