    EAN-Nr.
    4011334312888
    Packaging
    5 Pieces
    • Sockets - Berker Q.1

    Combination SCHUKO soc. out. 2gang frame, Q.x, p. white velvety 47206089

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Combination SCHUKO soc. out. 2gang frame, Q.x, p. white velvety

    47206089

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Voltage
    • Rated voltage
      250 V
    Electric current
    • Rated current
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Materials
    • Colour
      Polar white
    • RAL code
      9010
    • Surface finish
      Velvety
    • Material
      Duroplastic
    • Treatment
      Untreated
    Dimensions
    • Height
      80 mm
    • Number of units
      2
    • Built-in depth
      32 mm
    Connection
    • Connector/plug type
      Plug-in terminal
    Installation, mounting
    • Mounting on
      Flush mounting
    Connectivity
    • Type of connection
      Plug-in connection
    • Mounting type
      Screw mounting, Claw mounting
    Equipment
    • Connector/plug type socket outlet
      SCHUKO
    • Rotated central insert
      No
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    Capacity
    • Number of modules
      2
    Safety
    • With enhanced contact protection
      No
    • Impact resistance IK
      IK02
    • Ingress Protection (IP) class
      IP20
    Functions
    • With orientation lighting
      No
    • With function lighting
      No
    Identification
    • With imprint
      No
    • Related Systems
      Q.x

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes

    Certifications and documents

    Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white
    PDF
    48,73 MB
    Hager REACH declaration 47206089
    PDF
    Hager RoHS report 47206089
    PDF

    Downloads

    • Image 47206089 | Hager

      Product Image 47206089

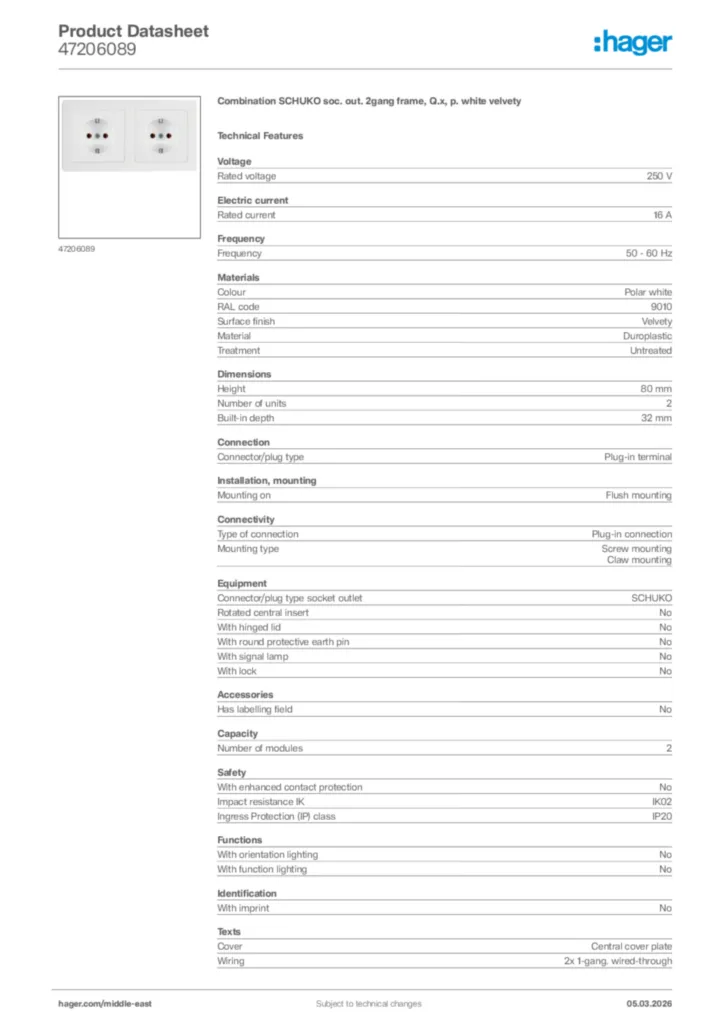

    • Product datasheet

      Image Hager Product data sheet 47206089 | Hager

      Hager Product data sheet 47206089

      Combination SCHUKO soc. out. 2gang frame, Q.x, p. white velvety

      PDF

    • Declaration of conformity

      Image Declaration of conformity International 2023-05-02 | Hager

      Declaration of conformity International 2023-05-02

      PDF
      451,70 kB
