SCHUKO soc.out. residual current circuit-breaker,enhncd contact prot.,K1,ant., 47087006
Login to create a product list
You need to be logged into your myHager account to create product lists
Also available in
Product colour - Anthracite
Anthracite
Stainless steel
Complete your system
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 21 products available
Referenced by
-
13737006Frame 3gang hor., K.1, ant. matt, lacq.
-
13137009Frame 1gang, K.1, p. white glossy
-
13637009Frame 2gang hor., K.1, p. white glossy
-
13537006Frame 5gang vert., K.1, ant. matt, lacq.
-
13437006Frame 4gang vert., K.1, ant. matt, lacq.
-
13337006Frame 3gang vert., K.1, ant. matt, lacq.
-
13937006Frame 5gang hor., K.1, ant. matt, lacq.
-
13837006Frame 4gang hor., K.1, ant. matt, lacq.
-
13097009Frame l. cut-out, K.1, p. white glossy
-
13537009Frame 5gang vert., K.1, p. white glossy
-
13437009Frame 4gang vert., K.1, p. white glossy
-
13337009Frame 3gang vert., K.1, p. white glossy
-
13937009Frame 5gang hor., K.1, p. white glossy
-
13837009Frame 4gang hor., K.1, p. white glossy
-
13737009Frame 3gang hor., K.1, p. white glossy
-
13237006Frame 2gang vert., K.1, ant. matt, lacq.
-
13237009Frame 2gang vert., K.1, p. white glossy
-
13097006Frame l. cut-out, K.1, ant. matt, lacq.
-
13237002Frame 2gang vertical K.1 white, glossy
-
13337002
Frame 3gang vertical K.1 white, glossy
Technical characteristics
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourAnthracite
-
RAL code7021
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentVarnished
Dimensions
-
Height71 mm
-
Width71 mm
-
Number of units1
-
Built-in depth31.90 mm
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
Identification
-
With imprintNo
-
Related SystemsK.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

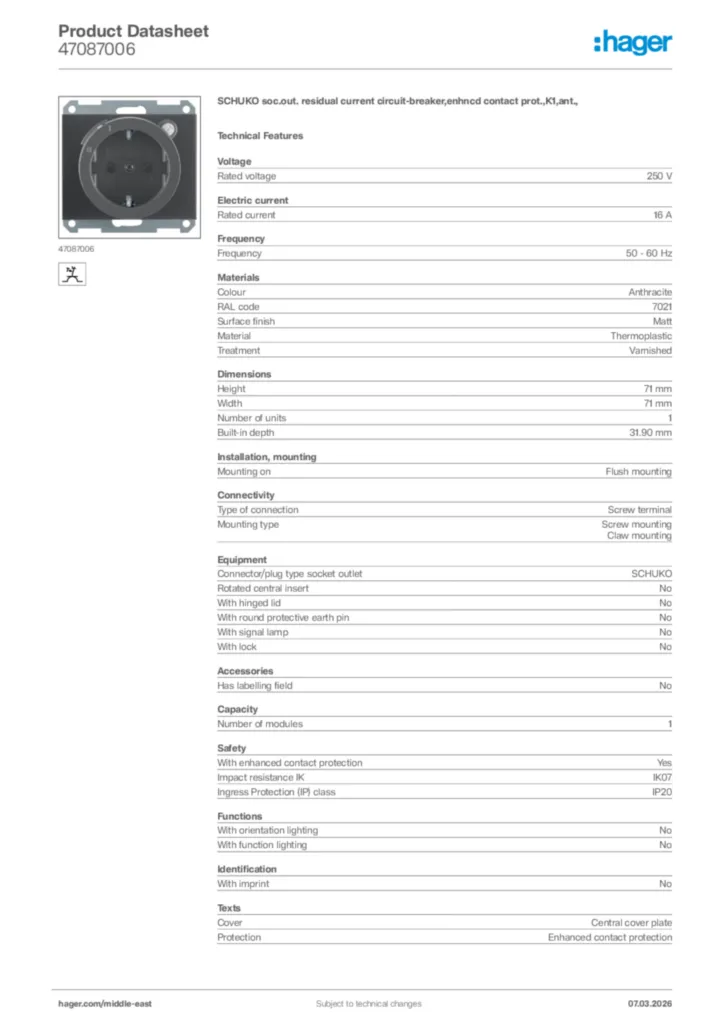

Product datasheet
Hager Product data sheet 47087006
SCHUKO soc.out. residual current circuit-breaker,enhncd contact prot.,K1,ant.,
PDF -
Installation manual
Manual for 4708xx - SCHUKO socket outlet with residual current circuit-breaker (DE-EN-NL, 2021-01)
Installation manual en-GB, de-DE, nl-NL 2010-12-02
PDF789,92 kB
Manual for 4708xx - SCHUKO socket outlet with residual current circuit-breaker (EN, 2010-12)
Installation manual en-GB 2020-01-01
PDF221,68 kB
More documentation
