SCHUKO soc.out. residual current circuit-breaker,enhncd contact prot.,S1/B3/7,wh 47081909
EAN-Nr.
4011334051343
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 174 products available
Referenced by
-
10123025Frame 2gang, B.3, al. black/p. white matt, al. anodised
-
10143001Frame 4gang, B.3, al. brown/ant. matt, al. anodised
-
10133904Frame 3gang, B.3, al./p. white matt, al. anodised
-
10133046Frame 3gang, B.3, al. gold/p. white matt, al. anodised
-
10133025Frame 3gang, B.3, al. black/p. white matt, al. anodised
-
10133016Frame 3gang, B.3, al. gold/ant. matt, al. anodised
-
10133005Frame 3gang, B.3, al. black/ant. matt, al. anodised
-
10133004Frame 3gang, B.3, al./ant. matt, al. anodised
-
10133001Frame 3gang, B.3, al. brown/ant. matt, al. anodised
-
10123904Frame 2gang, B.3, al./p. white matt, al. anodised
-
10123046Frame 2gang, B.3, al. gold/p. white matt, al. anodised
-
10123001Frame 2gang, B.3, al. brown/ant. matt, al. anodised
-
10113005Frame 1gang, B.3, al. black/ant. matt, al. anodised
-
10113016Frame 1gang, B.3, al. gold/ant. matt, al. anodised
-
10113025Frame 1gang, B.3, al. black/p. white matt, al. anodised
-
10113046Frame 1gang, B.3, al. gold/p. white matt, al. anodised
-
10113904Frame 1gang, B.3, al./p. white matt, al. anodised
-
10123005Frame 2gang, B.3, al. black/ant. matt, al. anodised
-
10123021Frame 2gang, B.3, al. brown/p. white matt, al. anodised
-
10123016Frame 2gang, B.3, al. gold/ant. matt, al. anodised
Technical characteristics
Electric current
-
Rated current16 A
Voltage
-
Rated voltage250 V
-
Nominal voltage250 - 250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Number of units1
-
Built-in depth flush-mounted boxes40 mm
-
Built-in depth31.90 mm
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related SystemsS.x/B.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

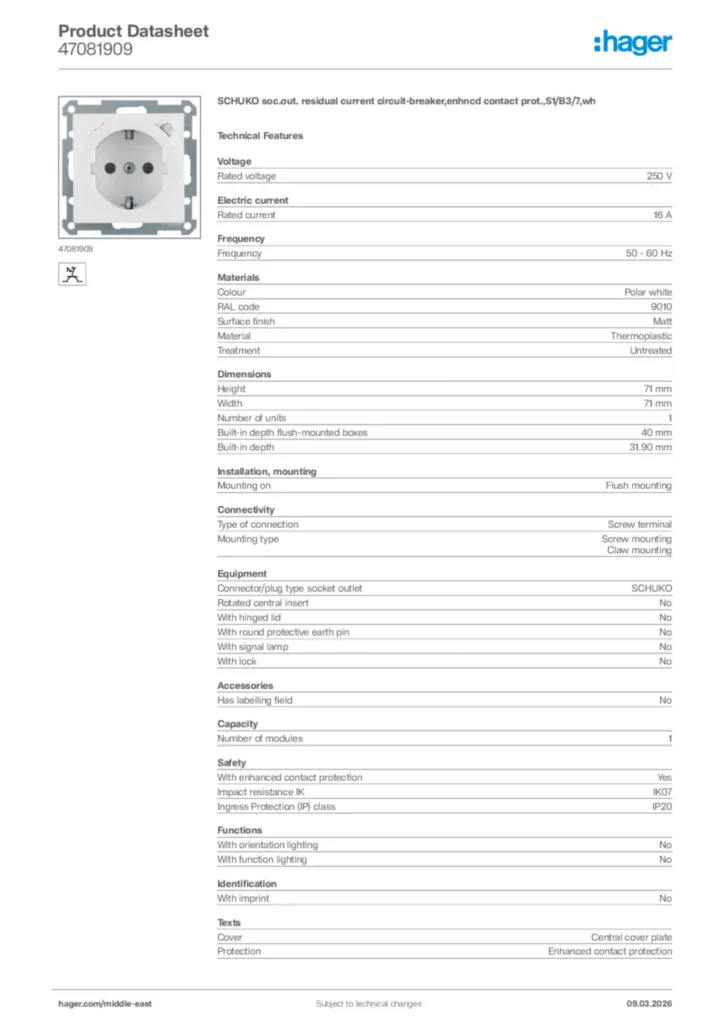

Product datasheet
Hager Product data sheet 47081909
SCHUKO soc.out. residual current circuit-breaker,enhncd contact prot.,S1/B3/7,wh
PDF -
Installation manual
Manual for 4708xx - SCHUKO socket outlet with residual current circuit-breaker (DE-EN-NL, 2021-01)
Installation manual en-GB, de-DE, nl-NL 2010-12-02
PDF789,92 kB
Manual for 4708xx - SCHUKO socket outlet with residual current circuit-breaker (EN, 2010-12)
Installation manual en-GB 2020-01-01
PDF221,68 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-11-04
PDF160,38 kB
