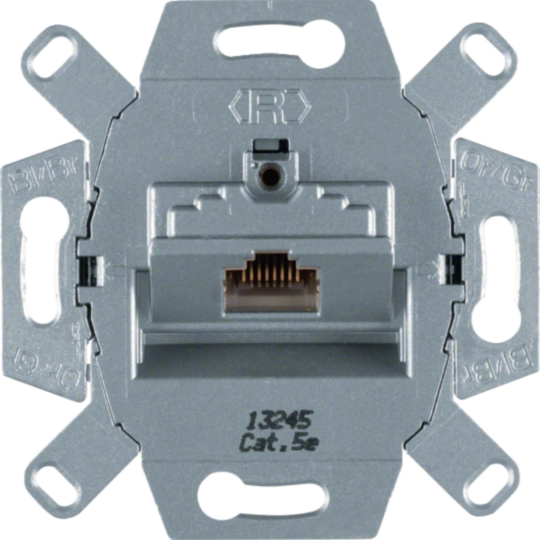

FCC connector box 8pole shielded insert 4554

EAN-Nr.
4011334202684
Packaging
10 Pieces

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
No longer available

FCC connector box 8pole shielded insert

4554

  • Accessories
  • Technical characteristics
  • Documentations
Download the sheet

Complete your system

Must-have accessories

See all (18)
Previous
Previous
14072089
14072089
Centre plate for FCC soc. out., R.1/R.3/R.classic, p. white glossy
Add to a list
Add to a list
14077004
14077004
Centre plate for FCC soc. out., K.5, stainless steel, metal matt finish
Add to a list
Add to a list
14077003
14077003
Centre plate for FCC soc. out., K.5, al., al. anodised
Add to a list
Add to a list
14077006
14077006
Centre plate for FCC soc. out., K.1, ant. matt, lacq.
Add to a list
Add to a list
14077009
14077009
Centre plate for FCC soc. out., K.1, p. white glossy
Add to a list
Add to a list
14076084
14076084
Add to a list
Add to a list

Mandatory accessories

  • 14072089

    Centre plate for FCC soc. out., R.1/R.3/R.classic, p. white glossy

    0.00 €  / *
  • 14077004

    Centre plate for FCC soc. out., K.5, stainless steel, metal matt finish

    0.00 €  / *
  • 14077003

    Centre plate for FCC soc. out., K.5, al., al. anodised

    0.00 €  / *
  • 14077006

    Centre plate for FCC soc. out., K.1, ant. matt, lacq.

    0.00 €  / *
  • 14077009

    Centre plate for FCC soc. out., K.1, p. white glossy

    0.00 €  / *
  • 14076084

    0.00 €  / *
  • 14076086

    Centre plate for FCC soc. out., Q.x, ant. velvety, lacq.

    0.00 €  / *
  • 14076089

    Centre plate for FCC soc. out., Q.x, p. white velvety

    0.00 €  / *
  • 14072045

    Centre plate for FCC soc. out., R.1/R.3/R.classic, black glossy

    0.00 €  / *
  • 14078989

    Centre plate for FCC soc. out., S.1/B.3/B.7, p. white glossy

    0.00 €  / *
  • 146809

    Central plate for FCC soc. out., com-tech, p. white glossy

    0.00 €  / *
  • 146802

    Central plate for FCC soc. out., com-tech, white glossy

    0.00 €  / *
  • 140701

    Centre plate for FCC soc. out., 1930/glass, black glossy

    0.00 €  / *
  • 1407

    Centre plate for FCC soc. out., 1930/glass, p. white glossy

    0.00 €  / *
  • 14078982

    Centre plate for FCC soc. out., S.1, white glossy

    0.00 €  / *
  • 14071404

    Centre plate for FCC soc. out., B.7, al., matt, lacq.

    0.00 €  / *
  • 14071606

    Centre plate for FCC soc. out., B.3/B.7, ant., matt

    0.00 €  / *
  • 14071909

    Centre plate for FCC soc. out., S.1/B.3/B.7, p. white, matt, plastic

    0.00 €  / *

Technical characteristics

Frequency
  • Transmission bandwidth
    100 - 100 MHz
Equipment
  • Number of outputs
    1
Use conditions
  • Operating temperature
    -40 - 70 °C
Safety
  • Ingress Protection (IP) class
    IP20
Voltage
  • Rated voltage
    72 V
Electric current
  • Rated current
    0.50 A
Dimensions
  • Built-in depth
    31 mm
Texts
  • Outlet
    With 45° oblique outlet
  • Voltage
    Suitable for PoE+
  • Installation mode
    For screw fastening, Without spreader claws
  • Protection
    None
  • Supporting plate/supporting ring
    External eyelets on the supporting ring can be broken off for round designs
  • Type of connection
    With LSA + terminals

Downloads

  • Image 4554  | Hager

    Product Image 4554

  • Product datasheet

    Image Hager Product data sheet 4554  | Hager

    Hager Product data sheet 4554

    Product data sheet en-GB 2025-12-22

    PDF
